🔧 Front Window Regulator - Replacement

Your Explorer uses a power window regulator inside each front door. To replace it, you’ll remove the door trim panel, disconnect the glass, then swap the regulator assembly and reassemble the door.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per door

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before working inside the door to avoid accidental window motor movement.
• The door glass is heavy and can drop suddenly. Support it with tape or a helper.
• Be careful with sharp metal edges inside the door shell.
• If your Explorer has side airbags in the door, handle the trim panel gently and keep the ignition off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 7mm socket
• 8mm socket
• 10mm socket
• Ratchet
• Short extension
• Trim panel tool
• Phillips screwdriver
• Flat blade screwdriver
• Torx T20 screwdriver
• Torque wrench
• Painter's tape
• Pick tool
• Flashlight
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1 per door
• Window regulator motor - Qty: 1 per door, if not included with regulator
• Door trim panel clips - Qty: 1 set
• Vapor barrier adhesive or sealant - Qty: 1

---

📋 Before You Begin

• Park on a level surface and fully raise the window if it still works.
• Turn the ignition off and disconnect the negative battery cable.
• Use painter's tape on the outside of the glass to hold it in place.
• Have a helper ready if the glass needs to be supported by hand.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel tool to pry off the trim caps and panel edges.
• Remove the screws with a 7mm socket and Phillips screwdriver.
• Lift the door panel up and away from the door shell.
• Disconnect the electrical connectors and set the panel aside.

Step 2: Peel back the vapor barrier

• Use a flat blade screwdriver or pick tool to carefully separate the vapor barrier adhesive.
• Peel it back slowly so you can reuse it if it stays clean.
• Keep the adhesive as intact as possible.

Step 3: Secure the glass

• Use painter's tape across the top of the door frame to hold the glass up.
• If the glass is already loose, have a helper hold it steady from the top.
• Lower the window slightly only if needed to reach the glass clamps, using the switch briefly before the battery is disconnected if applicable.

Step 4: Disconnect the glass from the regulator

• Use an 8mm socket or 10mm socket to remove the glass clamp fasteners through the access holes.
• Slide the glass upward and secure it with tape.
• Make sure the glass cannot fall before moving to the next step.

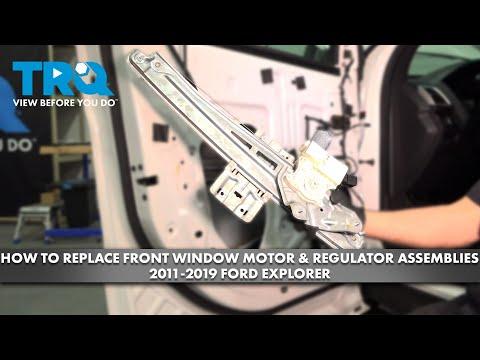

Step 5: Remove the regulator assembly

• Disconnect the window motor electrical connector.
• Use a 10mm socket and ratchet with extension to remove the regulator mounting bolts.
• Remove the regulator and motor assembly through the largest access opening in the door.
• Torque to factory specification on installation.

Step 6: Install the new regulator

• Feed the new regulator assembly into the door opening.
• Install the mounting bolts by hand first, then tighten with a 10mm socket and torque wrench.
• Reconnect the motor connector.
• Torque to factory specification.

Step 7: Reattach the glass

• Lower the taped glass carefully into the regulator clamps.
• Use an 8mm socket or 10mm socket to tighten the glass clamp fasteners.
• Remove the tape only after the glass is firmly secured.
• Torque to factory specification.

Step 8: Test the window

• Reconnect the battery negative cable using a 10mm socket.
• Turn the ignition on and run the window fully up and down.
• Listen for binding, clicking, or uneven movement.
• If the window one-touch feature is lost, perform the relearn procedure by holding the switch in the full-up position for a few seconds, then full-down and full-up again.

Step 9: Reinstall the door panel

• Reattach the vapor barrier with the original adhesive or fresh sealant.
• Reconnect all electrical connectors.
• Align the door panel and press in the clips.
• Install the screws with a 7mm socket and Phillips screwdriver.
• Torque to factory specification.

---

✅ After Repair

• Cycle the window several times to confirm smooth movement.
• Check that the glass seals evenly at the top.
• Make sure the door panel sits flush and no clips are loose.
• If the auto-up or auto-down feature does not work, repeat the window relearn process.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per door (parts + labor)

DIY Cost: $90-$220 per door (parts only)

You Save: $260-$430 per door by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours per door.

---
