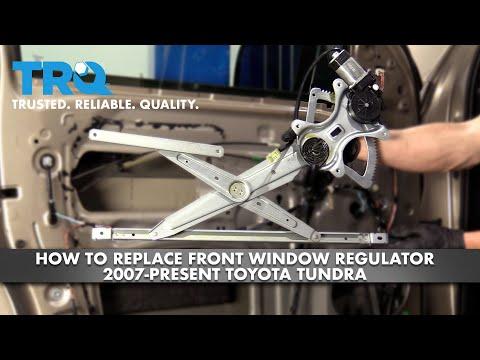

🔧 Front Window Regulator - Replacement

The front window regulator is the mechanism that raises and lowers the glass. If the window is slow, crooked, stuck, or making grinding noises, replacing the regulator usually fixes it. On your Tundra, the door trim and vapor barrier must be removed to access the assembly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before working inside the door. This helps prevent accidental power window operation and reduces risk of short circuits.
• The window glass is heavy. Support it securely before removing the regulator.
• Use care around the side airbag area in the door. Do not probe yellow airbag connectors.
• Keep the ignition OFF while the door is apart.
• If the window glass is loose, tape it in place before removing the regulator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Ratchet
• Short extension
• Trim panel removal tool
• Phillips screwdriver
• Flat-blade screwdriver
• Painter's tape
• Needle-nose pliers
• Torque wrench
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1 per side replaced
• Front door trim panel clips - Qty: 1 set
• Door vapor barrier adhesive or butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Lower the window partway if the motor still works. If not, be ready to support the glass by hand.
• Disconnect the negative battery cable and wait at least 90 seconds before removing the door panel.
• Keep the glass taped before unbolting anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a trim panel removal tool to pry off the switch bezel and any trim covers on the front door panel.
• Use a Phillips screwdriver and 10mm socket to remove the screws securing the door panel.
• Carefully release the door panel clips with the trim panel removal tool.
• Lift the panel upward to unhook it from the top edge of the door.

Step 2: Disconnect the door connectors

• Use your hands to unplug the window switch connector and any courtesy light connectors.
• Set the door panel aside in a safe place.
• Remove the plastic vapor barrier slowly. Use a flat-blade screwdriver only if needed, and do not tear the sheet.

Step 3: Secure the glass

• Use painter's tape to hold the glass fully up against the door frame.
• If the glass has dropped, raise it by hand and tape it firmly in place.
• Tape the glass before removing bolts.

Step 4: Disconnect the glass from the regulator

• Use a 10mm socket or 12mm socket to remove the glass-to-regulator bolts through the access openings in the door inner panel.
• Hold the glass steady while removing the fasteners.
• Once free, keep the glass taped at the top so it cannot fall.

Step 5: Remove the regulator and motor assembly

• Use a 10mm socket and ratchet with a short extension to remove the regulator mounting bolts.
• Disconnect the window motor electrical connector.
• Rotate and maneuver the regulator assembly out through the large service opening in the door.

Step 6: Install the new regulator

• Position the new regulator inside the door using the same opening.
• Start all mounting bolts by hand before tightening.
• Use a 10mm socket to tighten the regulator bolts.
• Torque to 7.5 Nm (66 in-lbs) unless your replacement regulator specifies otherwise.
• Reconnect the window motor electrical connector.

Step 7: Reconnect the glass to the regulator

• Lower or raise the regulator until the glass mounting holes line up with the carrier clamps.
• Remove the tape only when the glass is supported by the regulator.
• Install the glass bolts with a 10mm socket or 12mm socket.
• Torque to 7.5 Nm (66 in-lbs).

Step 8: Test the window before reassembly

• Reconnect the negative battery cable temporarily.
• Use the window switch to run the glass up and down several times.
• Check that the glass moves smoothly and seats evenly at the top.
• If the glass is crooked, stop and recheck the regulator alignment.

Step 9: Reinstall the door panel

• Disconnect the battery again before final assembly.
• Reinstall the vapor barrier using original adhesive or fresh butyl tape.
• Reconnect all electrical connectors.
• Hang the door panel on the top edge and press the clips into place.
• Reinstall the screws with a Phillips screwdriver and 10mm socket.

---

✅ After Repair

• Reconnect the battery and test the window several times.
• Listen for scraping, binding, or clicking noises.
• Make sure the window fully closes and seals against the weatherstrip.
• If the one-touch feature does not work, perform the power window initialization by fully closing and fully opening the window using the switch, then hold the switch in the up position for a few seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
