🔧 ProMaster - Front Window Regulator Replacement

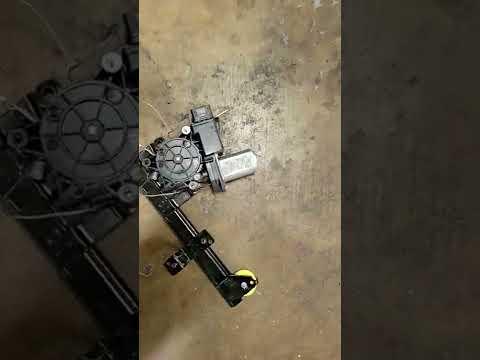

The window regulator is the cable/track assembly that raises and lowers the door glass. Replacing it usually means removing the inner door panel, supporting the glass, unbolting the regulator/motor, then reinstalling and testing for smooth travel.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours (per door)

Assumption: This covers the common ProMaster front regulator-with-motor assembly; fastener sizes/torques can vary slightly by supplier.

---

⚠️ Safety & Precautions

• 🧤 Disconnect the negative battery cable before unplugging door electrical connectors.
• 🪟 Support the glass at all times; it can drop suddenly when the regulator is disconnected.
• ✋ Wear gloves; the door inner skin has sharp edges.
• 🧰 Use jack stands if you raise the van for access, but this job is typically done on the ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 6" extension
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• Phillips #2 screwdriver
• Trim removal tool
• Small pick tool
• Needle-nose pliers
• Painters tape (2 in. wide)
• Razor blade or plastic scraper
• Torque wrench (5–30 Nm range)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (with motor) - Qty: 1
• Door trim panel clip set - Qty: 1
• Vapor barrier butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, key out, and keep the window about halfway down if it still moves.
• Open the door fully and give yourself room to work.
• Disconnect the battery negative cable using a 10mm socket and wait 2 minutes.
• Lay a towel on the door sill to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Remove any visible screws in the pull handle/armrest area using a Torx T25 screwdriver or Torx T30 screwdriver (varies by door).
• Pry up the window switch panel using a trim removal tool, then unplug the switch connectors by releasing the lock tabs with a small pick tool.
• Pop off the inner door handle trim (if equipped) using a trim removal tool, then remove the screw(s) behind it with a Torx T20 screwdriver.
• Starting at the bottom edge, release the panel clips using a trim removal tool (a trim tool is a flat plastic lever that pops clips without cracking panels).
• Lift the panel upward to unhook it from the window ledge, then disconnect any remaining electrical plugs using a small pick tool.

Step 2: Remove the vapor barrier (water shield)

• Peel back the plastic vapor barrier carefully.
• Use a razor blade or plastic scraper to separate the sticky butyl without tearing the plastic.
• Keep it clean so it reseals well.

Step 3: Secure the window glass

• If the glass is still connected to the regulator, plug the window switch back in temporarily and reconnect the battery only long enough to move the glass to where you can access the glass-to-regulator clamp bolts through the door openings.
• Disconnect the battery negative cable again using a 10mm socket.
• Run multiple strips of painters tape (2 in. wide) from the outside of the glass over the top of the door frame to hold the glass up.
• If needed, hold the glass by hand from inside the door while you loosen the clamps.

Step 4: Disconnect the glass from the regulator

• Loosen (do not fully remove unless required) the glass clamp fasteners using a 10mm socket.
• Slide the glass upward fully by hand and re-tape it securely so it cannot drop.
• Torque to 8 Nm (71 in-lbs) when re-tightening the glass clamp fasteners later.

Step 5: Unplug and remove the regulator/motor assembly

• Unplug the window motor electrical connector using a small pick tool to release the lock.
• Remove the regulator and motor fasteners using a 10mm socket and 13mm socket as applicable.
• Support the regulator as the last bolt comes out, then maneuver the assembly out through the large access opening.
• Torque to 9 Nm (80 in-lbs) for regulator/motor mounting fasteners during installation.

Step 6: Install the new regulator

• Feed the new regulator assembly into the door through the access opening.
• Start all mounting bolts by hand first to avoid cross-threading, then tighten using a 10mm socket / 13mm socket.
• Torque to 9 Nm (80 in-lbs).
• Reconnect the motor electrical connector and ensure it clicks into place.

Step 7: Reconnect the glass to the regulator

• Reconnect the battery negative cable using a 10mm socket.
• Plug in the window switch temporarily and run the regulator to align the clamps with the glass.
• Disconnect the battery negative cable again using a 10mm socket once aligned.
• Lower the glass carefully into the clamps, then tighten using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).

Step 8: Function test before reassembly

• Reconnect the battery negative cable using a 10mm socket.
• Plug in the window switch and cycle the window fully down and fully up at least 3 times.
• Listen for cable popping/grinding; the movement should be smooth and the glass should stay level.
• Disconnect the battery negative cable using a 10mm socket before reinstalling the vapor barrier and panel.

Step 9: Reinstall the vapor barrier

• Press the vapor barrier back into place.
• Add vapor barrier butyl tape where the original seal is damaged or no longer sticky.
• A good seal prevents wet carpets.

Step 10: Reinstall the door trim panel

• Reconnect all electrical connectors (switches, locks, speaker) by hand.
• Hang the panel on the upper window ledge, then press the clips in around the perimeter.
• Reinstall screws using a Torx T20 screwdriver / Torx T25 screwdriver / Torx T30 screwdriver as removed.
• Torque to 2 Nm (18 in-lbs) for trim screws (snug, do not overtighten).
• Reconnect the battery negative cable using a 10mm socket.

---

✅ After Repair

• Cycle the window fully up/down 5 times and confirm it seals at the top edge evenly.
• Confirm the door lock, mirror (if equipped), speaker, and window switch all work.
• Check for wind noise or water leaks on the next drive/wash; recheck the vapor barrier seal if needed.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor, per door)

DIY Cost: ₹4,500-₹12,000 (parts only, per door)

You Save: ₹7,500-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,000-₹4,000/hour. This repair takes a shop approximately 2-3 hours.

---
