🔧 Frontier - Front Window Regulator Replacement

Your Frontier’s front window regulator is the scissor/cable mechanism that moves the glass up and down. When it fails, the window may slip, bind, move crooked, or stop working. This job involves removing the inner door panel, supporting the glass, swapping the regulator, and then testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🛑 Disconnect the battery negative terminal before unplugging door wiring (prevents short circuits and accidental airbag/wiring issues).
• 🧤 Wear gloves—door inner metal edges are very sharp.
• 👓 Wear safety glasses—plastic clips can pop free suddenly.
• 🪟 Support the window glass with painter’s tape or a helper before unbolting it (glass can drop and shatter).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" extension for 1/4" ratchet
• Phillips #2 screwdriver
• Flat trim tool
• Door panel clip pliers
• Pick tool
• Torque wrench (in-lb, 20–200 in-lb range)
• Painter’s tape (2" wide)
• Magnetic parts tray
• Work light
• Safety glasses
• Mechanic gloves
• 10mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Driver side) - Qty: 1
• Front window regulator assembly (Passenger side) - Qty: 1
• Door panel retainer clips - Qty: 6-12
• Butyl seal tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key OFF, and keep the window about halfway down if it still moves (gives access to the glass-to-regulator bolts).
• Disconnect the battery using a 10mm wrench (negative terminal first) and wait 2 minutes.
• Set up a work light so you can see inside the door.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel and trim

• Use a flat trim tool to gently pry up the window switch panel.
• Unplug the electrical connectors (press the lock tab with a pick tool if needed). Lock tab = small plastic catch.
• Remove any small trim covers hiding screws using a pick tool.

Step 2: Remove the inner door pull/handle screws

• Remove the screws in the door pull/armrest using a Phillips #2 screwdriver.
• If equipped with a screw behind the inside handle bezel, remove it using a Phillips #2 screwdriver.
• Place all fasteners in a magnetic parts tray.

Step 3: Remove the door panel (door card)

• Use a flat trim tool to start popping the panel clips around the perimeter.
• Use door panel clip pliers to pull stubborn clips straight out. Clip pliers reduce breakage.
• Lift the door panel straight up to unhook it from the top edge by the window.
• Unplug any remaining connectors and set the panel somewhere safe.

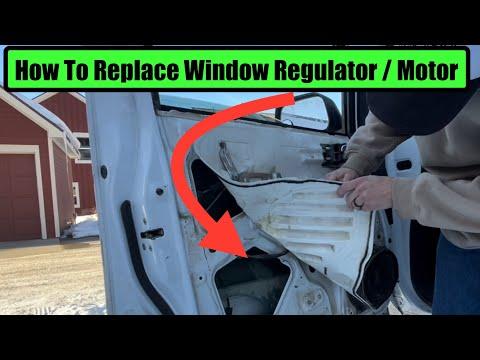

Step 4: Peel back the vapor barrier

• Carefully peel the plastic water shield (vapor barrier) back by hand.
• If the sticky butyl tears or won’t reseal later, plan to replace it with butyl seal tape.

Step 5: Support the window glass

• Raise the glass by hand to the fully-up position (or as high as it will go).
• Use painter’s tape (2" wide) in multiple strips from the outside of the glass over the door frame to hold the glass up.
• Confirm the glass cannot slide down before removing bolts.

Step 6: Disconnect the regulator motor wiring

• Unplug the window motor connector inside the door by hand (use a pick tool to help press the lock tab if needed).

Step 7: Unbolt the glass from the regulator

• Line up the access holes so you can reach the glass-to-regulator bolts.
• Remove the bolts using a 10mm socket, 1/4" ratchet, and 6" extension.
• Torque on install: 7.0 N·m (62 in-lb)

Step 8: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket, 1/4" ratchet, and 6" extension.
• Torque on install: 8.0 N·m (71 in-lb)
• Maneuver the regulator out through the largest door access opening.

Step 9: Transfer the motor (if your new regulator doesn’t include it)

• Remove the motor screws/bolts from the old regulator using a 10mm socket or Phillips #2 screwdriver (varies by part).
• Install the motor onto the new regulator.
• Torque on install: 7.0 N·m (62 in-lb)

Step 10: Install the new regulator

• Slide the new regulator into the door and start all bolts by hand.
• Tighten with a 10mm socket, 1/4" ratchet, and 6" extension.
• Torque to 8.0 N·m (71 in-lb)
• Plug in the motor connector until it clicks.

Step 11: Reattach the glass to the regulator

• Carefully lower the glass (remove some tape as needed) until it lines up with the regulator clamps/holes.
• Install the glass-to-regulator bolts using a 10mm socket and 1/4" ratchet.
• Torque to 7.0 N·m (62 in-lb)
• Remove all painter’s tape (2" wide) after the glass is secured.

Step 12: Quick function test before reassembly

• Reconnect the battery negative terminal using a 10mm wrench.
• Temporarily plug in the window switch and cycle the window up/down while watching the mechanism.
• If the glass tilts or binds, loosen the glass bolts with a 10mm socket, center the glass, then retorque.
• Disconnect the battery again using a 10mm wrench before reinstalling the vapor barrier and panel.

Step 13: Reinstall the vapor barrier

• Press the vapor barrier back into place by hand.
• If needed, apply butyl seal tape to reseal the edges (this prevents water leaks into the cab).

Step 14: Reinstall the door panel

• Reconnect all electrical connectors.
• Hang the door panel on the top edge first, then press the clips in around the perimeter by hand.
• Replace any broken clips with new door panel retainer clips.
• Reinstall screws using a Phillips #2 screwdriver.

Step 15: Reconnect battery and final test

• Reconnect the battery negative terminal using a 10mm wrench.
• Cycle the window fully down and fully up several times and listen for clicking/grinding.

---

✅ After Repair

• Run the window up/down 5–10 times to confirm smooth travel and proper sealing against the weatherstrip.
• Check that the inside handle works and the lock switch and speaker (if equipped) work.
• After the next car wash or rain, confirm no water leaks (a poorly sealed vapor barrier is the #1 cause).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per door)

DIY Cost: $90-$220 (parts only, per door)

You Save: $260-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
