🔧 Altima - Front Window Regulator Replacement

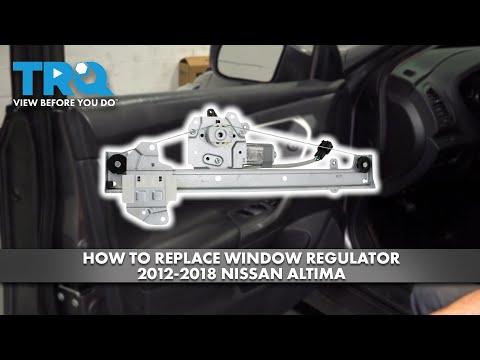

The front window regulator is the mechanism that raises and lowers your window glass. On your Altima, replacing it requires removing the interior door panel, separating the glass from the regulator, and swapping the regulator/motor assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Support the window glass before unbolting it; it can drop suddenly.
• ⚠️ Keep fingers clear of the regulator arms/cables; pinch hazard.
• ⚠️ Disconnect the 12V battery negative cable before unplugging door wiring.
• ⚠️ Protect the side-airbag area in the door; do not probe with test lights.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Flat trim tool
• Plastic panel clip remover
• Pick tool
• Needle-nose pliers
• Torque wrench (5–25 Nm range)
• Painters tape (1.5")
• Razor blade
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door panel clips - Qty: 6-12 (as needed)
• Butyl door vapor-barrier adhesive - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, turn ignition OFF, and open the window if it still moves (about halfway is ideal).
• Disconnect the battery negative cable using a 10mm socket.
• Have painters tape (1.5") ready to hold the glass up in the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which front door you’re doing

• This procedure is the same for left or right front doors, but the parts are side-specific.
• Before you buy parts: are we replacing the front regulator on the driver door or passenger door?

Step 2: Remove the front door switch/trim pieces

• Use a flat trim tool to carefully pry up the window switch panel.
• Unplug the switch connector(s) by lifting the lock tab with a pick tool (a pick is a small pointed tool that helps release clips).
• Pop off any small trim covers near the inner door handle using the flat trim tool.

Step 3: Remove door panel screws

• Remove the visible screws using a Phillips #2 screwdriver.
• Remove any 10mm bolts behind trim covers using a 10mm socket, 10mm ratchet, and 6" socket extension.

Step 4: Remove the door panel

• Use a plastic panel clip remover to pop the perimeter clips free.
• Lift the panel straight up and off the top window ledge.
• Disconnect remaining electrical connectors by releasing tabs with a pick tool.
• Tip: Pull near each clip to avoid cracking the panel.

Step 5: Remove the vapor barrier (plastic sheet)

• Carefully peel the barrier back with your hands.
• If the butyl adhesive is stubborn, use a razor blade gently to separate it.
• Try not to tear it; it keeps water off the electronics.

Step 6: Support and secure the window glass

• Reconnect the window switch temporarily (leave the door panel off) and reconnect the battery only if needed to move the glass into position.
• Position the glass so you can access the two glass-to-regulator fasteners through the door openings.
• Disconnect the battery negative again using the 10mm socket.
• Use painters tape (1.5") to tape the glass to the door frame (run several strips over the top of the door and onto the glass).

Step 7: Unbolt the window glass from the regulator

• Use a 10mm socket and 10mm ratchet to remove the glass clamp/bolt(s) attaching the glass to the regulator.
• Make sure the glass stays taped up and does not slide down.

Step 8: Unplug the window motor and remove the regulator

• Unplug the motor electrical connector using a pick tool to lift the lock tab if needed.
• Remove the regulator/motor mounting bolts using a 10mm socket, 10mm ratchet, and 6" socket extension.
• Carefully maneuver the regulator assembly out through the largest access hole in the door.

Step 9: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners from the old regulator using a 10mm socket.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 7 Nm (62 in-lbs) if using a torque wrench (5–25 Nm range).

Step 10: Install the new regulator assembly

• Slide the new regulator into the door and start all bolts by hand.
• Tighten regulator mounting bolts using a 10mm socket and 10mm ratchet.
• Torque to 9 Nm (80 in-lbs).
• Reconnect the motor connector until it clicks.

Step 11: Reattach the window glass to the regulator

• Carefully remove some tape so the glass can lower slightly into the regulator clamps.
• Install the glass-to-regulator bolt(s) using a 10mm socket.
• Torque to 7 Nm (62 in-lbs).
• Remove the remaining tape once the glass is secured.

Step 12: Reinstall vapor barrier and door panel

• Press the vapor barrier back into the butyl adhesive; add butyl door vapor-barrier adhesive if it won’t stick.
• Reconnect all electrical connectors.
• Hang the door panel on the top ledge and press clips in by hand around the edges.
• Reinstall screws/bolts using a Phillips #2 screwdriver and 10mm socket.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Cycle the window up/down several times and listen for clicking, binding, or cable pop.
• Check for wind noise or water leaks: confirm the vapor barrier is fully sealed all the way around.
• If auto-up/down is not working, perform window initialization: hold the switch to fully lower the window, keep holding 2 seconds; then fully raise it and keep holding 2 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
