🔧 Outlander Sport - Front Window Regulator Replacement

The front window regulator is the cable/track assembly that raises and lowers the door glass. When it breaks, the window may move crooked, slip, grind, or stop working. You’ll remove the inner door panel, support the glass, swap the regulator assembly, then reassemble and reset the window function.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🧤 Disconnect the negative battery cable to prevent shorts while unplugging door wiring.
• 🪟 Support the window glass before unbolting it; falling glass can shatter and cut you.
• 🩹 Wear gloves and safety glasses; the door’s inner metal edges are sharp.
• 🔥 If the window motor was running hot, let it cool before handling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Door panel clip pliers
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Torque wrench (in-lb)
• 10mm wrench
• Work light
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Left or Right, as needed) - Qty: 1
• Front window motor (if not included with regulator) - Qty: 1
• Door panel retaining clips - Qty: 6-12 (as needed)
• Vapor barrier butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, key out, and open the front door fully.
• Lower the window slightly if it still moves (this helps align the glass fasteners with the access holes).
• Use a 10mm wrench to disconnect the battery negative terminal and isolate it so it can’t spring back.
• Trim tools prevent scratches—avoid metal pry tools.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel and trim pieces

• Use a plastic trim removal tool set to gently pry up the window switch panel.
• Unplug the electrical connectors by pressing the lock tabs (use needle-nose pliers only if needed—don’t crush connectors).
• Remove any small trim covers hiding screws using the plastic trim removal tool set.

Step 2: Remove door panel screws

• Remove the screws in the armrest/handle area using a Phillips #2 screwdriver.
• If any fasteners are 10mm bolts, remove them with a 10mm socket, 1/4" ratchet, and 6" socket extension.

Step 3: Remove the door panel (card) from the door

• Use door panel clip pliers to pop the perimeter clips free around the bottom and sides.
• Lift the door panel straight up to unhook it from the top window ledge.
• Unplug any remaining connectors and disconnect the inner door handle cable (note the routing).

Step 4: Peel back the vapor barrier (moisture sheet)

• Carefully peel the plastic vapor barrier back using the plastic trim removal tool set.
• Try not to tear it; you’ll reseal it to prevent water leaks and wind noise.

Step 5: Support the window glass

• If the glass is still attached to the regulator, align the glass clamp bolts with the access holes in the door using the window switch temporarily (reconnect the switch briefly if needed).
• Once aligned, disconnect the switch again and keep the battery disconnected.
• Use painter’s tape (1.5" wide) to tape the glass to the door frame (use multiple vertical strips from outside over the top of the door frame to the inside).
• Use 3–5 strips of tape for safety.

Step 6: Detach the glass from the regulator

• Loosen/remove the glass-to-regulator fasteners using a 10mm socket, 1/4" ratchet, and 6" socket extension.
• Lift the glass fully by hand and re-tape it securely in the fully-up position.

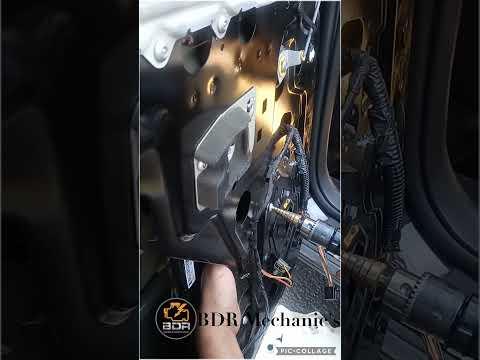

Step 7: Unplug the window motor and remove the regulator assembly

• Unplug the window motor connector (press the lock tab; use needle-nose pliers gently if stuck).
• Remove the regulator/motor mounting bolts using a 10mm socket, 1/4" ratchet, and 6" socket extension.
• Remove the assembly through the largest access opening. Rotate it as needed to clear the door beams.

Step 8: Transfer the motor (only if your new regulator doesn’t include it)

• Hold the motor firmly and remove the motor fasteners using a 10mm socket and 1/4" ratchet.
• Move the motor onto the new regulator and tighten evenly.
• Torque to 35 in-lbs (4.0 Nm) for motor-to-regulator small fasteners.
• Keep fingers away from gear openings.

Step 9: Install the new regulator assembly

• Place the new regulator into the door and start all bolts by hand to avoid cross-threading.
• Tighten the regulator mounting bolts using a 10mm socket, 1/4" ratchet, and then final-tighten with a torque wrench (in-lb).
• Torque to 80 in-lbs (9.0 Nm) for regulator mounting bolts.
• Reconnect the motor electrical connector until it clicks.

Step 10: Reattach the glass to the regulator

• Carefully lower the glass until it sits into the regulator clamps (remove some tape as needed, but keep at least 1-2 strips holding the glass).
• Install/tighten the glass clamp fasteners using a 10mm socket, 1/4" ratchet, then final-tighten with a torque wrench (in-lb).
• Torque to 62 in-lbs (7.0 Nm) for glass clamp fasteners.

Step 11: Quick function test (before reassembly)

• Reconnect the battery negative terminal using a 10mm wrench.
• Plug in the window switch and cycle the window up and down while watching for smooth motion and no cable popping.
• If it binds, stop and re-check that the regulator is seated and bolts are tight.
• Disconnect the battery negative again using the 10mm wrench before reinstalling the vapor barrier and panel.

Step 12: Reinstall vapor barrier and door panel

• Press the vapor barrier back into place. Use vapor barrier butyl seal tape (part) anywhere the original adhesive won’t stick.
• Reconnect all door electrical connectors and the inner handle cable.
• Hang the door panel on the top ledge, then press clips in around the perimeter.
• Reinstall screws using a Phillips #2 screwdriver (and any bolts with a 10mm socket and 1/4" ratchet).

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm wrench.
• Initialize the window (common reset): fully close the window, then hold the switch in the UP position for 2–3 seconds; fully open it and hold DOWN for 2–3 seconds.
• Confirm the window seals evenly at the top and doesn’t tilt forward/back.
• Check for water leaks later: after a car wash/rain, verify the carpet near the door stays dry (vapor barrier sealing matters).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
