🔧 GS - Front Window Regulator Replacement

The front window regulator is the cable-and-track mechanism inside the door that raises/lowers the glass. When it fails, the window may move crooked, get stuck, make crunching noises, or drop into the door.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative terminal before working in the door (side airbag wiring is inside the door).
• ⚠️ Support the window glass with painter’s tape before removing regulator bolts—glass can drop suddenly.
• ⚠️ Keep fingers clear of the regulator scissor/cable path.
• ⚠️ Do not turn the ignition on with the side airbag unplugged (can set an airbag warning light).
• ⚠️ Wear gloves—door inner metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (plastic)
• Phillips #2 screwdriver
• 10mm socket
• 12mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• Torque wrench (5–50 Nm range)
• Painter’s tape (1.5")
• Pick tool
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window motor - Qty: 1 (only if your motor is bad)
• Door panel trim clips - Qty: 6-12 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, ignition OFF, key away from the car.
• Lower the window to about halfway if possible (this aligns the glass bolts with the access holes).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: This covers the typical GS front door regulator (cable regulator). Fastener sizes can vary slightly; match what’s on your door.

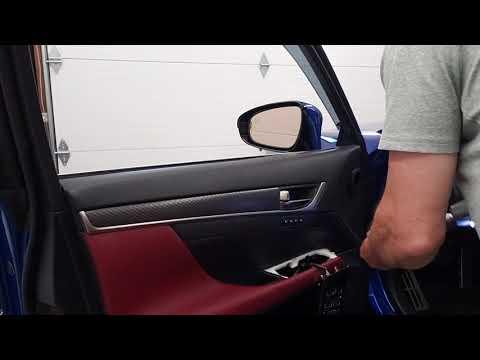

Step 1: Remove the front door trim panel

• Use a trim removal tool set (plastic) to gently pry up the window/lock switch panel.
• Unplug the switch connectors using a pick tool to release the locking tabs (a locking tab is the small clip that prevents the plug from backing out).
• Remove any visible screws behind trim covers using a Phillips #2 screwdriver.
• Remove door pull/handle area fasteners using a 10mm socket (some doors use 10mm here).
• Pop the door panel clips loose around the edges using the trim removal tool set (plastic), then lift the panel straight up to unhook it from the window ledge.
• Disconnect any remaining connectors and set the panel aside on a soft surface.

Step 2: Remove the vapor barrier (water shield)

• Use the trim removal tool set (plastic) to peel the vapor barrier back slowly.
• Try not to tear it—this keeps water off your electronics.
• If the adhesive is messy or won’t stick later, plan to use butyl tape (vapor barrier adhesive) during reassembly.

Step 3: Secure the glass so it can’t fall

• Apply several long strips of painter’s tape (1.5") from the outside of the glass over the door frame and onto the inside of the glass.
• Use enough tape to hold the glass firmly in the fully-up position.

Step 4: Disconnect the window motor/regulator electrical connector

• Locate the regulator/motor connector inside the door.
• Release the lock with a pick tool and unplug it.

Step 5: Unbolt the glass from the regulator

• Through the access holes, locate the two glass-to-regulator clamp bolts.
• Remove them using a 10mm socket.
• Torque on install: Torque to 10 Nm (89 in-lbs)

Step 6: Lift and secure the glass in the full-up position

• Carefully slide the glass upward by hand until fully closed.
• Add more painter’s tape (1.5") if needed so it cannot move.

Step 7: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket and/or 12mm socket (varies by door).
• If the motor is separate, remove its bolts using a 10mm socket and transfer it to the new regulator.
• Torque on install (regulator-to-door bolts): Torque to 8 Nm (71 in-lbs)
• Torque on install (motor-to-regulator bolts): Torque to 5 Nm (44 in-lbs)
• Angle the regulator out through the largest door opening and remove it from the door.

Step 8: Install the new regulator (and motor, if needed)

• Guide the new regulator into the door opening and position it on its mounting points.
• Start all bolts by hand first to avoid cross-threading, then snug using a 10mm socket / 12mm socket.
• Final-tighten with a torque wrench (5–50 Nm range):
• Torque to 8 Nm (71 in-lbs) for regulator mounting bolts.
• If transferring the motor, install it and Torque to 5 Nm (44 in-lbs).
• Reconnect the motor/regulator electrical connector.

Step 9: Reattach the glass to the regulator

• Carefully lower the glass into the regulator clamps (remove some tape as needed but keep control of the glass).
• Install the clamp bolts using a 10mm socket.
• Torque to 10 Nm (89 in-lbs)
• Make sure the glass sits evenly in the clamps.

Step 10: Reinstall the vapor barrier and door panel

• Re-stick the vapor barrier. If it won’t seal, apply butyl tape (vapor barrier adhesive) and press firmly.
• Reconnect all door panel electrical connectors.
• Hang the panel on the top lip first, then press the clips in around the edges.
• Reinstall screws/bolts using a Phillips #2 screwdriver and 10mm socket.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Cycle the window up/down and listen for binding or clicking.
• Check the glass alignment: it should seal evenly at the top and not tilt forward/back.
• Initialize the auto-up/auto-down (common after battery disconnect):
• Turn ignition ON, fully raise the window and keep holding the switch UP for 2–4 seconds.
• Fully lower the window and keep holding the switch DOWN for 2–4 seconds.
• Re-test one-touch up/down and pinch protection.
• If an airbag light appears, the door airbag connector may not be fully seated (do not ignore it).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per front door)

DIY Cost: $120-$350 (parts only, per front door)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
