🔧 Patriot - Front Window Regulator Replacement

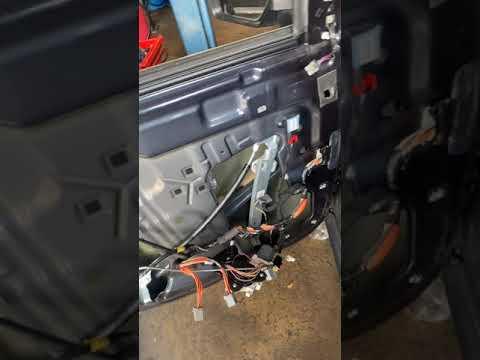

The window regulator is the mechanism that moves the glass up and down. On your Patriot, a failing regulator can cause slow movement, grinding/clicking noises, or a window that drops into the door. This job involves removing the inner door panel, disconnecting the glass, and swapping the regulator/motor assembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the window track and scissor/cable mechanism while testing.
• ⚠️ Wear cut-resistant gloves—door shells have sharp edges.
• ⚠️ Support the glass with tape or a suction cup before unbolting it, or it can drop and shatter.
• ⚠️ Disconnect the negative battery cable if your door has side-impact airbag wiring (prevents accidental airbag fault/trigger).
• ⚠️ Do not turn the ignition on with airbag connectors unplugged; it can set a warning light.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim removal tool set (specialty)
• Phillips screwdriver
• Flat-blade screwdriver
• Torx T20 screwdriver
• Torx T30 screwdriver
• 1/4" drive ratchet
• 3" extension for 1/4" ratchet
• 10mm socket
• 8mm socket
• Pick tool
• Painter’s tape (2" wide)
• Suction cup glass holder (specialty)
• Torque wrench (in-lb or small Nm range)
• Multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (if not included with regulator)
• Door panel trim clip set - Qty: 1 (recommended)
• Butyl door vapor barrier tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, key off, and open the affected front door fully.
• Lower the window until you can access the glass-to-regulator fasteners through the door access holes (if it still moves).
• If equipped with side airbag wiring in the door: use a 10mm socket to disconnect the negative battery cable and wait 2 minutes.
• Place painter’s tape (2" wide) and a towel on the door sill to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door switch panel

• Use a trim removal tool set (specialty) to gently pry up the window/lock switch panel.
• Use a pick tool to lift connector locks, then unplug the electrical connectors.
• Work slowly to avoid snapping clips.

Step 2: Remove screws from the door panel

• Use a Phillips screwdriver or Torx T20 screwdriver (varies by handle trim) to remove the screw(s) behind the interior door handle bezel.
• Use a 8mm socket or 10mm socket (varies) with a 1/4" drive ratchet to remove bolts in the armrest/pull handle area.

Step 3: Release the door panel clips and remove the panel

• Use a trim removal tool set (specialty) to pop the push-clips around the outer edge of the door panel.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug any remaining connectors (courtesy light, speaker, etc.).
• If there’s a cable for the inside door handle: use a flat-blade screwdriver to open the cable retainer and unhook the cable end.

Step 4: Peel back the vapor barrier

• Use a flat-blade screwdriver and your hands to carefully peel the plastic vapor barrier away.
• If the adhesive is messy or won’t reseal, plan to use butyl door vapor barrier tape during reassembly.

Step 5: Support the window glass

• Use a suction cup glass holder (specialty) to hold the glass.
• Add several strips of painter’s tape (2" wide) from the outside of the glass up over the door frame to keep it from sliding down.

Step 6: Disconnect the glass from the regulator

• Align the regulator clamps/bolts with the door access holes (if needed, temporarily plug in the switch and turn key on to jog it, then key off again).
• Use a 10mm socket with a 1/4" drive ratchet and 3" extension for 1/4" ratchet to loosen/remove the glass clamp bolts.
• Once free, slide the glass up by hand and re-secure it with painter’s tape (2" wide).

Step 7: Unplug the window motor and remove the regulator assembly

• Unplug the window motor electrical connector (use a pick tool if the lock tab is stubborn).
• Use a 10mm socket to remove the regulator and motor mounting bolts.
• Carefully maneuver the regulator out through the large access opening.
• Keep it folded; don’t kink cables.

Step 8: If needed, transfer the motor to the new regulator

• If your replacement regulator doesn’t include a motor, use a Torx T30 screwdriver to remove the motor screws from the old regulator.
• Install the motor onto the new regulator and tighten evenly.
• Torque to 6 Nm (53 in-lbs) (small fasteners; do not overtighten).

Step 9: Install the new regulator

• Feed the new regulator into the door and position it on its mounting points.
• Start all bolts by hand, then tighten using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Plug in the motor connector until it clicks.

Step 10: Reattach the glass to the regulator

• Lower the glass carefully into the regulator clamps (use the suction cup glass holder (specialty)).
• Use a 10mm socket to tighten the clamp bolts evenly.
• Torque to 10 Nm (89 in-lbs).
• Remove the painter’s tape (2" wide) and keep the glass supported as you test.

Step 11: Function test before reassembly

• Reconnect the switch panel connectors and set the switch panel in place loosely.
• If battery was disconnected, reconnect it using a 10mm socket.
• Cycle the window fully down and fully up several times.
• If it binds, stop and check regulator alignment and that the glass is seated straight in the clamps.

Step 12: Reinstall vapor barrier and door panel

• Press the vapor barrier back on. Use butyl door vapor barrier tape if it won’t stick.
• Reconnect all electrical connectors and the inside handle cable.
• Hook the door panel onto the window ledge, then press clips in by hand around the perimeter.
• Reinstall armrest/handle fasteners using an 8mm socket or 10mm socket.
• Reinstall trim screws using a Torx T20 screwdriver or Phillips screwdriver.
• Snap the switch panel back in using hand pressure.

---

✅ After Repair

• Verify one-touch up/down (if equipped) and confirm the window seals evenly at the top.
• Check door lock, mirror (if on same panel), and speaker operation.
• Listen for popping/clicking; that usually means a loose bolt or a mis-seated clip.
• If an airbag light turns on after reconnecting everything, it may require a scan tool to clear.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
