🔧 Pilot - Front Window Regulator Replacement

The front window regulator is the cable-and-track mechanism that raises and lowers your window glass. When it fails, the window may move slowly, bind, fall into the door, or stop moving completely. This job involves removing the inner door panel, supporting the glass, swapping the regulator (often with the motor), then reassembling and re-initializing the auto window function.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per front door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before working in the door. The front doors can contain side-impact airbag wiring, and you don’t want an accidental deployment.
• ⚠️ Wait at least 3 minutes after battery disconnect before unplugging connectors in the door.
• ⚠️ Support the window glass securely with tape or wedges so it can’t drop and shatter.
• ⚠️ Keep fingers clear of the regulator rails and cable path during testing.
• ⚠️ Do not tear the vapor barrier (plastic sheet). It prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set (specialty)
• Phillips #2 screwdriver
• Ratchet
• 10mm socket
• Extension, 6-inch
• Torque wrench, 3/8-inch drive
• Pick tool (specialty)
• Painters tape, 2-inch wide
• Plastic razor blade scraper (specialty)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Left (driver) or Right (passenger) - Qty: 1
• Front window motor - Qty: 1 (only if not included with regulator)
• Door panel retainer clips - Qty: 6-10 (replace any that break)
• Vapor barrier butyl seal tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window until the glass-to-regulator bolts are accessible through the door access holes. If the window won’t move, you’ll raise/lower the glass by hand after the regulator is loose.
• Disconnect the battery using a 10mm socket on the negative terminal, then wait 3 minutes.
• Tip: Put screws in labeled cups.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel

• Use a trim removal tool set (specialty) (a plastic pry tool that won’t scratch trim) to carefully pry up the window switch panel.
• Unplug the electrical connectors by pressing the lock tabs (use a pick tool (specialty) if the tab is stubborn).

Step 2: Remove the inner door handle trim and screws

• Use a trim removal tool set (specialty) to pop off the small trim cover(s) near the inner door handle and armrest area.
• Remove the exposed screws using a Phillips #2 screwdriver.

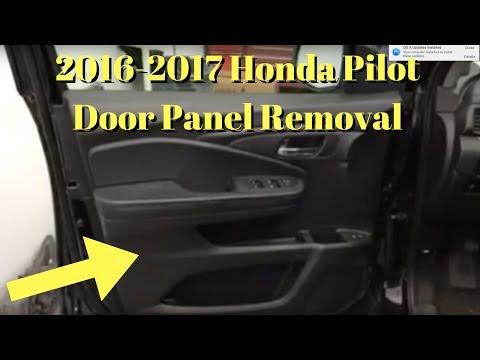

Step 3: Remove the door panel

• Starting at the bottom edge, use the trim removal tool set (specialty) to pop the door panel clips free.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect any remaining connectors (courtesy light, tweeter, etc.).
• If equipped, unclip the inner handle cable(s) from the door handle assembly by hand (note routing for reinstall).

Step 4: Peel back the vapor barrier

• Carefully peel the plastic vapor barrier back using your hands.
• If the butyl (sticky black sealant) fights you, use a plastic razor blade scraper (specialty) gently.
• Tip: Don’t stretch the plastic.

Step 5: Support the window glass

• Use painters tape, 2-inch wide to tape the glass to the door frame from the outside (two to three long strips).
• If needed, add more tape until the glass cannot slide down.

Step 6: Disconnect the window motor and loosen the glass clamps

• Unplug the window motor connector.
• Through the door access holes, remove the glass-to-regulator fasteners using a 10mm socket, extension, 6-inch, and ratchet.
• Torque spec (installation): Torque to 9.8 Nm (7 ft-lbs) (small fasteners—snug, not gorilla-tight).

Step 7: Separate the glass from the regulator

• With the clamps/bolts loosened, lift the window glass fully up by hand.
• Add more painters tape, 2-inch wide to keep it fully up and stable.

Step 8: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket, extension, 6-inch, and ratchet.
• Torque spec (installation): Torque to 9.8 Nm (7 ft-lbs).
• If the motor is separate from the regulator on your part setup, remove the motor screws/bolts and transfer it to the new regulator using the same 10mm socket or Phillips #2 screwdriver as equipped.
• Work the regulator out through the largest access opening. Rotate it as needed—go slowly to avoid bending it.

Step 9: Install the new regulator

• Slide the new regulator into the door cavity the same way the old one came out.
• Hand-start all mounting bolts, then tighten with a 10mm socket and ratchet.
• Finish tightening with a torque wrench, 3/8-inch drive: Torque to 9.8 Nm (7 ft-lbs).

Step 10: Reattach the glass to the regulator

• Lower the glass carefully until it seats into the regulator clamps (remove some tape as needed, but keep control of the glass).
• Install/tighten the glass fasteners using a 10mm socket and ratchet.
• Final tighten with the torque wrench, 3/8-inch drive: Torque to 9.8 Nm (7 ft-lbs).

Step 11: Quick function check (before reassembly)

• Reconnect the window motor connector.
• Reconnect the battery negative terminal using a 10mm socket.
• Turn ignition ON and run the window up/down while watching the regulator for smooth travel.
• Turn ignition OFF and disconnect the battery again using a 10mm socket before finishing reassembly.
• Tip: If it binds, stop immediately.

Step 12: Reinstall the vapor barrier

• Press the vapor barrier back into the sticky butyl.
• If the sealant is damaged or not sticking, apply vapor barrier butyl seal tape and press firmly by hand.

Step 13: Reinstall the door panel

• Reconnect all electrical connectors and any inner handle cable(s).
• Hang the door panel on the top window ledge first, then press the clips in around the edges by hand.
• Reinstall screws using a Phillips #2 screwdriver, then snap trim covers back in.
• Reinstall the switch panel and plug connectors back in until they click.

Step 14: Final battery connection

• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Test the window from the driver master switch and the door switch.
• Initialize the auto-up/auto-down (common Honda step): run the window all the way down and hold the switch down for 2 seconds, then run it all the way up and hold the switch up for 2 seconds.
• Verify the door locks, mirror, and speaker work (you may have unplugged them).
• Listen for clicking or cable popping sounds; if present, stop using the window and recheck glass seating and fasteners.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, per front door)

DIY Cost: $120-$320 (parts only, per front door)

You Save: $330-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
