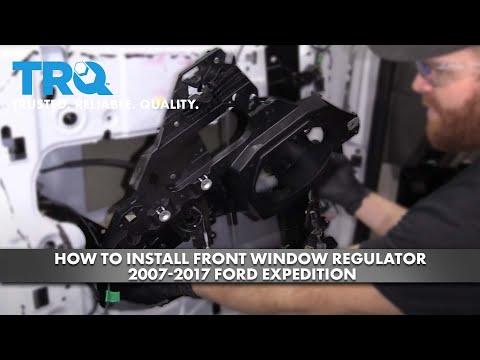

🔧 Expedition - Front Window Regulator Replacement

The front window regulator is the mechanism that moves the glass up and down. When it fails, the window may move slowly, get stuck, tilt, or make grinding/clicking noises. This job involves removing the front door trim panel, securing the glass, swapping the regulator, then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door (front doors may have a side airbag and you don’t want accidental deployment).
• ⚠️ Support the window glass before removing regulator bolts (glass can drop suddenly and shatter).
• ⚠️ Wear gloves and safety glasses (sharp door metal edges are common).
• ⚠️ Keep the key away from the vehicle while the door harness is unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Pick tool
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" socket extension
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 bit
• Torx T27 bit
• Torx T30 bit
• Small flathead screwdriver
• Painters tape 2"
• Razor blade
• Work light
• Torque wrench 5-60 Nm
• Drill with 1/4" drill bit
• Rivet gun (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left or right) - Qty: 1
• Front window regulator motor - Qty: 1 (only if your motor is bad)
• Door panel trim clips - Qty: 6-12 (handy to replace any broken clips)
• Butyl tape (vapor barrier sealant) - Qty: 1
• 1/4" aluminum rivets - Qty: 6-10 (only if your regulator/motor uses rivets)

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and turn the ignition OFF.
• 🔑 Keep the key fob at least 10 feet away.
• 🔋 Disconnect the negative battery cable using a 10mm socket and wait at least 2 minutes.
• 🧰 “Trim removal tool” = a plastic pry tool that helps pop clips without damaging the panel.
• 🧰 “Butyl tape” = sticky rope-like sealant that reseals the plastic water shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door handle/trim covers

• Use a plastic trim removal tool set to gently pry off the small trim covers around the interior door handle and pull handle area.
• Use a pick tool to lift any small caps hiding screws.

Step 2: Remove the door panel screws

• Remove the screws you exposed using a 7mm socket and/or Torx T20 bit (hardware varies by door trim).
• Remove any lower edge screws with a 7mm socket.
• Put screws in cups by location.

Step 3: Pop the door panel clips loose

• Start at the bottom corner.
• Use a plastic trim removal tool set to pry near each clip until it “pops” free.
• Work your way around the sides and bottom.

Step 4: Lift the door panel up and unplug connectors

• Lift the panel straight up to unhook it from the window ledge.
• Unplug the window/lock switch and any courtesy light using a small flathead screwdriver to release connector locks (do not force).
• Unhook the interior door handle cable (note the routing so it goes back the same way).

Step 5: Remove the vapor barrier (water shield)

• Use a razor blade to carefully cut/separate the butyl seal as you peel the plastic back.
• Peel it slowly so you can reuse the barrier without tearing.
• Keep the barrier clean for resealing.

Step 6: Secure the window glass in the up position

• Re-connect the window switch temporarily (leave the door panel off).
• Reconnect the negative cable using a 10mm socket just long enough to move the glass if needed, then disconnect it again.
• Position the glass so you can access the glass-to-regulator clamps through the door openings.
• Tape the glass to the door frame using painters tape 2" (run several strips over the top of the door frame and onto the glass).

Step 7: Loosen the glass-to-regulator clamp fasteners

• Use a 10mm socket to loosen (or remove, depending on design) the clamp bolts that hold the glass to the regulator.
• Once loose, lift the glass fully up by hand and add more painters tape 2" to secure it.
• Torque on reassembly: Torque to 10 Nm (89 in-lbs).

Step 8: Disconnect the regulator motor electrical connector

• Unplug the regulator motor connector using a pick tool to release the tab.
• Use a work light so you can see the lock clearly.

Step 9: Remove the regulator and motor fasteners

• If your regulator is bolted in: remove the fasteners using an 8mm socket and/or 10mm socket.
• If your regulator/motor is riveted in: drill the rivet heads using a drill with 1/4" drill bit, then push the rivet bodies through the door.
• Support the regulator assembly with one hand as the last fastener comes out.
• Torque on reassembly (bolted style): Torque to 10 Nm (89 in-lbs).

Step 10: Remove the regulator assembly from the door

• Angle the regulator and motor through the largest access opening.
• Move slowly to avoid scratching the glass or tearing wiring.

Step 11: Transfer the motor (if required)

• If your new regulator does not include a motor, remove the old motor using a Torx T30 bit (or 8mm socket, depending on motor fasteners).
• Install the motor onto the new regulator and tighten evenly.
• Torque: Torque to 6 Nm (53 in-lbs).

Step 12: Install the new regulator into the door

• Position the regulator in the door and line up the mounting points.
• Install bolts finger-tight using an 8mm socket / 10mm socket, then tighten with a torque wrench 5-60 Nm.
• If riveted style: install new rivets using a rivet gun (specialty) with 1/4" aluminum rivets.

Step 13: Attach the glass to the regulator

• Lower the regulator carrier to the clamp position by temporarily reconnecting the switch, then disconnect the battery again after positioning.
• Remove some tape, carefully lower the glass into the clamps.
• Tighten the clamp bolts using a 10mm socket.
• Torque: Torque to 10 Nm (89 in-lbs).

Step 14: Function test before reassembly

• Reconnect the battery using a 10mm socket.
• Plug in the window switch and run the window fully down and fully up while watching that the glass stays straight.
• If the glass tilts, loosen clamps slightly with a 10mm socket, square the glass, and re-torque.
• Disconnect the battery again before reinstalling the vapor barrier and panel.

Step 15: Reinstall the vapor barrier

• Press the original butyl back into place, or add butyl tape where it no longer sticks well.
• Work all the way around so it seals completely (this prevents water leaks into the cabin).

Step 16: Reinstall the door panel

• Reconnect all electrical connectors and the door handle cable.
• Hang the top of the panel on the window ledge, then push the clips in by hand around the edges.
• Install screws using a 7mm socket and/or Torx T20 bit.
• Torque (trim screws): Torque to 2 Nm (18 in-lbs).

Step 17: Final battery connect

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• ✅ Cycle the window 5-10 times and listen for rubbing, popping, or binding.
• ✅ Check auto-up/auto-down. If it doesn’t work, re-learn the window by holding the switch fully UP for 2-3 seconds after it closes, then fully DOWN for 2-3 seconds after it opens.
• ✅ Confirm the door lock, mirror, speaker, and handle all work.
• ✅ Check for water leaks after the next car wash/rain (vapor barrier seal matters).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $200-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: torque values shown are best-fit for this platform; if your replacement regulator hardware differs, match the fastener size and tighten to spec provided with the part.
