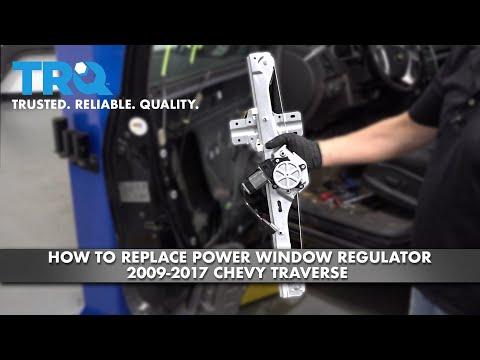

🔧 Traverse - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that raises and lowers the door glass. When it fails, the window may move slowly, get stuck, fall into the door, or make grinding/clicking noises.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per door

Assumption: replacing the regulator assembly (with or without motor), standard LT door trim.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before door work (side airbag wiring runs in the door).
• ⚠️ Support the window glass with tape so it can’t drop and shatter.
• ⚠️ Keep fingers clear of the regulator track and cable while positioning it.
• ⚠️ Use eye protection when removing clips (they can pop free).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Ratchet
• Extension (3-inch)
• 7mm socket
• 10mm socket
• Torx T20 screwdriver
• Torx T30 screwdriver
• Pick tool
• Painters tape (2-inch)
• Small flat screwdriver
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• 12V memory saver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (if not included)
• Door panel retainer clips - Qty: 1 set
• Butyl tape (water shield adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and remove the key/fob from the vehicle.
• If you want to keep radio presets, install a 12V memory saver before battery disconnect.
• Disconnect the negative battery cable using a 10mm socket. Wait 2 minutes before unplugging door connectors.
• Have painters tape (2-inch) ready to hold the glass up.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to carefully pry up the window/lock switch bezel.
• Unplug the switch connector(s) using a pick tool to release the locking tabs (a locking tab is a small plastic catch that must be lifted or pressed to unplug).
• Remove visible door-pull/armrest screws using a 7mm socket (and/or Torx T20 screwdriver depending on panel hardware).
• Use a trim removal tool set to pop the perimeter clips loose, then lift the panel upward to unhook it from the window ledge.
• Disconnect any remaining connectors and the interior handle cable (use a small flat screwdriver to open the cable retainer if needed).

Step 2: Remove the water shield (vapor barrier)

• Peel back the water shield carefully by hand; use a trim removal tool set to help separate the sticky butyl.
• Don’t tear it—water leaks start here.

Step 3: Position and secure the glass

• Temporarily reconnect the window switch connector, reconnect the battery negative with a 10mm socket, and turn ignition ON.
• Run the window until you can see/access the glass-to-regulator clamp/bolts through the door access holes.
• Turn ignition OFF, disconnect the battery negative again using a 10mm socket.
• Apply multiple strips of painters tape (2-inch) from the outside of the glass over the top of the door frame to hold the glass up.

Step 4: Detach the glass from the regulator

• Use a 10mm socket to loosen/remove the glass-to-regulator fasteners (style varies: bolts or clamp screws).
• Carefully slide the glass fully up by hand and re-tape it securely.
• When reinstalling later: Torque to 10 Nm (89 in-lbs).

Step 5: Disconnect the regulator motor electrical connector

• Unplug the window motor connector using a pick tool to release the lock tab.

Step 6: Remove the regulator (and motor if included)

• Support the regulator with one hand while removing fasteners.
• Use a 10mm socket with a ratchet and extension (3-inch) to remove the regulator mounting bolts.
• Carefully maneuver the regulator out through the large door opening.
• When reinstalling later: Torque to 10 Nm (89 in-lbs).

Step 7: If needed, transfer the motor to the new regulator

• If your new part is regulator-only, remove the motor screws from the old regulator using a Torx T30 screwdriver.
• Install the motor onto the new regulator and tighten evenly.
• Keep the gear seated—don’t force the motor.
• When reinstalling: Torque to 3 Nm (27 in-lbs).

Step 8: Install the new regulator

• Position the new regulator into the door cavity the same way the old one came out.
• Start all regulator bolts by hand to avoid cross-threading, then tighten with a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 9: Attach the glass to the regulator

• Remove some tape and lower the glass carefully into the regulator clamp/slots by hand.
• Install/tighten the glass fasteners using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Remove the remaining tape from the glass.

Step 10: Function test before reassembly

• Reconnect the battery negative using a 10mm socket.
• Reconnect the window switch connector and cycle the window fully down and fully up several times.
• Listen for binding/clicking and watch that the glass stays straight in the run channels.
• If the glass tilts, loosen the glass fasteners with a 10mm socket, align, then re-torque to 10 Nm (89 in-lbs).

Step 11: Reinstall the water shield and door trim panel

• Disconnect the battery negative using a 10mm socket before reconnecting everything (safer around door wiring).
• Press the water shield back on. Add butyl tape where needed for a full seal.
• Reconnect the interior handle cable and all electrical connectors.
• Hang the door panel on the top lip, then press clips in around the edges by hand.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Verify: window up/down, auto function (if equipped), door locks, mirror controls, and speaker.
• Check the door water shield seal: run water over the window and confirm no leaks inside.
• If the window has lost express/auto function, cycle the window fully down then fully up a few times to help it relearn.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$320 (parts only)

You Save: $330-$580 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
