🔧 Malibu - Front Window Regulator Replacement

The front window regulator is the mechanism that raises/lowers the door glass. Replacing it typically involves removing the door trim panel, securing the glass, swapping the regulator (and motor if included), then reassembling and testing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator while powered; it can pinch hard.
• ⚠️ Support the glass securely before unbolting it; falling glass can shatter.
• ⚠️ Use safety glasses and cut-resistant gloves around sharp door metal.
• ⚠️ If you disconnect any yellow connectors, stop: yellow wiring typically indicates airbag/SRS circuits.
• 🔋 Recommended: disconnect the negative battery cable before unplugging door electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim/panel clip removal tool
• Plastic pry tool set
• Ratchet
• 3/8" torque wrench (10–60 Nm range)
• 1/4" torque wrench (2–20 Nm range)
• 7mm socket
• 10mm socket
• Torx T20 bit
• Torx T30 bit
• Extension (3"–6")
• Flat-blade screwdriver
• Painter’s tape (1"–2" wide)
• Pick tool
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window motor - Qty: 1 (only if not included with regulator)
• Door trim panel clips - Qty: 1 set (recommended)
• Butyl tape (water shield adhesive) - Qty: 1 (recommended)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window if possible until you can access the glass-to-regulator clamps through the door access holes.
• Disconnect the negative battery cable using a 10mm socket and wait 2 minutes before unplugging door connectors.
• Have painter’s tape ready to hold the glass up in the full-up position.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a plastic pry tool to gently pop off the small trim covers hiding screws (typically at the door pull handle and near the inside door release).
• Remove screws using a 7mm socket and/or Torx T20 bit (varies by position).
• Use a trim/panel clip removal tool to release the panel clips around the edges. Work bottom to top.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug electrical connectors by releasing the locks with a pick tool (a pick tool is a small hook used to lift connector tabs).
• If equipped, disconnect the inside door handle cable by flipping the retainer with a flat-blade screwdriver, then unhook the cable end.

Step 2: Remove the water shield (vapor barrier)

• Carefully peel back the plastic water shield using a plastic pry tool.
• Keep the butyl adhesive clean; you’ll reuse it if it’s still sticky. If it’s messy or won’t reseal, plan to use butyl tape during reassembly.

Step 3: Secure the glass in the up position

• Manually push the glass fully up (if it’s loose) and hold it there.
• Apply multiple long strips of painter’s tape from the outside of the glass over the door frame to support the glass.
• For extra safety, add tape on the inside too. More tape is better.

Step 4: Detach the glass from the regulator

• Locate the glass-to-regulator clamp bolts through the door access holes.
• Use a 10mm socket to loosen/remove the clamp bolts.
• Torque on reassembly: Torque to 10 Nm (89 in-lbs)

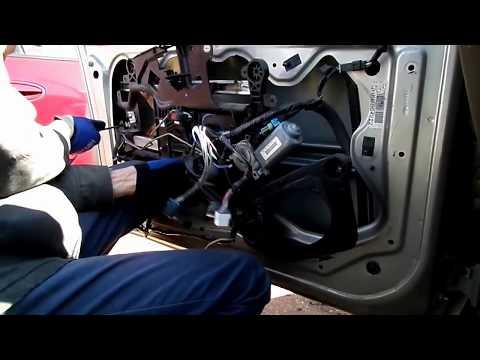

Step 5: Unplug the window motor and remove the regulator assembly

• Unplug the window motor electrical connector (use a pick tool to lift the lock if needed).
• Remove the regulator/motor mounting bolts using a 10mm socket, ratchet, and extension.
• Support the regulator as the last bolts come out, then maneuver it out through the largest door opening.
• Torque on reassembly: Torque to 10 Nm (89 in-lbs)

Step 6: If required, transfer the window motor to the new regulator

• If your replacement regulator does not include a motor, remove the motor from the old regulator using a Torx T30 bit.
• Install the motor onto the new regulator using a Torx T30 bit.
• Torque: Torque to 8 Nm (71 in-lbs)

Step 7: Install the new regulator assembly

• Position the new regulator inside the door and start all bolts by hand to avoid cross-threading.
• Tighten regulator bolts using a 10mm socket and finish with a 3/8" torque wrench.
• Torque: Torque to 10 Nm (89 in-lbs)
• Plug in the window motor connector until it clicks.

Step 8: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly, then carefully align the glass into the regulator clamps.
• Install/tighten the clamp bolts using a 10mm socket.
• Torque: Torque to 10 Nm (89 in-lbs)

Step 9: Quick function test before reassembly

• Reconnect the negative battery cable using a 10mm socket (if you disconnected it).
• Turn ignition ON and test window up/down operation using the switch.
• Listen for clicking or binding; if present, stop and re-check glass alignment.
• Turn ignition OFF and disconnect the negative battery cable again using a 10mm socket before reinstalling the water shield and panel.

Step 10: Reinstall the water shield and door trim panel

• Press the water shield back into place. Add butyl tape if needed to fully seal edges.
• Reconnect all electrical connectors and the inside handle cable.
• Hang the panel on the top window ledge first, then press clips in around the perimeter using your hands.
• Reinstall screws using a 7mm socket and/or Torx T20 bit.
• Torque (trim screws): Torque to 2 Nm (18 in-lbs)

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the window fully down, then fully up, 2–3 times to confirm smooth travel and proper sealing at the top.
• If the auto-up/down feature acts weird, perform a relearn: hold the switch to fully down for 5 seconds, then fully up for 5 seconds.
• Check that the door locks, mirror, speaker, and handle all work.
• Inspect for wind noise or water leaks: the water shield must be fully sealed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours per door.

---
