🔧 LaCrosse - Front Window Regulator Replacement

The front window regulator is the mechanism that moves your window glass up and down. Replacing it typically involves removing the inside door panel, supporting the glass, unbolting the regulator/motor assembly, and reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator arms and cable paths; they can pinch hard.
• ⚠️ Support the window glass securely before unbolting it from the regulator.
• ⚠️ Disconnect the negative battery cable to prevent accidental window movement and reduce risk when unplugging door wiring.
• ⚠️ Do not pull on wiring; unplug connectors by the tabs only.
• ⚠️ If the glass is cracked or loose, wear cut-resistant gloves and safety glasses.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 7mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (inch-pound, 20-200 in-lb range)
• Torque wrench (ft-lb, 10-80 ft-lb range)
• Torx T20 screwdriver
• Torx T30 screwdriver
• Trim removal tool set
• Plastic pry tool
• Pick tool
• Needle-nose pliers
• Painter’s tape (2")
• Work light
• Safety glasses
• Cut-resistant gloves
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator with motor - Qty: 1 (Left or Right, as needed)
• Door trim panel retainer clips - Qty: 6-12 (recommended)
• Water shield butyl tape - Qty: 1 (as needed if the vapor barrier won’t reseal)

---

📋 Before You Begin

• Park on level ground and remove the key from the vehicle.
• Open the window if possible to about halfway; this usually lines up the glass clamps with the service holes.
• Disconnect the negative battery cable using a 10mm socket and wait 2 minutes.
• Have painter’s tape (2") ready to hold the glass up in the door frame.
• Trim tool = plastic wedge for panels.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a plastic pry tool to gently pop up the trim at the door pull/handle area and the switch bezel (work slowly to avoid marring).
• Remove any exposed screws using a 7mm socket and/or Torx T20 screwdriver (locations commonly include the pull handle pocket and behind small covers).
• Use a trim removal tool set to release the door panel clips around the perimeter.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug electrical connectors using a pick tool to release lock tabs (don’t force them).

Step 2: Remove the vapor barrier (water shield)

• Carefully peel back the plastic water shield by hand. If needed, use a plastic pry tool to separate sticky butyl without tearing the plastic.
• Keep the butyl clean; you’ll reuse it if it still sticks well.

Step 3: Support the window glass

• If the regulator still moves, temporarily reconnect the window switch, reconnect the battery just long enough to position the glass, then disconnect the battery again using a 10mm socket.
• Use painter’s tape (2") from the outside of the glass up over the door frame to hold the glass fully up.
• Use 2-3 long tape strips for safety.

Step 4: Detach the glass from the regulator

• Locate the glass-to-regulator clamp/bolts through the door access holes.
• Use a 10mm socket with a 3" extension (1/4" drive) to loosen/remove the clamp bolts.
• Torque to 89 in-lb (10 Nm) on reassembly.
• Once detached, confirm the glass is still securely taped up and cannot slide down.

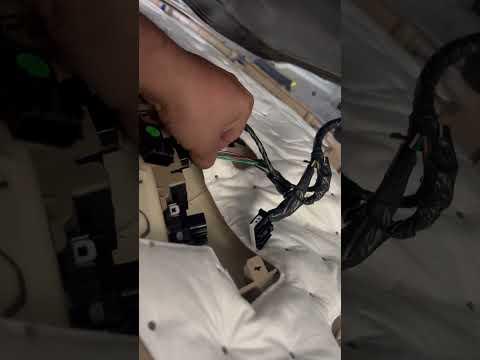

Step 5: Unplug and remove the regulator/motor assembly

• Unplug the window motor connector (release the tab with a pick tool if needed).
• Remove the regulator/motor mounting fasteners using a 10mm socket and 1/4" drive ratchet.
• Torque to 89 in-lb (10 Nm) on reassembly (regulator/motor-to-door fasteners).
• Carefully maneuver the regulator assembly out through the largest access opening in the door.

Step 6: Install the new regulator

• Feed the new regulator into the door in the same orientation as the old one.
• Start all mounting fasteners by hand first, then tighten using a 10mm socket.
• Torque to 89 in-lb (10 Nm).
• Plug in the motor connector until it clicks.

Step 7: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly, then carefully align the glass with the regulator clamps.
• Install/tighten the clamp bolts using a 10mm socket and 3" extension (1/4" drive).
• Torque to 89 in-lb (10 Nm).
• Remove all painter’s tape from the glass and door frame.

Step 8: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Temporarily plug in the window switch and run the window up/down while watching for smooth movement and correct tracking.
• Disconnect the negative battery cable again using a 10mm socket before reinstalling the vapor barrier and panel (safer while handling wiring).

Step 9: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into the butyl seal by hand. If it won’t stick, apply water shield butyl tape as needed.
• Reconnect all door electrical connectors.
• Hang the door panel on the top lip (window ledge), then press clips in around the edges by hand.
• Reinstall screws using a 7mm socket and/or Torx T20 screwdriver.
• Torque to 27 in-lb (3 Nm) for trim/panel screws (snug, do not overtighten).

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Initialize the auto-up/auto-down (if equipped): run the window all the way down, hold the switch down for 2 seconds; run it all the way up, hold the switch up for 2 seconds; repeat once.
• Verify the window seals properly at the top and does not rattle.
• Check that the door lock, mirror, speaker, and handle all work normally.
• If it binds, stop immediately and re-check alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: Your A4—

Assumption: Power front windows with bolt-in regulator/motor assembly (most LaCrosse front doors). If your regulator is riveted, you’ll also need a drill and rivet tool.
