🔧 X3 - Front Window Regulator Replacement

The front window regulator is the lift mechanism that moves the glass up and down inside the door. When it fails, the window may move slowly, drop into the door, tilt, or stop working. You’ll remove the door trim, secure the glass, swap the regulator, then re-initialize the window limits.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours (one door)

Assumption: F25 X3 front door uses Torx/10mm fasteners.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before door work because the door contains an airbag and wiring.
• ⚠️ Wait at least 10 minutes after battery disconnect before unplugging any door connectors.
• ⚠️ Support the window glass at all times; it can drop suddenly and shatter.
• ⚠️ Keep fingers clear of the regulator scissor/cable paths when testing.
• ⚠️ Do not tear the vapor barrier; it prevents water leaks and wind noise.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 8mm socket
• 1/4" ratchet
• 3" extension
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• Trim clip removal tool
• Small flat-blade screwdriver
• Needle-nose pliers
• Painters tape (1.5")
• Torque wrench (2–25 Nm range)
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left or right, as needed) - Qty: 1
• Front door panel trim clips - Qty: 1 set
• Vapor barrier butyl sealant tape - Qty: 1
• Optional: Window regulator motor - Qty: 1

---

📋 Before You Begin

• Park on level ground and remove the key from the vehicle.
• Lower the window slightly if it still moves (this helps access the glass clamps).
• Open the hood and disconnect the negative battery terminal using a 10mm socket.
• Wait 10 minutes so the airbag system powers down.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a small flat-blade screwdriver to gently pry off the small covers hiding screws (typically in the pull handle and near the door release).
• Remove the exposed screws using a Torx T20 screwdriver and Torx T30 screwdriver (varies by screw location).
• Use a trim clip removal tool to pop the panel clips around the edges. Work slowly to avoid breaking clips.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect electrical connectors (window switch, courtesy light, speaker) by releasing the locks with a small flat-blade screwdriver.

Step 2: Remove the vapor barrier (water shield)

• Peel the vapor barrier back carefully by hand. If the butyl is stubborn, use the trim clip removal tool to help separate it.
• Do not stretch or tear it; set it aside where it won’t collect dirt.

Step 3: Secure the window glass

• If the regulator still holds the glass, raise the glass by hand to the full-up position.
• Secure the glass to the door frame using several strips of painters tape (1.5") from the outside over the top of the door and down the inside.
• If the glass has dropped inside the door, lift it up carefully with gloved hands and tape it in place.

Step 4: Access and loosen the glass clamp fasteners

• Find the access holes in the inner door structure where you can reach the glass clamp bolts.
• Use a Torx T25 screwdriver or 10mm socket (varies by build) to loosen the clamp bolts a few turns—do not remove them yet.
• Slide the glass upward slightly so it separates from the regulator clamps, then re-tape the glass securely.
• Torque on reassembly: Torque to 8 Nm (71 in-lbs) for glass clamp bolts.

Step 5: Unplug and remove the window regulator motor (if transferring)

• Unplug the motor connector by releasing the lock with a small flat-blade screwdriver.
• Remove the motor fasteners using a Torx T30 screwdriver.
• Lift the motor straight off the regulator gear.
• Torque on reassembly: Torque to 5 Nm (44 in-lbs) for motor screws.

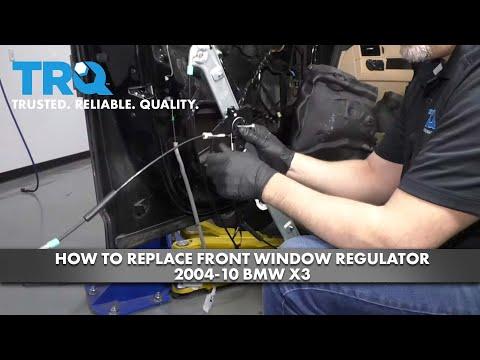

Step 6: Remove the window regulator assembly

• Remove the regulator mounting bolts using an 8mm socket and/or 10mm socket (varies by mounting points).
• Support the regulator as you remove the last bolt so it doesn’t drop.
• Maneuver the regulator out through the largest opening in the door.
• Torque on reassembly: Torque to 8 Nm (71 in-lbs) for regulator mounting bolts.

Step 7: Install the new regulator

• Feed the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand to avoid cross-threading, then tighten with an 8mm socket / 10mm socket.
• Torque: Torque to 8 Nm (71 in-lbs) for regulator mounting bolts.

Step 8: Reinstall motor (if reused) and connect wiring

• Place the motor onto the regulator gear, keeping it flat and aligned.
• Install and tighten motor screws with a Torx T30 screwdriver.
• Torque: Torque to 5 Nm (44 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 9: Attach the glass to the regulator clamps

• Carefully lower the glass into the clamps (remove some tape as needed, but keep one strip for safety).
• Center the glass so it sits evenly in the front and rear run channels.
• Tighten the clamp bolts using a Torx T25 screwdriver or 10mm socket.
• Torque: Torque to 8 Nm (71 in-lbs).

Step 10: Refit the vapor barrier

• Press the vapor barrier back into place, using fresh vapor barrier butyl sealant tape anywhere the original seal is damaged or no longer sticky.
• Make sure the barrier is fully sealed around the edges. Gaps can cause water leaks.

Step 11: Reinstall the door trim panel

• Reconnect all electrical connectors (switch panel, speaker, light).
• Hook the top of the panel onto the window ledge, then press clips in around the edges by hand.
• Reinstall screws using a Torx T20 screwdriver / Torx T30 screwdriver.

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Tighten snugly (do not overtighten the battery clamp).

---

✅ After Repair

• Initialize the window pinch protection (auto up/down): close the door, turn ignition on, then fully raise the window and keep holding the switch up for ~10 seconds.
• Test auto up/down and make sure the glass seals evenly at the top.
• Listen for popping/clicking; that usually means a clip is loose or the glass is not seated in the run channel.
• Check for water leaks after the next car wash/rain (vapor barrier seal is the usual cause).

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,200 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $450-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
