🔧 550i - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that lifts and lowers the door glass. When it fails, the window may drop, move crooked, make grinding/clicking noises, or stop moving. You’ll remove the front door trim panel, secure the glass, swap the regulator, then reinitialize the window limits.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours (per door)

Assumption: This is the F10 front door setup; torque values shown are typical—verify with BMW service info if available.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery: The front doors contain a side airbag. Disconnect the negative battery cable and wait 10 minutes before unplugging door/airbag-related connectors.
• ⚠️ Support the glass: Door glass can drop suddenly once the clamps are loosened. Tape it up securely and handle edges carefully.
• ⚠️ Protect paint/trim: Use plastic trim tools to avoid scratching the door panel and trim pieces.
• ⚠️ Key away from car: Keep the key/fob away so the car doesn’t “wake up” while connectors are unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Torx T20 bit
• Torx T25 bit
• Torx T30 bit
• External Torx E10 socket
• Plastic trim removal tool set
• Pick tool
• Painter’s tape (1.5")
• Small suction cup glass holder (specialty)
• Torque wrench (2–25 Nm range)
• Magnetic parts tray
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Left/Driver) - Qty: 1 (if replacing driver side)
• Front window regulator assembly (Right/Passenger) - Qty: 1 (if replacing passenger side)
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Front door trim panel clips - Qty: 1 set
• Vapor barrier butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition fully off.
• Lower the window slightly if it still moves (about 2–3 inches) to help access the glass clamp area.
• Use a 10mm socket to disconnect the negative battery terminal in the trunk, then wait 10 minutes.
• Set up a clean workspace for screws and clips (a magnetic tray helps).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a plastic trim removal tool set to carefully pry off the trim cover(s) hiding the screws (typically near the interior pull handle and/or trim strip).
• Remove the door panel screws using the correct bit (commonly Torx T20 bit and/or Torx T30 bit).
• Starting at the bottom edge, use the plastic trim removal tool set to pop the door panel clips free.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect electrical connectors using a pick tool as needed (small lock tabs), and disconnect the interior door handle cable.
• Tip: Pull straight out to save clips.

Step 2: Remove/peel back the vapor barrier

• Carefully peel the vapor barrier (foam/plastic shield) back using your hands and a plastic trim removal tool set.
• Try to keep the butyl adhesive intact so it can reseal, but plan on using vapor barrier butyl seal tape if it won’t stick again.
• Tip: Don’t tear it—water leaks happen fast.

Step 3: Secure the glass in the “up” position

• If the glass is not fully up, manually guide it up as far as it will go.
• Apply multiple long strips of painter’s tape (1.5") from the outside of the glass over the door frame and down onto the inside side of the glass to “hang” the glass.
• Use a small suction cup glass holder (specialty) to stabilize the glass while you work.

Step 4: Separate the glass from the regulator

• Locate the glass clamp bolts through the access openings in the door.
• Use a Torx T25 bit (or Torx T30 bit, depending on hardware) to loosen the clamp bolts enough to release the glass.
• Once loose, lift the glass slightly by hand and make sure it’s fully supported by tape.
• Torque on reassembly (typical): Torque to 10 Nm (7 ft-lbs)

Step 5: Remove the regulator (and motor if separate)

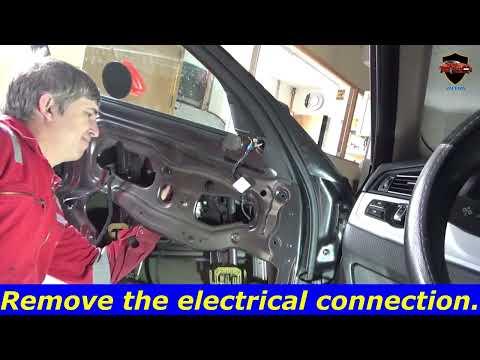

• Disconnect the window motor electrical connector using a pick tool if it has a locking tab.
• Remove the regulator mounting fasteners using an external Torx E10 socket and/or a 10mm socket (hardware varies by build).
• If the motor is separate from the regulator, remove its bolts using the appropriate Torx T20 bit/Torx T25 bit, then transfer it to the new regulator.
• Snake the regulator assembly out through the door opening carefully (watch sharp edges).
• Torque on reassembly (typical regulator bolts): Torque to 8 Nm (6 ft-lbs)

Step 6: Install the new regulator

• Position the new regulator in the door and start all fasteners by hand first.
• Tighten mounting fasteners using an external Torx E10 socket and/or 10mm socket.
• Torque to 8 Nm (6 ft-lbs)
• Reconnect the motor connector firmly until it clicks/locks.

Step 7: Reattach the glass to the regulator

• Lower/position the regulator’s clamp area to meet the glass (you may need to reconnect the battery briefly and use the switch, then disconnect again before final assembly).
• Carefully lower the glass into the clamp.
• Tighten the clamp bolts using a Torx T25 bit or Torx T30 bit.
• Torque to 10 Nm (7 ft-lbs)
• Remove the tape and check the glass sits evenly in the run channels (the vertical felt/rubber guides).

Step 8: Reseal the vapor barrier

• Press the vapor barrier back into place firmly by hand.
• If needed, apply vapor barrier butyl seal tape around the perimeter to restore a full seal.
• Tip: Any gap can cause wet carpets.

Step 9: Reinstall the door trim panel

• Reconnect all electrical connectors and the interior handle cable.
• Hook the top of the door panel over the window ledge, then press the clips in around the edges.
• Reinstall screws using Torx T20 bit/Torx T30 bit.
• Snap trim covers back on using a plastic trim removal tool set (gentle pressure).

Step 10: Reconnect the battery and initialize the window

• Reconnect the negative battery terminal using a 10mm socket.
• Initialize (teach limits): Turn ignition on, fully close the window, then keep holding the window switch in the “up” position for 10–15 seconds.
• Then fully open the window and hold the switch “down” for 10–15 seconds (helps some BMWs relearn both ends).

---

✅ After Repair

• Cycle the window up/down 5–10 times and listen for binding, popping, or cable noise.
• Check one-touch up/down and anti-pinch behavior (stop immediately if it binds).
• Confirm the door handle works from inside and outside.
• Check for water leaks later: after a car wash, inspect the inside lower door edge and carpet area.
• If an airbag/light appears, the car may need a scan tool reset after reconnecting (common if a connector was unplugged with power on).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,250 (parts + labor, per front door)

DIY Cost: $180-$450 (parts only, per front door)

You Save: $470-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
