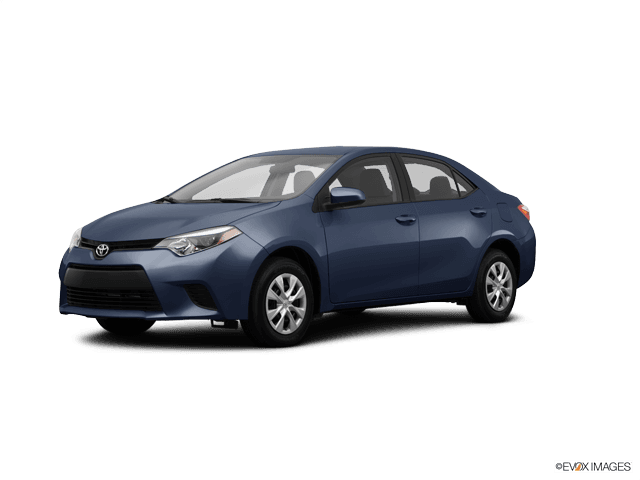

🔧 Corolla - Front Window Regulator Replacement

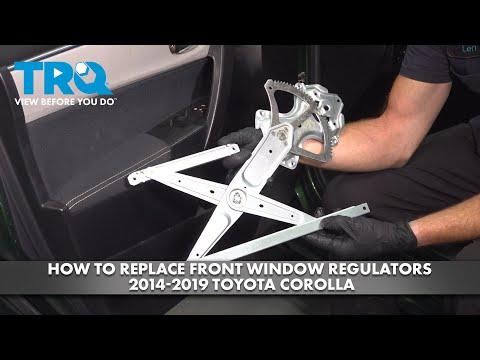

The front window regulator is the cable-and-track mechanism that raises and lowers the glass. Replacement means removing the interior door panel, supporting the glass, unbolting the regulator, and installing a new one, then testing for smooth, quiet operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Assumption: you’re replacing the regulator assembly (with or without motor); steps cover both.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to prevent shorts and accidental airbag/lock issues.
• ⚠️ Support the window glass before removing the regulator—glass can drop suddenly and shatter.
• ⚠️ Keep fingers clear of the scissor/cable path; regulators can pinch hard.
• ⚠️ Don’t tear the vapor barrier (the plastic sheet behind the door panel). It keeps water off electronics and carpet.
• ⚠️ If your door has an airbag connector, do not turn the key on while it’s unplugged.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Panel clip pliers
• Phillips #2 screwdriver
• Flat-blade screwdriver (small)
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Torque wrench (in-lb)
• Painter’s tape (wide)
• Pick tool (small)
• Needle-nose pliers
• Work light/flashlight
• 10mm wrench
• Magnetic parts tray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Left or Right, as needed) - Qty: 1
• Front window motor (only if not included with regulator) - Qty: 1
• Door trim panel retaining clips - Qty: 6-12
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, key off, and open the front door fully for working room.
• Lower the window to about halfway if possible; it helps access the glass-to-regulator clamps/bolts.
• Use a 10mm wrench to disconnect the negative battery cable and isolate it so it can’t spring back.
• Lay a towel over the door sill/paint to prevent scratches.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and door handle trim

• Use a trim removal tool set to gently pry up the window/lock switch panel from the armrest.
• Unplug the electrical connectors by pressing the lock tabs with a pick tool (small) if needed. Don’t yank wires—pull connectors.
• Use a flat-blade screwdriver (small) to pop off any small covers hiding screws near the interior door handle.

Step 2: Remove door panel screws

• Remove the visible screws using a Phillips #2 screwdriver.
• Remove any 10mm bolts (if equipped in your handle/armrest area) using a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive).
• Place hardware in a magnetic parts tray.

Step 3: Pop the door panel clips and lift the panel off

• Start at the bottom edge: use a trim removal tool set to pop the panel clips loose.
• If a clip is stubborn, use panel clip pliers to pull it straight out without breaking it.
• Lift the whole door panel upward to unhook it from the window ledge.
• Disconnect any remaining connectors and the door handle cable (use needle-nose pliers if needed).

Step 4: Peel back the vapor barrier

• Use your hands and a trim removal tool set to slowly peel the plastic vapor barrier back.
• If the butyl adhesive strings, cut it cleanly with a pick tool (small) and save the plastic sheet.
• Use a work light/flashlight to clearly see the regulator, tracks, and glass fasteners.

Step 5: Support the glass

• Run multiple strips of painter’s tape (wide) from the outside of the glass, over the top of the door frame, and down the inside to hold the glass up.
• If the window is stuck down, carefully raise the glass by hand to a safe position before taping.

Step 6: Separate the glass from the regulator

• Locate the glass-to-regulator fasteners through the access holes.
• Use a 10mm socket and 1/4" drive ratchet to remove the bolts/nuts holding the glass to the regulator clamps.
• Once free, push the glass fully up by hand and add more painter’s tape (wide) so it cannot slide down.

Step 7: Unplug the window motor (if separate) and remove the regulator assembly

• Unplug the motor connector using your fingers or a pick tool (small) to release the tab.
• Remove regulator mounting bolts with a 10mm socket, 1/4" drive ratchet, and 3" extension (1/4" drive).
• If the motor is separate from the regulator, remove the motor screws/bolts using a 10mm socket or Phillips #2 screwdriver (varies by part design).
• Maneuver the regulator out through the largest door opening. Rotate slowly—don’t bend the track.

Step 8: Install the new regulator (and motor if needed)

• Place the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a torque wrench (in-lb) to tighten the regulator mounting bolts: Torque to 7.5 Nm (66 in-lb).
• If transferring the motor, install it onto the regulator and tighten fasteners: Torque to 5.5 Nm (49 in-lb).
• Plug the motor connector back in until it clicks.

Step 9: Reattach the glass to the regulator

• Carefully lower the glass down into the regulator clamps (remove some tape as needed, but keep the glass supported).
• Install the glass-to-regulator bolts/nuts using a 10mm socket and 1/4" drive ratchet.
• Tighten with a torque wrench (in-lb): Torque to 7.5 Nm (66 in-lb).
• Remove all painter’s tape (wide) from the glass and door frame.

Step 10: Quick function check before reassembly

• Reconnect the negative battery cable using a 10mm wrench.
• Plug in the window switch temporarily and test the window up/down while watching the regulator through the access hole.
• If the glass tilts or binds, loosen the glass fasteners slightly with a 10mm socket, center the glass in the run channels, then re-torque: Torque to 7.5 Nm (66 in-lb).
• Disconnect the negative battery cable again with a 10mm wrench before final reassembly.

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Add butyl tape where the seal is damaged or no longer sticky.
• Reconnect door handle cable and electrical connectors.
• Hook the top of the door panel onto the window ledge, then press clips in around the edges with your hands.
• Reinstall screws/bolts using a Phillips #2 screwdriver and 10mm socket.

Step 12: Final power-up and window initialization (if needed)

• Reconnect the negative battery cable using a 10mm wrench.
• If the driver auto function acts weird, initialize: hold the window switch fully DOWN for 2 seconds after it reaches bottom, then fully UP for 2 seconds after it reaches top.

---

✅ After Repair

• Run the window up and down 5–10 times and listen for clicking, popping, or cable snapping sounds.
• Check the glass seals evenly at the top when fully closed (no gap at the front or rear).
• Confirm door locks, mirror controls, and speaker work (common to forget a connector).
• If you see water leaks later, reseal the vapor barrier with butyl tape.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per door)

DIY Cost: $80-$220 (parts only, per door)

You Save: $270-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
