🔧 Focus - Front Window Regulator Replacement

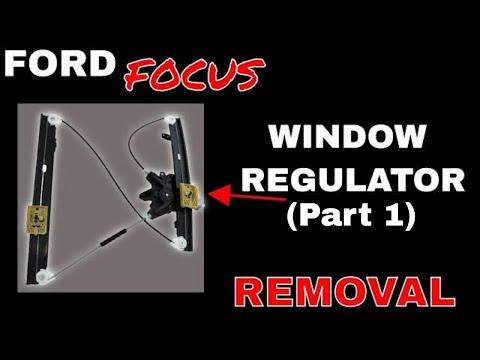

The front window regulator is the cable-and-track assembly that lifts and lowers your front door glass. If the window is stuck, drops into the door, makes grinding/clicking noises, or moves crooked, the regulator is usually worn or broken and needs replacement.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per side)

Assumption: your Focus has power front windows and a complete regulator assembly replacement.

---

⚠️ Safety & Precautions

• ⚠️ Support the glass at all times; it can drop suddenly and shatter.
• ⚠️ Keep fingers clear of the regulator cables and scissor points.
• ⚠️ Disconnect the negative battery cable to prevent accidental window movement.
• ⚠️ Use trim tools to avoid breaking clips and sharp door metal edges.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Plastic trim removal tool set
• Phillips screwdriver
• Flat-blade screwdriver
• 1/4" drive ratchet
• 3/8" drive ratchet
• 7mm socket
• 8mm socket
• 10mm socket
• Torx T20 driver
• Torx T25 driver
• Torx T30 driver
• Extension bar 6"
• Torque wrench (inch-pound or small Nm range)
• Needle-nose pliers
• Painter’s tape 1.5"
• Pick tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front door trim panel clips - Qty: 1 set
• Door water shield butyl tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the ignition off, and remove the key.
• Lower the window to about halfway if it still moves; this lines up the glass clamp bolts with the door access holes.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t touch the post.
• Have a clean area ready for the door panel and screws so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a plastic trim removal tool set (plastic pry tools that pop clips without scratching) to carefully pry off the small trim covers near the inner door pull/handle area.
• Remove visible screws using a 7mm socket and/or Torx T20 driver (screw locations vary by panel, commonly at the pull handle and lower edge).
• Pry around the outer edges of the door panel with the plastic trim removal tool set to pop the retaining clips.
• Lift the door panel straight up and off the window ledge.
• Disconnect electrical connectors (window switch, speaker if attached) using a pick tool to release locks if needed.

Step 2: Remove the water shield (vapor barrier)

• Peel back the water shield slowly by hand; if the butyl is sticky, use a plastic trim removal tool set to help separate it.
• Do not tear it; this keeps rainwater out of the cabin.
• If the butyl won’t reseal later, plan to use door water shield butyl tape during reassembly.

Step 3: Secure the window glass

• If the glass is still in the door, hold it in the “up” position and secure it to the door frame using painter’s tape 1.5" (run several strips over the top of the door frame and onto the glass).
• Use 3–5 strips of tape.

Step 4: Disconnect the glass from the regulator

• Locate the glass-to-regulator clamp bolts through the access holes in the door.
• Use a 10mm socket with a extension bar 6" to loosen the clamp bolts.
• Slide the glass fully up by hand (if needed) and re-secure it with painter’s tape 1.5".
• Torque on reassembly: Torque to 10 Nm (89 in-lbs)

Step 5: Unplug the window motor (if separate connector)

• Find the regulator/motor electrical connector and unplug it by pressing the tab (use needle-nose pliers only if your fingers can’t reach, and be gentle).

Step 6: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket.
• If the motor is bolted separately, remove motor fasteners using a Torx T30 driver and transfer it to the new regulator if your replacement part does not include a motor.
• Carefully maneuver the regulator out through the large door opening (watch the cable ends and sharp edges).
• Torque on reassembly: Torque to 8 Nm (71 in-lbs)

Step 7: Install the new regulator

• Feed the new regulator into the door and align it with the mounting holes.
• Start all bolts by hand first (prevents cross-threading), then tighten using a 10mm socket.
• If transferring the motor, install it using a Torx T30 driver and tighten evenly.
• Torque: Torque regulator bolts to 8 Nm (71 in-lbs)

Step 8: Reconnect the glass to the regulator

• Remove some painter’s tape 1.5" so the glass can slide down carefully into the clamps.
• Align the glass evenly in the clamps (don’t force it).
• Tighten the clamp bolts using a 10mm socket.
• Torque: Torque to 10 Nm (89 in-lbs)

Step 9: Function test (before reassembly)

• Reconnect the window switch connector temporarily.
• Reconnect the battery negative cable using a 10mm socket.
• Cycle the window up and down while watching the glass track for smooth movement (no binding, no tilting).
• If it tilts, stop and re-check the glass seating in the clamps and regulator alignment.
• Disconnect the battery negative cable again using a 10mm socket before reinstalling the water shield and panel.

Step 10: Reinstall the water shield and door panel

• Press the water shield back into the butyl. If needed, apply door water shield butyl tape to reseal the edges.
• Reconnect all electrical connectors.
• Hang the door panel on the top window ledge, then press clips in around the edges.
• Reinstall screws using a 7mm socket and/or Torx T20 driver and snug them down.
• Torque (trim screws): Torque to 2 Nm (18 in-lbs)

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Initialize the power window (if one-touch acts weird): close the window fully, hold the switch UP for 2 seconds; open fully, hold the switch DOWN for 2 seconds.
• Test: window up/down, door lock, mirror (if equipped), and speaker.
• Listen for rubbing or popping; if present, re-check panel clips and that the water shield isn’t touching the regulator.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
