🔧 NX200t - Front Window Regulator Replacement

Your NX200t’s window regulator is the cable-and-track mechanism that moves the glass up and down. Replacing it requires removing the front door panel, supporting the glass, unbolting the regulator, and reinstalling everything in the correct order.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

Assumption: replacing the regulator assembly with motor as a unit.

---

⚠️ Safety & Precautions

• ⚠️ The front doors may contain a side airbag; disconnect the battery to reduce risk of accidental deployment.
• ⚠️ Disconnect the negative battery terminal (10mm) and wait 90 seconds before working in the door.
• ⚠️ Support the window glass before loosening clamps; the glass can drop and shatter.
• ⚠️ Do not tear the water shield (vapor barrier); reseal it to prevent water leaks and speaker issues.
• ⚠️ Keep fingers clear of the regulator tracks and cable drum area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips #2 screwdriver
• Plastic trim removal tool set
• Small pick tool
• Needle-nose pliers
• Painters tape (1.5" wide)
• Torque wrench (5–25 Nm range)
• Magnetic pickup tool
• Work gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Left/Driver) - Qty: 1
• Front window regulator assembly (Right/Passenger) - Qty: 1
• Door panel trim clip set - Qty: 1
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, and keep the key fob at least 10 feet away from the vehicle.
• Lower the window to about halfway if it still moves (this helps access the glass clamp bolts).
• Use a 10mm socket to disconnect the negative battery terminal, then wait 90 seconds.
• Lay a towel on the door sill to protect paint and trim.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel

• Use a plastic trim removal tool to carefully pry up the window switch panel.
• Disconnect the electrical connectors by pressing the lock tabs (use a small pick tool if needed).

Step 2: Remove hidden screws in the door pull/handle area

• Use a small pick tool to pop off the small trim covers inside the pull handle/door handle pocket.
• Remove screws using a Phillips #2 screwdriver (and/or 10mm socket if equipped).

Step 3: Remove the door panel

• Use a plastic trim removal tool to pop the panel clips free around the edges.
• Lift the door panel upward to unhook it from the window ledge.
• Disconnect any remaining connectors and the door handle cable (use needle-nose pliers only if needed).
• Tip: pull near each clip to avoid cracking the panel.

Step 4: Remove the water shield (vapor barrier)

• Carefully peel the vapor barrier back by hand.
• If the adhesive stretches, use butyl tape later to reseal it.

Step 5: Support the window glass

• Use painters tape to secure the glass to the door frame (run 2–3 long strips over the top of the glass and onto the outside of the door frame).
• If the window is stuck up, keep it taped in place before loosening anything.

Step 6: Unbolt the glass from the regulator clamps

• Find the two glass clamp bolts through the door access holes.
• Use a 10mm socket with a 6" extension to loosen and remove the bolts.
• Confirm the glass is fully supported by tape before the last bolt comes out.
• Torque to 8 Nm (71 in-lbs) during reassembly.

Step 7: Disconnect the regulator/motor electrical connector

• Locate the window motor connector on the regulator assembly.
• Press the lock tab and unplug it (use a small pick tool gently if stuck).

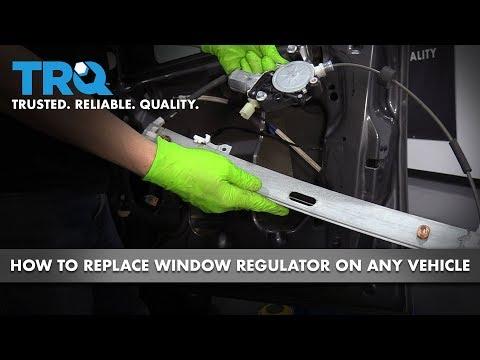

Step 8: Remove the regulator assembly

• Remove the regulator mounting bolts using a 10mm socket and 1/4" ratchet.
• Carefully maneuver the regulator out through the large access opening.
• Torque to 8 Nm (71 in-lbs) during reassembly.
• Tip: keep bolts in a cup so none drop inside.

Step 9: Install the new regulator assembly

• Position the new regulator into the door and start all bolts by hand.
• Tighten regulator bolts evenly using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 10: Reattach the glass to the regulator

• Align the glass with the regulator clamps (move the regulator slightly by hand if needed).
• Install the glass clamp bolts using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).
• Remove the painters tape after bolts are tight.

Step 11: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add butyl tape anywhere it won’t stick.
• Reconnect all door panel connectors and the door handle cable.
• Hang the door panel on the top ledge, then press clips in around the perimeter by hand.
• Reinstall screws using a Phillips #2 screwdriver (and/or 10mm socket if equipped).

Step 12: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Turn ignition ON and test window up/down operation.
• Initialize auto-up/auto-down (common Lexus procedure): hold the window switch DOWN until fully open, keep holding 2 seconds; then hold UP until fully closed, keep holding 2 seconds.
• Confirm the window seals evenly and doesn’t tilt or bind.
• Check for wind noise and water leaks after a short drive/wash.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor, per front door)

DIY Cost: ₹4,000–₹12,000 (parts only, per front door)

You Save: ₹8,000–₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500–₹3,000/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
