🔧 Escape - Front Window Regulator Replacement

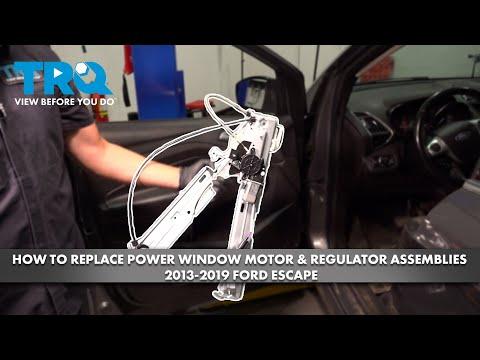

The front window regulator is the lift mechanism inside the door that raises/lowers the glass. On your Escape, replacing it requires removing the interior door panel, securing the glass, then unbolting/drilling out the regulator and installing the new one.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before unplugging door wiring to prevent shorts and accidental window movement.
• ⚠️ Support the window glass with tape before loosening clamps; the glass can drop suddenly.
• ⚠️ Wear safety glasses when drilling factory rivets; metal shards are common.
• ⚠️ Keep fingers clear of the regulator tracks/scissors while testing—pinch hazard.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim/panel removal tool
• Pick tool
• 7mm socket
• 8mm socket
• 10mm socket
• Ratchet (3/8")
• Extension (6")
• Torx T20 driver
• Torx T25 driver
• Torque wrench (in-lb)
• Painter’s tape (2")
• Drill
• 1/4" drill bit
• Rivet gun (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door trim panel retaining clips - Qty: 6-10 (as needed)
• Water shield butyl tape - Qty: 1
• 1/4" aluminum rivets (multi-pack) - Qty: 1 (if your regulator is riveted)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the affected window to about halfway if it still moves (this lines up the glass clamps with the access holes).
• Disconnect the battery negative cable using a 10mm socket and wait 2 minutes.
• Have painter’s tape ready to secure the glass to the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door handle/trim pieces

• Use a trim/panel removal tool to carefully pry off the small trim covers in the interior pull handle and around the door handle area.
• Use a pick tool to lift stubborn edges without gouging the plastic. Work slow to avoid cracking trim.

Step 2: Remove the door panel screws

• Remove the door panel fasteners using a 7mm socket and 8mm socket (locations are typically in the pull handle pocket and along the lower/side edge).
• If a screw uses Torx, remove it with a Torx T20 driver or Torx T25 driver.

Step 3: Release the door panel clips and lift the panel off

• Starting at the bottom corner, slide a trim/panel removal tool between the door panel and the metal door and pop the clips loose one by one.
• Lift the door panel upward to unhook it from the top window channel.

Step 4: Disconnect electrical connectors and the door handle cable

• Unplug the window/lock switch connector(s) and any courtesy light connectors by hand (use a pick tool only to release locking tabs).
• Disconnect the interior door handle cable: rotate the cable housing out of its bracket, then lift the cable end out of the handle.
• Take a quick photo before disconnecting.

Step 5: Remove the water shield (vapor barrier)

• Peel the water shield back slowly by hand.
• If the butyl is very sticky, use a trim/panel removal tool to separate it without tearing.
• Plan to reseal it later using water shield butyl tape.

Step 6: Secure the window glass

• If the glass is still attached to the regulator, temporarily reconnect the window switch, reconnect the battery, and turn ignition ON just long enough to align the glass clamp bolts with the access holes; then ignition OFF and disconnect the battery again using a 10mm socket.
• Use painter’s tape (2") to tape the glass to the top door frame in at least 2 vertical strips.
• This keeps the glass from dropping when you loosen the clamps.

Step 7: Detach the glass from the regulator

• Through the access holes, loosen (do not fully remove) the glass-to-regulator clamp bolts using an 8mm socket.
• Lift the glass up by hand until fully seated at the top, then add more painter’s tape (2") to hold it.
• Torque to 10 Nm (89 in-lb) when re-tightening these clamp bolts later.

Step 8: Unplug and remove the regulator/motor assembly

• Unplug the window motor electrical connector by hand.
• If the regulator is bolted in: remove the regulator/motor bolts using a 10mm socket, then maneuver the assembly out through the large door opening.
• If the regulator is riveted in: drill out the rivet heads using a drill and 1/4" drill bit, then remove the assembly.
• Torque to 8 Nm (71 in-lb) for regulator/motor mounting bolts on installation (if bolted).

Step 9: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners using a 10mm socket or Torx T25 driver (varies by replacement design).
• Install the motor onto the new regulator and tighten evenly.
• Torque to 6 Nm (53 in-lb) for motor-to-regulator fasteners.

Step 10: Install the new regulator

• Position the new regulator into the door cavity.
• If riveted design: install new rivets using a rivet gun (specialty).
• If bolted design: install bolts using a 10mm socket, then Torque to 8 Nm (71 in-lb).
• Reconnect the motor electrical connector by hand until it clicks.

Step 11: Reattach the glass to the regulator and test

• Carefully remove enough painter’s tape (2") to let the glass lower into the clamps.
• Snug the clamp bolts with an 8mm socket, then Torque to 10 Nm (89 in-lb).
• Reconnect the battery negative cable using a 10mm socket.
• Turn ignition ON and run the window up/down while watching the tracks for smooth movement.
• Stop immediately if it tilts or binds.

Step 12: Reinstall the water shield and door panel

• Reseal the water shield using water shield butyl tape.
• Reconnect all door electrical connectors and the handle cable.
• Hang the door panel on the top channel, then press the clips in around the edges by hand.
• Reinstall screws using a 7mm socket, 8mm socket, and/or Torx T20 driver/Torx T25 driver as removed.

---

✅ After Repair

• Initialize one-touch (auto) window: with ignition ON, fully close the window and hold the switch UP for 2 seconds, then fully open and hold the switch DOWN for 2 seconds.
• Verify the window locks/unlocks and mirror/switch functions (if equipped).
• Check the water shield seal all the way around to prevent leaks and wind noise.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$320 (parts only)

You Save: $330-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
