🔧 Corolla - Front Window Regulator Replacement

The window regulator is the lift mechanism inside the door that raises and lowers the glass. When it fails, the window may move crooked, get stuck, grind/click, or drop into the door. Replacement means removing the door panel, securing the glass, swapping the regulator (and sometimes the motor), then testing before reassembly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per front door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the scissor/cable mechanism; it can pinch hard.
• ⚠️ Support the glass with tape before unbolting it, or it can drop and shatter.
• ⚠️ Disconnect the battery negative terminal before unplugging door wiring (prevents shorts and accidental window movement).
• ⚠️ Use eye protection when prying clips; they can pop loose suddenly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Panel clip pliers
• Phillips #2 screwdriver
• Small flat-blade screwdriver
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb)
• Needle-nose pliers
• Painters tape (1"-2" wide)
• Magnetic pickup tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door panel retainer clips - Qty: 6-10 (as needed)
• Vapor barrier butyl tape - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, shift to Park, and turn the ignition OFF.
• Open the door fully and lower the window if it still moves (about halfway is ideal so you can reach the glass clamp bolts).
• Disconnect the battery negative cable using a 10mm socket.
• Set up a clean area for screws and clips so nothing gets lost.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the switch panel and door pull trim

• Use a trim removal tool to carefully pry up the window switch panel.
• Unplug the electrical connectors by pressing the lock tabs (use a small flat-blade screwdriver gently if needed).
• Remove any visible screw(s) in/near the door pull using a Phillips #2 screwdriver.

Step 2: Remove the inner handle bezel and hidden fasteners

• Use a trim removal tool to pop off the inner door handle bezel/trim.
• Remove the screw(s) behind it using a Phillips #2 screwdriver.
• Tip: Work slowly to avoid cracking trim.

Step 3: Remove the door panel (trim panel)

• Use a trim removal tool to pry around the edges of the door panel and release the clips.
• If clips are stubborn, use panel clip pliers to pull them straight out.
• Lift the door panel upward to unhook it from the window sill.
• Disconnect any remaining electrical connectors and the door handle cable (use needle-nose pliers only if needed).

Step 4: Remove the vapor barrier (water shield)

• Peel back the plastic vapor barrier carefully by hand; keep the sticky butyl on the door if possible.
• Use a trim removal tool to help separate it without tearing.
• If the butyl is messy or won’t reseal, plan to use vapor barrier butyl tape during reassembly.

Step 5: Secure the window glass

• If the glass is still in the up position, support it before loosening anything.
• Use painters tape to tape the glass to the door frame (run multiple strips over the top of the door frame).
• This prevents the glass from dropping when you remove the clamp bolts.

Step 6: Unbolt the glass from the regulator

• Look through the large access holes in the door to find the two glass clamp bolts.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension to remove the bolts.
• Carefully lift the glass by hand to the full-up position, then add more painters tape to hold it secure.
• Torque to 66 in-lb (7.5 N·m) when reinstalling the glass clamp bolts.

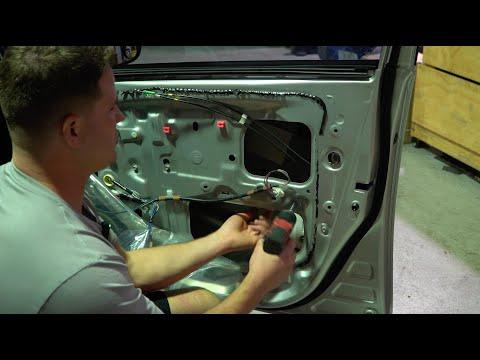

Step 7: Unplug and remove the regulator (and motor if attached)

• Unplug the window motor connector from the regulator/motor using your fingers (use a small flat-blade screwdriver gently on the lock tab if needed).
• Remove the regulator mounting bolts using a 10mm socket and 1/4" drive ratchet.
• Remove the motor mounting bolts (if the motor is separate from the regulator you’re installing) using a 10mm socket.
• Work the regulator assembly out through the access opening; use a work light so you don’t snag cables.
• Torque to 80 in-lb (9.0 N·m) when reinstalling regulator/motor mounting bolts.

Step 8: Transfer the motor (only if your new regulator does not include it)

• Hold the old regulator steady on the floor/bench.
• Remove the motor screws/bolts using a 10mm socket (or the same fastener type you removed).
• Install the motor onto the new regulator and tighten using a torque wrench (in-lb).
• Torque to 80 in-lb (9.0 N·m).

Step 9: Install the new regulator

• Slide the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten using a 10mm socket and torque wrench (in-lb).
• Torque to 80 in-lb (9.0 N·m).

Step 10: Reattach the glass to the regulator

• Carefully lower the glass until it lines up with the regulator clamps.
• Install the two clamp bolts using a 10mm socket and 6" extension.
• Tighten with a torque wrench (in-lb).
• Torque to 66 in-lb (7.5 N·m).

Step 11: Test the window before reassembly

• Reconnect the window switch connector(s).
• Reconnect the battery negative cable using a 10mm socket.
• Turn ignition ON and run the window up/down slowly while watching the regulator through the access hole.
• If it binds or tilts, stop and re-check bolt alignment and that the glass is seated evenly in the run channels.
• Turn ignition OFF and disconnect the battery negative cable again using a 10mm socket before finishing reassembly.

Step 12: Reinstall the vapor barrier and door panel

• Press the vapor barrier back onto the door; add vapor barrier butyl tape if needed to reseal.
• Reconnect all door panel electrical connectors and the door handle cable.
• Hook the top of the door panel onto the window sill and push the clips in around the perimeter.
• Reinstall all screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using hand pressure and a trim removal tool if needed.

Step 13: Final test

• Reconnect the battery negative cable using a 10mm socket.
• Test window operation, door lock switch, and mirror switch (if equipped).
• Listen for clicking/grinding; the movement should be smooth and straight.

---

✅ After Repair

• Cycle the window fully down, then fully up, 2-3 times to confirm smooth travel.
• If the driver window has auto-up/auto-down and it acts “confused,” re-initialize by holding the switch in the UP position for a few seconds after the glass reaches the top.
• Check that the vapor barrier is sealed all the way around (helps prevent water leaks into the cabin).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per front door)

DIY Cost: $90-$250 (parts only, per front door)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
