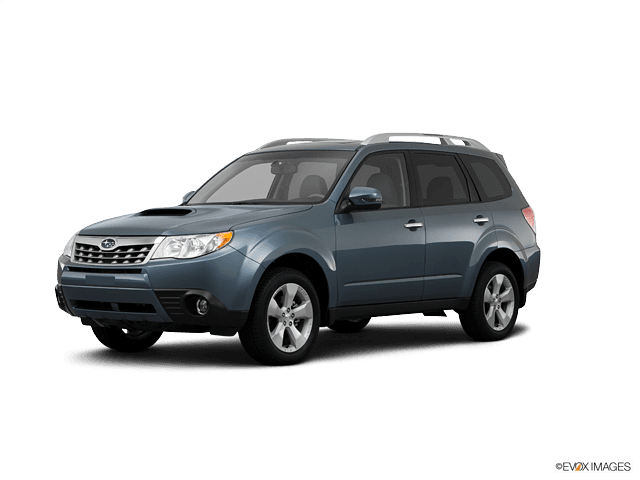

🔧 Forester - Front Window Regulator Replacement

Your Forester’s front window regulator is the cable-and-track assembly that lifts and lowers the window glass. When it fails, the window may slip, grind, move crooked, or stop moving. This job involves removing the door panel, supporting the glass, swapping the regulator, then re-initializing the auto window function.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours (per front door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the regulator while powered; it can pinch hard.
• ⚠️ Disconnect the negative battery cable to prevent accidental window movement and to reduce airbag/SRS risk while working in the door.
• ⚠️ Support the glass securely with tape or suction cups; dropping glass can shatter it.
• ⚠️ Do not peel the vapor barrier off roughly; it must reseal to prevent water leaks and corrosion.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic’s gloves
• Trim removal tool set
• Panel clip pliers
• Phillips screwdriver #2
• Flat-blade screwdriver (small)
• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Torque wrench (inch-pound or low-range Nm)
• Painters tape (1" or wider)
• Window suction cups (pair) (specialty)
• Pick tool (small)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1 (per door)
• Front window regulator motor - Qty: 1 (only if not reusing your old motor)
• Door panel trim clips - Qty: 6–12 (as needed)
• Vapor barrier butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground, ignition OFF, and open the front door you’re working on fully.
• Lower the window to about halfway if it still moves (this gives best access to the glass clamp bolts).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and tuck it aside.
• Have painters tape ready to hold the glass up once it’s free.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel

• Use a trim removal tool set to gently pry up the power window switch panel.
• Disconnect the electrical connector(s) by pressing the lock tab with a pick tool (small), then pull straight out.
• Work slow to avoid cracking the bezel.

Step 2: Remove the interior door handle trim and screws

• Use a trim removal tool set to pop off the small trim cover behind/around the interior handle area (where the hidden screw lives).
• Remove the door pull/armrest screws using a Phillips screwdriver #2.

Step 3: Remove the door panel (door card)

• Start at the bottom edge: use a trim removal tool set and panel clip pliers to pop the clips free.
• Lift the panel straight upward to unhook it from the top window channel.
• Disconnect any remaining connectors (courtesy light, etc.) using a pick tool (small) if needed.

Step 4: Peel back the vapor barrier carefully

• Use your fingers and a trim removal tool set to peel the plastic vapor barrier back slowly.
• If the butyl (sticky seal) strings out, keep it clean; you’ll reseal it later (or replace with vapor barrier butyl seal tape).

Step 5: Free the window glass from the regulator

• If the window is stuck up, skip to Step 6 and remove the regulator first (you may need to power the motor briefly before battery disconnect on a stuck window).
• Locate the two glass clamp bolts through the service holes.
• Use a 10mm socket with a 1/4" ratchet to loosen and remove the glass clamp bolts.
• Lift the glass fully up by hand, then secure it to the door frame using painters tape (run several strips over the top) or hold it with window suction cups (pair) (specialty).
• On reassembly: glass clamp bolts Torque to 7.5 Nm (66 in-lbs).

Step 6: Disconnect the regulator motor connector

• Unplug the motor connector using a pick tool (small) to release the lock tab if it’s tight.

Step 7: Remove the regulator (and motor if replaced as an assembly)

• Remove the regulator mounting bolts using a 10mm socket and a 3/8" ratchet with a 3" extension.
• If there are guide rail bolts/nuts, remove them with the 10mm socket as well.
• Carefully collapse/rotate the regulator and remove it through the large access opening.
• On reassembly: regulator mounting bolts Torque to 7.5 Nm (66 in-lbs).

Step 8: If reusing your motor, transfer it to the new regulator

• Place the old and new regulator on a bench.
• Remove the motor screws/bolts using the appropriate driver (commonly 10mm socket or Phillips screwdriver #2 depending on regulator design).
• Install the motor onto the new regulator and tighten fasteners evenly.
• Motor fasteners: Torque to 5.5 Nm (49 in-lbs).
• Keep fingers away from the cable drum.

Step 9: Install the new regulator into the door

• Feed the new regulator into the door opening in the same orientation the old one came out.
• Start all bolts by hand first (prevents cross-threading).
• Tighten with a 10mm socket, then finish with a torque wrench: Torque to 7.5 Nm (66 in-lbs).
• Reconnect the motor electrical connector until it clicks.

Step 10: Reattach the glass to the regulator

• Remove some tape so you can lower the glass carefully into the clamp area.
• Align the glass in the clamps and install the clamp bolts using a 10mm socket.
• Tighten evenly, then use a torque wrench: Torque to 7.5 Nm (66 in-lbs).

Step 11: Quick functional test (before sealing and panel install)

• Reconnect the negative battery cable using a 10mm socket.
• Turn ignition ON and run the window up/down while watching the regulator and glass alignment.
• If the glass tilts or binds, turn ignition OFF, disconnect battery again with the 10mm socket, and re-check glass seating and regulator bolts.

Step 12: Reseal the vapor barrier

• Press the vapor barrier back into the butyl seal by hand.
• If the seal won’t stick, apply vapor barrier butyl seal tape and press firmly all the way around.

Step 13: Reinstall the door panel

• Reconnect all electrical connectors.
• Hang the door panel on the top lip first, then press clips in around the edges with your hands.
• Reinstall screws using a Phillips screwdriver #2.
• Snap the handle trim pieces back on using a trim removal tool set as needed.

---

✅ After Repair

• Re-initialize the auto window function (common Subaru procedure): ignition ON, fully close the window and keep holding the switch UP for 1–2 seconds; fully open it and keep holding the switch DOWN for 1–2 seconds. Repeat once if auto-up/down doesn’t work.
• Verify the window seals evenly at the top and doesn’t whistle on a test drive.
• Check door locks, mirror, and window switch operation before calling it done.
• If you removed many clips, listen for rattles; replace any broken door panel trim clips.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$900 (parts + labor, per front door)

DIY Cost: $120–$350 (parts only, per front door)

You Save: $300–$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
