🔧 CX-5 - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that raises and lowers your window glass. Replacing it requires removing the door panel, supporting the glass, swapping the regulator (and sometimes the motor), then reassembling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep fingers clear of the regulator cables and scissor/track area while powered.
• ⚠️ Support the window glass at all times once it’s unclamped, or it can drop and shatter.
• ⚠️ Turn ignition OFF and remove the key before unplugging door wiring.
• ⚠️ If equipped with side airbag in the door, do not probe connectors; avoid impact to the airbag area.
• ⚠️ Battery disconnect is recommended if you’ll unplug any yellow airbag connector (wait 3+ minutes after disconnect).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips screwdriver #2
• Flat screwdriver 5mm
• Ratchet 3/8"
• Socket set 8mm, 10mm, 12mm
• Extension 6"
• Torx bit set T20, T25, T30
• Needle-nose pliers
• Painters tape 1.5"
• Pick tool (hook pick)
• Magnetic parts tray
• Torque wrench 3/8" (10–60 Nm range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (left or right) - Qty: 1
• Front window motor (if not included with regulator) - Qty: 1
• Door panel clips (assorted) - Qty: 1 set
• Butyl tape (for resealing vapor barrier) - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn ignition OFF, and open the front door you’re working on fully.
• Lower the window to about halfway if it still moves; this makes the glass clamp bolts easier to reach.
• If you may unplug any yellow connector, disconnect the negative battery cable using a 10mm socket and wait 3+ minutes.
• Take photos of every connector before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to carefully pry up the switch panel (window/lock switches) and unplug the connectors.
• Use a Phillips screwdriver #2 or Torx bit set T20/T25 (varies by screw) to remove screws in the door pull/handle area.
• Use a trim removal tool set to pop the panel clips around the perimeter, then lift the door panel straight up to unhook it from the top edge.
• Unplug remaining connectors and unhook the inside door handle cable using a pick tool (hook pick) if needed. (A “cable” here is the mechanical link from the handle to the latch.)

Step 2: Remove the vapor barrier (water shield)

• Use a trim removal tool set to peel the plastic vapor barrier back slowly.
• If the adhesive stretches, use butyl tape later to reseal it.
• Don’t tear it—water will leak into the cabin.

Step 3: Support and secure the window glass

• Locate the glass-to-regulator clamps through the large access holes.
• If the regulator still moves, temporarily plug the switch back in and turn ignition ON to position the clamps where you can reach them, then turn ignition OFF and unplug the switch again.
• Use painters tape 1.5" to tape the glass to the door frame (multiple vertical strips), or hold the glass fully up and tape it securely.

Step 4: Unbolt the glass from the regulator

• Use a 10mm socket to loosen/remove the glass clamp bolts/nuts (accessed through the door openings).
• Once unclamped, slide the glass fully up by hand and add more painters tape 1.5" to lock it in place.

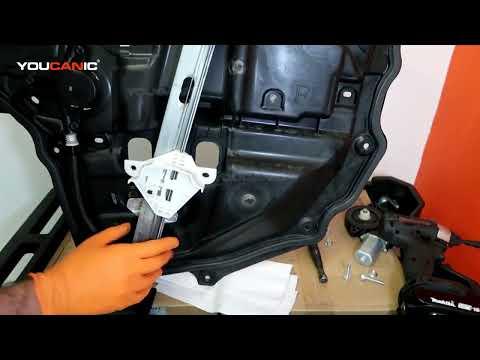

Step 5: Disconnect the window motor and remove the regulator assembly

• Unplug the window motor electrical connector (press the tab) using needle-nose pliers only if needed for the tab—don’t crush the connector.
• Use a 10mm socket and ratchet 3/8" with a 6" extension to remove the regulator mounting bolts.
• If the motor is separate from the regulator, use a Torx bit set T25/T30 to remove the motor screws from the regulator.
• Carefully maneuver the regulator out through the largest door opening.
• Move slowly; sharp door edges cut hands.

Step 6: Transfer the motor (if required) to the new regulator

• Set the old and new regulator side-by-side to confirm the track shape and connector location match.
• Use a Torx bit set T25/T30 to install the motor onto the new regulator.
• Tighten motor fasteners with a torque wrench 3/8" to Torque to Mazda factory specification.

Step 7: Install the new regulator into the door

• Feed the regulator into position and start all mounting bolts by hand to prevent cross-threading.
• Use a 10mm socket and ratchet 3/8" to tighten mounting bolts evenly.
• Finish tightening with a torque wrench 3/8" to Torque to Mazda factory specification.

Step 8: Reattach the glass to the regulator and function-check

• Remove some painters tape 1.5" and carefully lower the glass into the regulator clamps.
• Use a 10mm socket to reinstall/tighten the glass clamp fasteners.
• Plug in the window switch and motor connector, turn ignition ON, and test window up/down travel.
• If the glass tilts, bind, or makes popping noises, loosen the clamp fasteners with a 10mm socket, square the glass in the run channels, then retighten.

Step 9: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; use butyl tape if the original adhesive won’t stick.
• Reconnect all electrical connectors and the inner handle cable.
• Hook the top of the door panel on first, then press clips in around the edges using your hands.
• Reinstall screws using a Phillips screwdriver #2 or Torx bit set T20/T25.
• Snap the switch panel back in using a trim removal tool set to align it without cracking trim.

---

✅ After Repair

• Test the window from both the door switch and the driver master switch.
• Listen for cable clicking/grinding; that usually means misrouting or a loose mount.
• If the auto-up/auto-down feature acts weird, do a window initialization: run window fully down, hold the switch down 2 seconds; run fully up, hold 2 seconds.
• Check that the door locks, mirror controls, and speaker work before calling it done.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
