🔧 Civic - Front Window Regulator Replacement

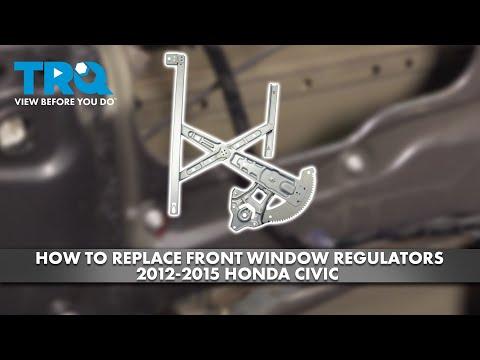

The front window regulator is the cable-and-track assembly that moves the door glass up and down. Replacing it fixes issues like the window falling into the door, grinding/clicking, or moving crooked/slow.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours per door

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce short/airbag risks.
• ⚠️ Support the window glass with tape before removing regulator bolts—glass can drop suddenly.
• ⚠️ Wear gloves—inner door metal edges are sharp.
• ⚠️ Don’t peel the plastic water shield completely off unless necessary; it must seal back up to prevent water leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 10mm wrench
• 1/4" ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim/panel clip removal tool
• Needle-nose pliers
• Pick tool
• Painter’s tape (1"-2" wide)
• Torque wrench (5–25 ft-lbs range)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if your new regulator does not include motor or motor is failed)
• Door panel retainer clips - Qty: 6-12 (as needed)
• Butyl tape (water shield adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground, key out, and set the parking brake.
• Lower the window to about halfway if it still moves (this helps you access the glass-to-regulator bolts).
• Disconnect the battery negative terminal using a 10mm wrench.
• Take photos as you unplug connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door panel

• Use a pick tool to pop off the small screw covers in the door pull/handle area.
• Remove the screws using a Phillips #2 screwdriver.
• Use a trim/panel clip removal tool (a forked pry tool that pops plastic clips) to release the door panel clips around the edges.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug electrical connectors (window switch, lock, etc.) using a pick tool to release the locking tabs if needed.

Step 2: Remove the water shield (vapor barrier)

• Carefully peel back the plastic sheet using your hands and a trim/panel clip removal tool as needed.
• The sticky sealer is “butyl” (black sticky rope). Keep it clean so it can reseal, or plan to replace it with new butyl tape.

Step 3: Secure the window glass

• If the glass is still attached and the regulator moves, plug the switch in temporarily and position the glass so you can see the glass clamp/bolts through the access holes.
• Unplug the switch again (use your hands) and keep the battery disconnected.
• Use painter’s tape (1"-2" wide) to tape the glass to the door frame in 2–3 strips from outside to inside.
• Use long tape strips; short ones let go.

Step 4: Detach the glass from the regulator

• Through the access holes, remove the glass-to-regulator fasteners using a 10mm socket, 1/4" ratchet, and 6" extension.
• Carefully slide the glass all the way up by hand, then add more painter’s tape to hold it fully up.
• Torque to 10 N·m (7 ft-lbs) during reassembly.

Step 5: Unplug and remove the regulator assembly

• Unplug the regulator motor connector using your hands; use a pick tool only if the lock tab is stubborn.
• Remove the regulator mounting bolts using a 10mm socket, 1/4" ratchet, and 6" extension.
• Carefully maneuver the regulator out through the large service opening in the door.
• Torque to 10 N·m (7 ft-lbs) during reassembly.

Step 6: If needed, transfer the motor to the new regulator

• If your replacement regulator does not include a motor, remove the motor screws/bolts from the old regulator using a 10mm socket or Phillips #2 screwdriver (varies by part design).
• Install the motor onto the new regulator and snug the fasteners evenly using the same tool you removed them with.
• Torque to 5 N·m (4 ft-lbs) if bolts are used (do not overtighten).

Step 7: Install the new regulator

• Feed the new regulator into the door opening and line up the mounting holes.
• Start all bolts by hand first to avoid cross-threading.
• Tighten using a 10mm socket and torque wrench: Torque to 10 N·m (7 ft-lbs).
• Plug the motor connector back in (push until it clicks).

Step 8: Reattach the glass to the regulator

• Remove some of the painter’s tape so the glass can lower slightly into position.
• Lower the glass by hand until it sits in the regulator clamps/guide.
• Install the glass fasteners using a 10mm socket and 1/4" ratchet.
• Tighten with a torque wrench: Torque to 10 N·m (7 ft-lbs).

Step 9: Function test before reassembly

• Reconnect the battery negative cable using a 10mm wrench.
• Plug the window switch in and cycle the window up/down while watching the regulator through the access hole.
• If the glass tilts or binds, stop and re-check that the glass is seated evenly in the clamps and the regulator bolts are tight.
• Disconnect the battery negative cable again using a 10mm wrench before reinstalling the water shield/door panel.

Step 10: Reinstall the water shield and door panel

• Press the plastic water shield back into the butyl seal. Add butyl tape where it no longer sticks.
• Reconnect all door electrical connectors (push until they click).
• Hang the door panel on the top lip, then press the clips in around the edges by hand.
• Reinstall screws using a Phillips #2 screwdriver and snap the covers back on.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm wrench.
• Test the window operation from both the driver switch and the affected door switch.
• If auto-up/down acts weird, perform window initialization: hold the switch down to fully open, then hold up to fully close, continuing to hold for ~2 seconds after it closes.
• Check for wind noise or water leaks after a car wash—re-seat the water shield if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
