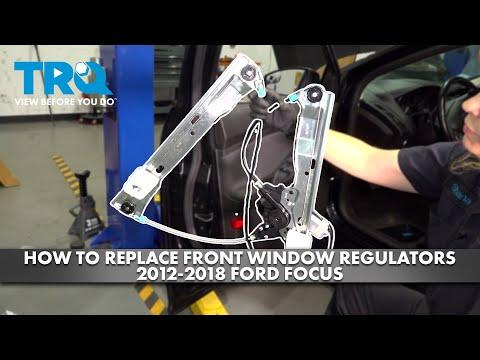

🔧 Focus - Front Window Regulator Replacement

Your Focus uses a window regulator (and usually a motor) to move the front door glass up and down. When the regulator wears out, the window may drop, bind, move crooked, or stop moving.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable to prevent accidental window movement and electrical shorts.
• ⚠️ Support the window glass before loosening clamps; the glass can drop suddenly.
• ⚠️ Wear gloves; door inner metal edges are sharp.
• ⚠️ Do not tear the vapor barrier (plastic sheet); it prevents water leaks into the cabin.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Torx T20 screwdriver
• Torx T25 screwdriver
• Torx T30 screwdriver
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Pick tool
• Needle-nose pliers
• Painters tape (1"-2" wide)
• Plastic razor blade
• Torque wrench (in-lb)
• Drill
• 1/4" drill bit
• Rivet gun (1/4") (specialty)
• 1/4" aluminum rivets

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (driver/left) - Qty: 1
• Front window regulator (passenger/right) - Qty: 1
• Front window motor (if not included with regulator) - Qty: 1
• Door trim panel retainer clips - Qty: 1 set
• Vapor barrier butyl seal tape - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition off.
• Lower the window until you can access the glass clamp bolts through the door access holes (if the window still moves).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• If the window is stuck up, plan to support the glass after the door panel is off (you’ll tape it to the door frame).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to carefully pop off the small trim covers near the handle/armrest area (clips release with gentle prying).
• Remove screws you uncover using a Torx T20 screwdriver or Torx T25 screwdriver (varies by panel location).
• Remove any lower/edge screws using a 7mm socket with a 1/4" drive ratchet.
• Use the trim removal tool set to pop the panel clips around the perimeter, then lift the panel up and off the window ledge.
• Disconnect electrical connectors using a pick tool to release locking tabs. Don’t pull on the wires.

Step 2: Remove the vapor barrier (plastic water shield)

• Use a plastic razor blade to separate the butyl adhesive while peeling the barrier back slowly.
• Support the barrier so it doesn’t fold onto itself and get contaminated with dirt.

Step 3: Support and secure the window glass

• If the glass is still attached to the regulator, move it to where the clamp bolts are visible through the access holes.
• Use painters tape (1"-2" wide) to tape the glass to the door frame (run several long strips over the top of the door and onto the glass).
• If the glass can’t be positioned, be ready to hold it by hand while you loosen the clamps.

Step 4: Disconnect the glass from the regulator

• Through the access holes, loosen the glass clamp bolts using an 8mm socket or 10mm socket (some regulators use different fasteners).
• Once loose, slide the glass fully up by hand and re-tape it securely.
• Torque on reassembly: Torque to 9 Nm (80 in-lb)

Step 5: Disconnect and remove the regulator/motor assembly

• Unplug the window motor connector using a pick tool if needed to release the lock.
• If your regulator is bolted in: remove the fasteners using a 10mm socket and 1/4" drive ratchet.
• If your regulator is riveted in: drill the rivet heads using a drill with a 1/4" drill bit, then push the rivet bodies out with a pick tool or needle-nose pliers.
• Carefully maneuver the regulator out through the largest access opening.
• Torque on reassembly (if bolted): Torque to 9 Nm (80 in-lb)

Step 6: Transfer the motor (only if your new regulator doesn’t include it)

• Remove the motor screws using a Torx T30 screwdriver.
• Install the motor onto the new regulator using the Torx T30 screwdriver.
• Torque: Torque to 5 Nm (44 in-lb)

Step 7: Install the new regulator

• Position the new regulator into the door and align mounting points.
• If bolted: start all bolts by hand, then tighten with a 10mm socket and torque wrench (in-lb). Torque to 9 Nm (80 in-lb)
• If riveted: install new rivets using a rivet gun (1/4") (specialty) and 1/4" aluminum rivets. Keep the regulator flat while riveting.
• Reconnect the motor connector.

Step 8: Reattach the glass to the regulator

• Carefully lower the glass into the regulator clamps while keeping it aligned in the front and rear window channels.
• Tighten the glass clamp bolts using an 8mm socket or 10mm socket.
• Torque: Torque to 9 Nm (80 in-lb)

Step 9: Function test before reassembly

• Reconnect the battery negative cable using a 10mm socket.
• Turn the ignition on and run the window up/down slowly while watching for binding or twisting.
• If it tilts or binds, loosen the glass clamps with an 8mm socket, re-seat the glass in the channels, then re-torque.
• Turn ignition off and disconnect the battery again using a 10mm socket before reinstalling the vapor barrier and panel.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add vapor barrier butyl seal tape where the original adhesive is missing.
• Reconnect all electrical connectors.
• Hang the door panel on the top edge, then press clips in around the perimeter using hand pressure.
• Reinstall screws using a Torx T20 screwdriver/Torx T25 screwdriver and 7mm socket as removed.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Test the window for smooth operation and listen for clicking/grinding.
• If auto-up/auto-down acts odd, “relearn” it: run the window all the way down, hold the switch 2 seconds; run all the way up, hold 2 seconds.
• Check for water leaks after the next car wash/rain (a poorly sealed vapor barrier is the usual cause).

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹4,500-₹12,000 (parts only)

You Save: ₹7,500-₹13,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
