🔧 Grand Cherokee - Front Window Regulator Replacement

Replacing the front window regulator means removing the interior door trim, supporting the glass, then swapping the regulator (the cable-and-track mechanism that moves the window). Many failures are caused by broken plastic guides, frayed cables, or a worn motor/gear.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before door electrical work.
• ⚠️ Support the window glass securely; it can drop suddenly.
• ⚠️ Be careful around side-impact airbag wiring in the door; do not probe yellow connectors.
• ⚠️ Wear gloves; the door’s inner metal edges are sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" ratchet
• 6" socket extension
• Phillips screwdriver #2
• Trim panel removal tool
• Pick tool
• Needle-nose pliers
• Torx T20 screwdriver
• Torx T30 screwdriver
• Painter’s tape (1.5" wide)
• Razor blade scraper
• Butyl rope / door vapor barrier adhesive
• Torque wrench (5–60 Nm range)
• Work light
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left or right) - Qty: 1
• Front window motor (if not included with regulator) - Qty: 1
• Door panel trim clips (assortment) - Qty: 1
• Butyl sealant for vapor barrier - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn ignition off, and lower the window if it still moves (about halfway is ideal).
• Disconnect the battery negative terminal using a 10mm socket.
• Have painter’s tape ready to hold the glass up to the door frame.
• If the glass is stuck up, plan to support it as soon as the glass-to-regulator fasteners are loosened.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door trim panel

• Use a pick tool to pop off the small trim covers hiding screws (usually near the pull handle and door handle area).
• Remove the exposed screws using a Phillips screwdriver #2 and/or Torx T20 screwdriver (fastener type varies by location).
• Use a trim panel removal tool to pop the panel clips loose around the outer edge. Work slowly to avoid breaking clips.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug the electrical connectors (window switch, lock switch, speaker) by pressing the tabs using a pick tool.

Step 2: Remove the vapor barrier (water shield)

• Carefully peel the plastic vapor barrier back.
• Use a razor blade scraper only as needed to separate sticky butyl. Try not to tear the plastic.

Step 3: Support the window glass

• If the glass can move, reconnect the window switch briefly and position the glass so you can access the glass-to-regulator fasteners through the door openings.
• Disconnect the switch again and keep the battery disconnected.
• Use painter’s tape (1.5" wide) to tape the glass to the door frame from the outside, or have a helper hold it.
• Painter’s tape is used as a “temporary clamp” to keep the glass from dropping.

Step 4: Disconnect the glass from the regulator

• Locate the glass mounting fasteners through the access holes.
• Loosen/remove the glass fasteners using a 10mm socket.
• Carefully slide the glass up by hand until fully closed, then add more painter’s tape to hold it securely.

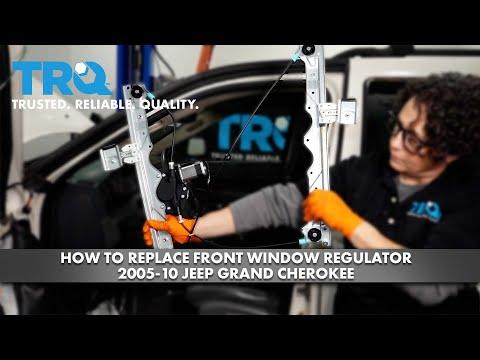

Step 5: Remove the window regulator (and motor if attached)

• Unplug the window motor electrical connector (tab release) using a pick tool.
• Remove the regulator mounting bolts using a 10mm socket with a 6" extension.
• If the motor is separate from the regulator on your part, remove the motor fasteners using a Torx T30 screwdriver.
• Angle and work the regulator assembly out through the largest door opening.

Step 6: Install the new regulator (and motor if separate)

• Slide the new regulator into the door the same way the old one came out.
• Start all mounting bolts by hand first, then snug them using a 10mm socket.
• If transferring the motor, install it onto the regulator using a Torx T30 screwdriver.
• STOP HERE for torque specs: I don’t want to guess torque values on your A-pillar/door hardware. Tell me the side (driver or passenger) and whether your replacement is “regulator only” or “regulator with motor,” and I’ll give the correct factory torque specs for each fastener point.

Step 7: Reattach the glass to the regulator

• Remove enough painter’s tape to allow the glass to lower slightly.
• Align the glass with the regulator clamps/holes and install the glass fasteners using a 10mm socket.
• Reconnect the motor connector by pressing it in until it clicks.

Step 8: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Temporarily plug in the window switch and run the window up/down slowly while watching the tracks and cable.
• If it binds, stop immediately and re-check regulator alignment and glass seating.
• Disconnect the battery again before reinstalling the vapor barrier and panel.

Step 9: Reinstall the vapor barrier and door panel

• Re-stick the vapor barrier using butyl rope / door vapor barrier adhesive.
• Reconnect all electrical connectors.
• Hang the door panel on the top lip first, then press the clips in around the perimeter.
• Reinstall screws using a Phillips screwdriver #2 and/or Torx T20 screwdriver.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• Test window operation from both the door switch and the driver master switch.
• If “auto up/down” is acting weird, cycle the window fully down and fully up a couple times to re-learn the stops.
• Check that the vapor barrier is sealed; it prevents water leaks into the cabin.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
