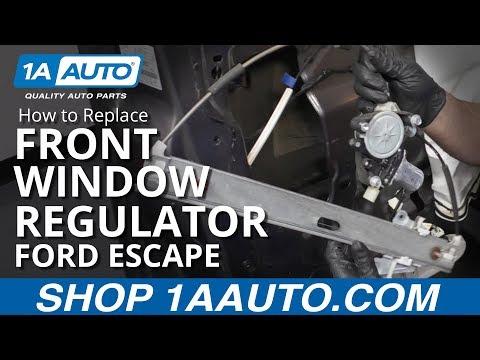

🔧 Escape - Front Window Regulator Replacement

The front window regulator is the mechanism that raises/lowers the glass. When it fails, the window may fall into the door, move crooked, bind, or the motor may run but the glass won’t move.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before unplugging door wiring to prevent shorts.
• 🛑 Support the window glass with tape before removing the regulator so it doesn’t drop.
• 🛑 Keep fingers clear of the regulator scissor/cable path while testing.
• 🛑 Work on a level surface with the key out of the ignition.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 8mm socket
• 7mm socket
• 1/4" drive ratchet
• 6" socket extension
• Phillips screwdriver
• Flat trim removal tool
• Plastic trim clip tool
• Needle-nose pliers
• Painters tape (1.5" or wider)
• Work light
• Small pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window motor - Qty: 1 (only if not included with regulator)
• Door panel retaining clips - Qty: 1 set (as needed)
• Butyl tape for vapor barrier - Qty: 1 (as needed)

---

📋 Before You Begin

• Park your Escape on level ground and open the front door you’re working on.
• Lower the window until you can access the glass-to-regulator fasteners through the door openings (if the window still moves).
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it so it can’t spring back.
• A trim clip tool is a forked plastic tool that pops panel clips out without breaking them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a flat trim removal tool to gently pry off the small trim covers near the inner door handle and armrest (where screws hide).
• Remove the door panel screws using a 7mm socket and/or Phillips screwdriver (locations typically include the armrest and near the handle area).
• Use a plastic trim clip tool to pop the panel clips around the edges of the door panel.
• Lift the door panel straight upward to unhook it from the window ledge.

Step 2: Disconnect electrical connectors (power windows)

• If equipped with power windows, unplug the window switch connector(s) using a small pick tool to release the locking tab.
• Unplug the speaker connector (if attached to the door panel) by hand.
• Tip: Push the tab, then wiggle—don’t yank wires.

Step 3: Peel back the vapor barrier

• Carefully peel back the plastic moisture shield (vapor barrier) using a flat trim removal tool.
• Try not to tear it; you’ll reuse it. If the butyl is messy, wear mechanic gloves.

Step 4: Secure the window glass

• If the glass is still in the tracks, run painters tape from the outside of the glass over the door frame to hold the glass up.
• If the glass is down or loose, raise it by hand to the full-up position, then tape it securely in at least 2-3 strips.

Step 5: Detach the glass from the regulator

• Look through the door access holes to find the glass-to-regulator clamp/bolts.
• Use an 8mm socket to loosen/remove the fasteners that clamp the glass to the regulator.
• Torque to 8 Nm (71 in-lbs) during reassembly.

Step 6: Remove the regulator (and motor if included)

• Unplug the window motor connector (power windows) by hand; use a small pick tool if the tab is stubborn.
• Remove the regulator mounting bolts using a 10mm socket and ratchet.
• Torque to 10 Nm (89 in-lbs) during reassembly.
• Maneuver the regulator out through the largest access opening. Use a work light so you can see the cable path.

Step 7: Swap the motor (only if your new regulator doesn’t include it)

• Remove the motor fasteners using an 8mm socket (or the fastener type supplied) and transfer the motor to the new regulator.
• Torque to 6 Nm (53 in-lbs).
• Tip: Keep fingers clear of the gear.

Step 8: Install the new regulator

• Slide the new regulator into the door and align it to the mounting holes.
• Start all bolts by hand first, then tighten using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Plug in the motor connector (power windows) until it clicks.

Step 9: Reattach the glass and test

• Remove some tape so the glass can lower slightly, but keep it supported.
• Set the glass into the regulator clamp/channel and install/tighten the fasteners using an 8mm socket.
• Torque to 8 Nm (71 in-lbs).
• Reconnect the window switch temporarily, reconnect the battery using a 10mm socket, then test the window movement.
• If it binds, stop and check that the glass is seated in the tracks and the regulator isn’t twisted.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place. Add butyl tape if it won’t stick.
• Reconnect all connectors (switch, speaker) by hand.
• Hang the door panel on the top ledge and press the clips in around the perimeter using your hands.
• Reinstall screws using a 7mm socket and/or Phillips screwdriver.
• Torque to 2 Nm (18 in-lbs) (snug, do not overtighten into plastic).

---

✅ After Repair

• Cycle the window fully down, then fully up, watching for smooth movement and proper sealing.
• If your Escape has auto-up/down behavior, re-learn it: hold the switch to fully down for 2 seconds, then fully up for 2 seconds.
• Check the door for water leaks after the next wash/rain (vapor barrier must be sealed).
• Listen for rattles; a missing door clip is the most common cause.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $270-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
