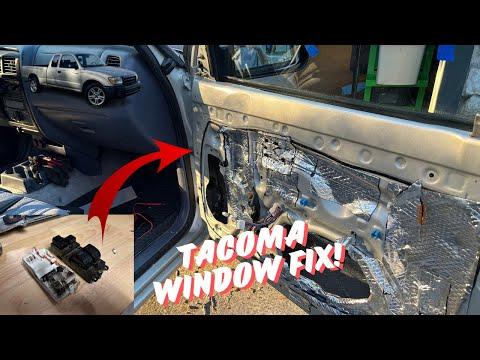

🔧 Tacoma - Front Window Regulator Replacement

The front window regulator is the mechanism that guides the glass up and down. On your Tacoma, replacing it requires removing the interior door panel, supporting the glass, unbolting the regulator (and motor if included), then reinstalling and testing for smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Keep hands clear of the scissor/cable mechanism while powered.
• ⚠️ Support the door glass anytime it’s detached from the regulator to prevent it from dropping and shattering.
• ⚠️ Disconnect the negative battery cable before unplugging/plugging the window motor and switch connectors.
• ⚠️ Use trim tools (not a screwdriver) to reduce broken clips and cuts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 1/4" ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim clip removal tool
• Plastic pry tool set
• Pick tool
• Needle-nose pliers
• Torque wrench (in-lb)
• Painters tape (1"-2" wide)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if motor is separate/being replaced)
• Door panel retainer clips - Qty: 6-12 (recommended)
• Butyl tape (weatherstrip adhesive) - Qty: 1 (if the vapor barrier won’t reseal)

---

📋 Before You Begin

• Park on level ground and keep the key out of the ignition.
• Lower the window to about halfway if it still moves (this usually exposes the glass-to-regulator fasteners through the access holes).
• Disconnect the negative battery cable using a 10mm socket.
• Two quick questions so I give the exact correct steps:
  • Which front door are you doing: driver or passenger?
  • Are you replacing the regulator only, or the regulator with the motor included?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the window/lock switch panel

• Use a plastic pry tool set to gently pry up the switch panel from the armrest.
• Unplug the electrical connectors by lifting the lock tab with a pick tool, then pulling the connector straight out.

Step 2: Remove the interior door handle trim

• Use a plastic pry tool set to pop off the small trim bezel around the inside door handle.
• Remove any exposed screws using a Phillips #2 screwdriver.

Step 3: Remove the door panel

• Remove remaining screws in the armrest/pull handle area using a Phillips #2 screwdriver (and 10mm socket if equipped).
• Work around the edges and release the push-clips using a trim clip removal tool.
• Lift the panel straight up to unhook it from the window ledge.
• Unplug any remaining connectors using a pick tool and your hands.

Step 4: Peel back the vapor barrier (water shield)

• Carefully peel it back by hand. If the adhesive is stubborn, warm it slightly (cabin warm air) and pull slowly.
• Don’t tear it; it prevents water leaks.

Step 5: Support and secure the door glass

• If the glass is still attached and you can move it by hand, position it so you can access the glass mounting points through the door’s access holes.
• Use painters tape (1"-2" wide) to tape the glass to the door frame (run several long strips over the top of the door frame).
• If the regulator has failed and the glass is loose, hold it up and tape it securely before loosening anything else.

Step 6: Detach the glass from the regulator

• Through the access holes, remove the glass-to-regulator fasteners using a 10mm socket and 1/4" ratchet.
• Once detached, push the glass fully up by hand and add more painters tape to keep it from sliding down.
• Torque to 7.5 Nm (66 in-lbs) when reinstalling these 10mm fasteners.

Step 7: Unplug and remove the regulator (and motor if applicable)

• Unplug the window motor connector using a pick tool to release the lock tab.
• Remove the regulator mounting bolts using a 10mm socket, 6" extension, and 1/4" ratchet.
• If your replacement is a regulator-only and you must transfer the motor, remove the motor screws/bolts with a 10mm socket or Phillips #2 screwdriver (varies by part), then move the motor onto the new regulator.
• Torque regulator/motor fasteners to 7.5 Nm (66 in-lbs) unless your new part includes different instructions.
• Rotate and maneuver the regulator out through the large door opening.

Step 8: Install the new regulator

• Feed the new regulator into the door in the same orientation as the old one.
• Start all bolts by hand first to avoid cross-threading, then tighten with a 10mm socket.
• Torque regulator mounting bolts to 7.5 Nm (66 in-lbs).

Step 9: Reattach the glass and function-check

• Plug the motor connector back in by hand until it clicks.
• Reconnect the battery negative cable using a 10mm socket.
• Temporarily plug in the switch panel and run the regulator to align the glass mounts, keeping hands clear.
• Remove some tape, lower the glass carefully onto the regulator mounts, and install the fasteners with a 10mm socket.
• Torque to 7.5 Nm (66 in-lbs).
• Cycle the window up/down several times and listen for popping/clicking (a sign of misalignment).

Step 10: Reinstall the vapor barrier and door panel

• Reseal the vapor barrier. If it won’t stick, apply butyl tape by hand.
• Reconnect all door panel electrical connectors by hand until they click.
• Hang the door panel on the upper window ledge, then press the clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver (and 10mm socket if equipped).
• Snap the handle trim and switch panel back in using a plastic pry tool set.

---

✅ After Repair

• Confirm the window moves smoothly and seals evenly at the top.
• Check door locks, mirror (if equipped), and speaker function before fully closing up tools.
• If auto-up/auto-down is present and doesn’t work, initialize by holding the switch fully down for 2 seconds, then fully up for 2 seconds.
• After the first rain or wash, check for water leaks (vapor barrier not sealed).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$280 (parts only)

You Save: $260-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
