🔧 Civic - Front Window Regulator Replacement

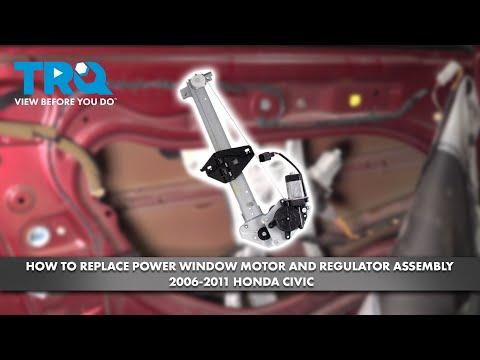

The front window regulator is the track-and-cable assembly that raises/lowers your window glass. On your Civic, failure usually shows up as a window that won’t move, tilts, or makes grinding/clicking noises. You’ll remove the door panel, secure the glass, swap the regulator (and motor if needed), then re-check window alignment.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable to prevent accidental window movement and to avoid any airbag/short risk while unplugging door wiring.
• ⚠️ Support the window glass securely before unbolting it from the regulator; falling glass can shatter or cut you.
• ⚠️ Keep fingers clear of the regulator arms/cables; pinch points are strong even by hand.
• ⚠️ Do not tear the vapor barrier (plastic sheet); it keeps water off the electronics and carpet.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 10mm ratchet
• 6-inch socket extension
• Phillips #2 screwdriver
• Flat trim tool
• Door panel clip remover (specialty)
• Needle-nose pliers
• Painter’s tape (1.5-inch wide)
• Shop light
• Torque wrench (inch-pound capable) (specialty)
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left or right) - Qty: 1
• Front window regulator motor - Qty: 1 (only if your motor is bad or not included)
• Door panel clips - Qty: 6-12 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1 (as needed)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window about halfway if it still moves (this gives access to the glass-to-regulator bolts).
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Have painter’s tape ready to hold the glass up in the frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door panel

• Use a Phillips #2 screwdriver to remove the screw(s) in the inner door pull/armrest area.
• Use a flat trim tool to gently pop off small trim covers hiding screws (if equipped), then remove those screws with the Phillips #2 screwdriver.
• Use a door panel clip remover (specialty) to pop the panel clips around the perimeter. (This tool is a forked pry tool that releases plastic clips without breaking them.)
• Lift the door panel straight up to unhook it from the window sill.
• Unplug the window switch connector(s) by pressing the tab and pulling straight out.

Step 2: Remove the vapor barrier (plastic water shield)

• Use the flat trim tool to carefully peel the vapor barrier back.
• If the sticky adhesive stretches, add new butyl tape later to reseal it. Keep it clean for a good seal.

Step 3: Support the glass

• If the glass is halfway down, look through the access holes and locate the glass-to-regulator clamp bolts.
• Use painter’s tape (1.5-inch wide) to tape the glass to the door frame (outside to inside over the top of the door) so it cannot drop.
• If the window is stuck, you may need to loosen the regulator first and carefully move the glass by hand while keeping it supported.

Step 4: Detach the glass from the regulator

• Use a 10mm socket with a 10mm ratchet and extension to remove the two glass clamp bolts (through the access holes).
• Once the bolts are out, push the regulator down slightly (by hand) and confirm the glass is free and held up by the tape.
• When reinstalling these bolts later: Torque to 10 Nm (7 ft-lbs).

Step 5: Disconnect the regulator motor (if equipped/attached)

• Unplug the window motor connector by pressing the tab and pulling it off.
• If your replacement is “regulator only,” you’ll transfer the motor after the assembly is out.

Step 6: Remove the regulator (and motor assembly)

• Use a 10mm socket with a 10mm ratchet and extension to remove the regulator mounting bolts.
• Support the regulator as the last bolt comes out, then maneuver it out through the large service opening in the door.
• When reinstalling the regulator bolts later: Torque to 9 Nm (80 in-lbs).

Step 7: Transfer the motor (only if needed)

• Use a 10mm socket (or the correct fastener tool if your motor uses different hardware) to remove the motor fasteners from the old regulator.
• Install the motor onto the new regulator in the same orientation.
• When reinstalling the motor fasteners: Torque to 9 Nm (80 in-lbs).

Step 8: Install the new regulator

• Feed the new regulator into the door through the service opening.
• Start all mounting bolts by hand first, then tighten using the 10mm socket and ratchet.
• Torque to 9 Nm (80 in-lbs).
• Plug in the motor connector.

Step 9: Reattach the glass and check alignment

• Remove some tape so the glass can lower slightly, but keep it supported.
• Carefully lower the glass into the regulator clamps.
• Install the glass clamp bolts using the 10mm socket and ratchet, then Torque to 10 Nm (7 ft-lbs).
• Reconnect the window switch temporarily and reconnect the negative battery cable with the 10mm socket.
• Cycle the window up/down while watching for tilting, binding, or popping noises. If needed, slightly loosen the regulator mounting bolts with the 10mm socket, nudge alignment, then re-torque.
• Disconnect the battery again before final reassembly if you’re still working near wiring. Slow cycles help you spot binding.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place; add butyl tape where it no longer sticks.
• Reconnect all electrical connectors.
• Hang the door panel on the top lip first, then press the clips in around the edges by hand.
• Reinstall screws using the Phillips #2 screwdriver.

---

✅ After Repair

• Reconnect the negative battery cable using the 10mm socket.
• Test the window from the driver switch and the door’s own switch (if passenger side).
• Make sure the glass seals evenly at the top and doesn’t “jump” forward/backward.
• If the auto-down feature acts odd after battery disconnect, cycle the window fully down and fully up a couple times to relearn normal operation.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
