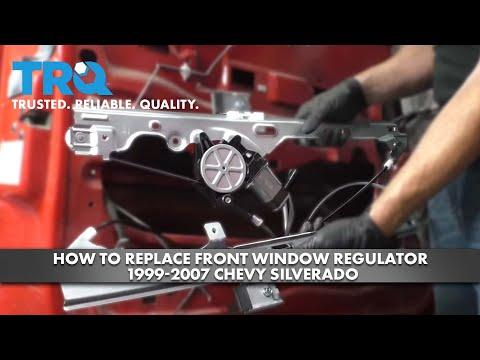

🔧 Silverado 1500 - Front Window Regulator Replacement

The front window regulator is the mechanism inside the door that raises/lowers the glass. When it fails, the window may move crooked, fall into the door, or stop moving entirely. This job is mostly careful disassembly and keeping the glass supported.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working in the door to prevent accidental shorts and to protect the door wiring.
• ⚠️ Support the window glass at all times; it can drop suddenly and shatter or cut you.
• ⚠️ Wear cut-resistant gloves; the inner door metal edges are sharp.
• ⚠️ Do not pull on wiring; unplug connectors by the connector body.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Cut-resistant work gloves
• Trim clip removal tool
• Small flat-blade screwdriver
• Phillips screwdriver
• Ratchet
• Extension bar, 3-inch
• 7mm socket
• 10mm socket
• Torx T30 bit
• Painters tape, 1.5-inch wide
• Magnetic pickup tool
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if your motor is weak/bad)
• Door panel retainer clips - Qty: 1 set (replace any that break)
• Butyl tape (vapor barrier adhesive) - Qty: 1 (only if the original adhesive won’t reseal)

---

📋 Before You Begin

• Park on level ground and remove the key.
• Lower the window to about halfway if it still moves (this helps access the glass-to-regulator fasteners).
• Use a 10mm socket to disconnect the negative battery cable and isolate it so it can’t spring back.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door trim panel

• Use a small flat-blade screwdriver to gently pop off the trim covers hiding screws (commonly near the door pull/handle area).
• Remove the door panel screws using a 7mm socket and/or Torx T30 bit (locations vary by door).
• Use a trim clip removal tool to pop the door panel clips free around the edges.
• Lift the door panel straight up to unhook it from the window ledge.
• Unplug electrical connectors (window/lock switch, speaker if attached) by hand; use a small flat-blade screwdriver only to release locking tabs if needed.

Step 2: Remove the vapor barrier (water shield)

• Peel the plastic vapor barrier back slowly by hand.
• If the adhesive fights you, warm it slightly with your hands and go slow to avoid tearing.
• Set it aside where it won’t get dirty; it must reseal to keep water out.

Step 3: Secure the window glass

• Align the regulator/glass clamp area with the access holes in the door (move the glass by hand if the regulator is failed, or briefly reconnect the switch if needed, then disconnect again).
• Use painters tape, 1.5-inch wide to tape the glass to the door frame at the top (run several strips from outside over the top into the inside).
• Use 3–5 strips; glass is heavier than it looks.

Step 4: Detach the glass from the regulator

• Through the access holes, remove the glass-to-regulator fasteners using a 10mm socket.
• Carefully push the glass fully up by hand, then add more painters tape, 1.5-inch wide to hold it in the fully up position.
• Torque to 10 Nm (89 in-lbs) when reinstalling these fasteners.

Step 5: Unplug the window motor and remove the regulator assembly

• Unplug the window motor connector.
• Remove the regulator/motor mounting bolts using a 10mm socket and ratchet with a 3-inch extension bar.
• Work the regulator out through the largest access opening (rotate it as needed).
• Torque to 10 Nm (89 in-lbs) for regulator mounting bolts during installation.

Step 6: If needed, transfer the motor to the new regulator

• If your replacement regulator does not include a motor, remove the motor screws from the old regulator using a 10mm socket or Torx T30 bit (varies by part design).
• Install the motor onto the new regulator and tighten evenly.
• Torque to 4 Nm (35 in-lbs) for window motor fasteners.
• Keep fingers clear of the gear area.

Step 7: Install the new regulator

• Slide the new regulator into the door and loosely start the mounting bolts by hand.
• Tighten the regulator mounting bolts using a 10mm socket and torque wrench (inch-pound).
• Torque to 10 Nm (89 in-lbs).
• Plug in the window motor connector until it clicks.

Step 8: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly (keep at least 1–2 strips holding it).
• Carefully lower the glass until it sits into the regulator clamps.
• Install and tighten the glass-to-regulator fasteners using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).

Step 9: Test window operation before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Temporarily plug in the window switch and run the window up/down while watching for smooth movement and proper alignment.
• If it binds, stop and re-check regulator bolt seating and glass clamp alignment.
• Disconnect the negative battery cable again using a 10mm socket before finishing reassembly.

Step 10: Reinstall the vapor barrier and door panel

• Press the vapor barrier back into place by hand; use butyl tape if the seal won’t stick.
• Reconnect all electrical connectors.
• Hang the door panel on the top lip, then press the clips in around the edges by hand.
• Reinstall screws using a 7mm socket and/or Torx T30 bit.
• Snap the trim covers back on using hand pressure.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Cycle the window fully down and fully up several times to confirm smooth operation.
• Check that the door lock, mirror (if equipped), and speaker work.
• Listen for rattles; if present, a door clip may be loose or broken.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per door)

DIY Cost: $70-$220 (parts only, per door)

You Save: $280-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
