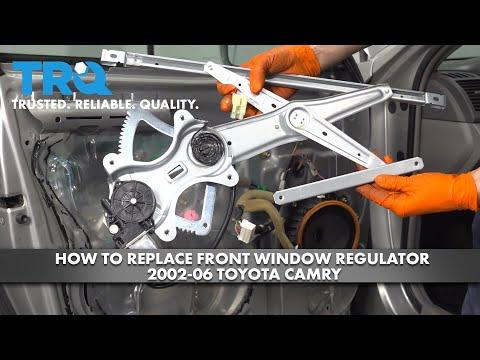

🔧 Camry - Front Window Regulator Replacement

The front window regulator is the mechanism that moves the door glass up and down. When it fails, the window may move slowly, bind, fall into the door, or stop moving entirely. This job involves removing the door panel, supporting the glass, swapping the regulator, then verifying smooth operation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal before door electrical work to reduce short-circuit and accidental airbag/SRS risk.
• ⚠️ Support the window glass securely—if it drops, it can shatter or cut you.
• ⚠️ Wear cut-resistant gloves when working inside the door (sharp metal edges).
• ⚠️ Keep fingers clear of the regulator scissor/cable path while testing.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Phillips #2 screwdriver
• Trim panel removal tool (specialty)
• Pick tool (specialty)
• Torque wrench (in-lb or low-range Nm)
• Painters tape (1.5" wide)
• Needle-nose pliers
• Work light
• Cut-resistant gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included)
• Door trim panel clips - Qty: 6-12 (as needed)
• Butyl tape (vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground and turn the ignition off.
• Lower the window to about halfway if it still moves (this usually lines up the glass clamps with the access holes).
• Disconnect the battery negative terminal using a 10mm socket, then wait 90 seconds before unplugging door connectors.
• Take photos of connectors before unplugging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the door switch panel and door trim panel

• Use a trim panel removal tool (specialty) to gently pry up the window switch panel.
• Unplug the switch connectors using a pick tool (specialty) to release locking tabs.
• Remove any visible screws using a Phillips #2 screwdriver (common locations: armrest/handle area).
• Use a trim panel removal tool (specialty) to pop the door panel clips loose around the edges, then lift the panel upward off the top door lip.
• If equipped, unplug courtesy light/speaker connectors using a pick tool (specialty).

Step 2: Remove the vapor barrier (water shield)

• The vapor barrier is the plastic sheet behind the door panel that keeps water off the interior—peel it back carefully.
• Use a trim panel removal tool (specialty) to help separate the sticky adhesive without tearing the plastic.
• Set it aside cleanly; you’ll reseal it later using butyl tape.

Step 3: Secure the window glass in the up position

• Carefully slide the glass fully up by hand (or if it’s still connected and moves, reconnect the switch temporarily and raise it, then disconnect again).
• Use painters tape (1.5" wide) to tape the glass to the door frame (run several long strips over the top of the door).
• Use 3–5 tape strips for safety.

Step 4: Disconnect the glass from the regulator

• Through the door access holes, locate the glass-to-regulator clamp bolts.
• Use a 10mm socket, 1/4" drive ratchet, and 6" extension (1/4" drive) to loosen/remove the clamp bolts.
• Once loose, confirm the glass is free from the regulator and still securely taped up.
• Torque to 8 N·m (71 in-lb) during reassembly for the glass clamp bolts.

Step 5: Unplug the regulator motor (power windows)

• Locate the window motor connector on the regulator assembly.
• Release the lock tab with a pick tool (specialty) and unplug the connector.

Step 6: Remove the regulator (and motor if transferring)

• Remove the regulator mounting bolts using a 10mm socket and 1/4" drive ratchet.
• Carefully maneuver the regulator out through the large service opening in the door.
• If your new regulator does not include a motor, remove the motor from the old regulator using a 10mm socket (or Phillips #2 screwdriver if screw-type fasteners are used).
• Torque to 10 N·m (89 in-lb) for regulator-to-door bolts during reassembly.
• Torque to 6 N·m (53 in-lb) for motor-to-regulator fasteners during reassembly.

Step 7: Install the new regulator

• Feed the new regulator into the door opening and align it with the mounting holes.
• Start all bolts by hand first to avoid cross-threading, then tighten with a 10mm socket and 1/4" drive ratchet.
• Finish tightening using a torque wrench (in-lb or low-range Nm): Torque to 10 N·m (89 in-lb).
• Plug in the motor connector until it clicks (use a work light to confirm it’s fully seated).

Step 8: Reattach the glass to the regulator

• Remove just enough painters tape (1.5" wide) so the glass can be lowered gently into position.
• Align the glass with the regulator clamps.
• Install and tighten the clamp bolts using a 10mm socket and 1/4" drive ratchet.
• Final tighten with a torque wrench (in-lb or low-range Nm): Torque to 8 N·m (71 in-lb).

Step 9: Function test before reassembly

• Reconnect the battery negative terminal using a 10mm socket.
• Temporarily plug in the window switch and cycle the window up/down while watching the regulator through the access hole.
• If the glass tilts, stop and check clamp alignment and that the regulator is seated flat.
• Disconnect the battery negative terminal again using a 10mm socket before reinstalling the vapor barrier and panel.

Step 10: Reinstall the vapor barrier and door panel

• Re-stick the vapor barrier using butyl tape (it must seal all the way around).
• Reconnect door electrical connectors (switch, speaker, courtesy light) by pressing until they click.
• Hang the door panel on the top lip first, then press clips in around the edges by hand.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using hand pressure.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Cycle the window fully down and fully up several times and listen for binding or clicking.
• If the driver window has auto up/down and it acts “confused,” initialize it: hold the switch fully down for 2 seconds after it reaches bottom, then fully up for 2 seconds after it reaches top.
• Check that the door lock, speaker, and mirror controls work.
• Confirm the vapor barrier is sealed—this helps prevent water leaks and wind noise.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor, per front door)

DIY Cost: $80-$220 (parts only, per front door)

You Save: $270-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
