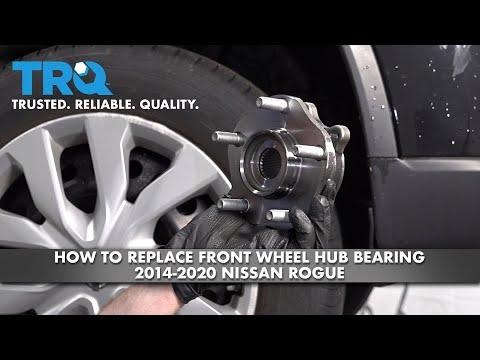

🔧 Front Wheel Hub Bearing Assembly - Replacement

On your Rogue, the front wheel bearing is serviced as a complete hub bearing assembly. That means you replace the whole hub unit instead of pressing a bearing in and out. This job involves the brake, axle nut, and steering knuckle area, so take your time and keep everything clean.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Support the vehicle with jack stands on solid ground. Never work with only a jack.
• Use the parking brake and chock the rear wheels before lifting the front.
• The axle nut is very tight. Keep the vehicle on the ground when loosening and tightening it.
• Do not hang the brake caliper by the hose. Support it with wire or a hook.
• Use caution around the ABS wheel speed sensor wiring near the hub.
• No battery disconnect is normally required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar
• Torque wrench
• 32mm axle nut socket
• 14mm socket
• 17mm socket
• 18mm socket
• 19mm socket
• Ratchet
• Extension bar
• Flat-blade screwdriver
• Rubber mallet
• Hammer
• Punch
• Pliers
• Penetrating oil
• Brake cleaner
• Bungee cord or wire hook
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front wheel hub bearing assembly - Qty: 1
• Axle nut - Qty: 1
• Caliper bracket bolts - Qty: 2
• Wheel speed sensor bolt - Qty: 1
• Brake cleaner - Qty: 1 can

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the lug nuts slightly before lifting the vehicle.
• Loosen the axle nut with the vehicle on the ground.
• If the axle splines are stuck in the hub, apply penetrating oil and let it soak.
• Have a new axle nut ready before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel and axle nut

• Use a lug wrench to crack loose the wheel lug nuts.
• Use a 32mm axle nut socket and breaker bar to loosen the axle nut while the Rogue is still on the ground.
• Do not remove the axle nut yet.

Step 2: Raise and secure the vehicle

• Use a floor jack to lift the front of the Rogue.
• Place jack stands under the proper front support points.
• Remove the wheel completely.

Step 3: Remove the brake caliper and bracket

• Use a 14mm socket or 17mm socket to remove the caliper slide bolts, depending on the bracket setup.
• Lift the caliper off and hang it with a bungee cord or wire hook.
• Use an 18mm socket to remove the caliper bracket bolts.
• Remove the brake rotor.
• Keep the brake hose relaxed.

Step 4: Remove the axle nut and free the axle from the hub

• Use the 32mm axle nut socket to remove the axle nut.
• Push the axle splines inward slightly from the hub.
• If stuck, use a rubber mallet and light taps on the axle end.
• Do not hammer the threads directly.

Step 5: Disconnect the wheel speed sensor

• Locate the ABS wheel speed sensor wire at the hub.
• Use a 10mm socket or flat-blade screwdriver to remove any retaining bolt or clip.
• Move the sensor wire out of the way.

Step 6: Remove the hub bearing assembly

• From the back side of the steering knuckle, use a 14mm socket to remove the hub mounting bolts.
• If the hub is rusted in place, tap around the flange with a hammer and punch.
• Remove the hub bearing assembly from the knuckle.
• Work evenly around the flange if it is seized.

Step 7: Clean the mounting surface

• Use brake cleaner and a rag to clean the knuckle hub bore.
• Remove rust and debris so the new hub seats flat.
• Inspect the axle splines and knuckle for damage.

Step 8: Install the new hub bearing assembly

• Position the new hub assembly into the knuckle.
• Install the hub bolts by hand first.
• Use a 14mm socket to tighten the hub bolts evenly.
• Torque to 78 Nm (58 ft-lbs).

Step 9: Reassemble the brake and axle

• Slide the axle back into the new hub splines.
• Reinstall the brake rotor.
• Install the caliper bracket with a 18mm socket.
• Torque to 137 Nm (101 ft-lbs).
• Reinstall the caliper with a 14mm socket or 17mm socket.
• Torque to 31 Nm (23 ft-lbs).

Step 10: Install the new axle nut and wheel

• Install the new axle nut by hand.
• Reinstall the wheel and snug the lug nuts.
• Lower the Rogue so the tire touches the ground enough to keep the hub from spinning.
• Use a 32mm axle nut socket and torque wrench to tighten the axle nut.
• Torque to 217 Nm (160 ft-lbs).
• Use a torque wrench to tighten the lug nuts in a star pattern.
• Torque to 108 Nm (80 ft-lbs).

Step 11: Final checks

• Spin the wheel by hand and listen for rubbing.
• Check the ABS wire routing and clips.
• Press the brake pedal several times before moving the vehicle.

---

✅ After Repair

• Road test at low speed first.
• Listen for humming, grinding, or clicking.
• Check that the ABS warning light stays off.
• Recheck axle nut and wheel lug torque after the test drive.
• If the steering wheel pulls or the brake pedal feels odd, stop and inspect the assembly.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
