🔧 Wheel Bearing - Replacement

Assumption: this is the front hub bearing assembly. On your A4, the bearing is part of the hub assembly and is usually replaced as a unit, not pressed apart. A worn bearing can cause humming, growling, looseness, or ABS warning lights.

Difficulty Level: Advanced | Estimated Time: 3-5 hours per side

---

⚠️ Safety & Precautions

• Support the vehicle with jack stands; never rely on a jack alone.
• Your Camry Hybrid has high-voltage systems. No HV battery disconnect is needed for this job, but keep the ignition off and key fob away from the car.
• Brake components may be hot if the car was just driven.
• Do not hang the brake caliper by the hose.
• Be careful with the wheel speed sensor wiring so you do not damage ABS wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm lug wrench or socket
• Torque wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• Ratchet
• Breaker bar
• Bungee cord or caliper hanger
• Flat-blade screwdriver
• Hammer
• Punch
• Penetrating oil
• Brake cleaner
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front wheel hub bearing assembly - Qty: 1 per side
• New axle nut - Qty: 1 per side
• New hub bolts - Qty: 3 per side
• Brake cleaner - Qty: 1 can

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the lug nuts before lifting the car.
• If equipped with an electric parking brake, make sure it is released before starting.
• Use Menu > Settings > Vehicle > Maintenance only if your dash prompts for service reset after repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the vehicle

• Loosen the lug nuts with a 21mm lug wrench or socket.
• Lift the car with a floor jack (rated 3-ton minimum).
• Set it down on jack stands and chock the rear wheels.

Step 2: Remove the wheel and brake parts

• Remove the wheel with the 21mm socket.
• Use a 12mm socket or 14mm socket to remove the caliper bolts, depending on the side and fastener style.
• Hang the caliper with a bungee cord or caliper hanger.
• Remove the brake rotor. If it is stuck, tap it gently with a hammer.

Step 3: Remove the axle nut and sensor components

• Use a 19mm socket and breaker bar to remove the axle nut.
• Disconnect the wheel speed sensor connector with a 10mm socket if the harness is attached to the knuckle.
• Carefully unclip the sensor wire so it is out of the way.

Step 4: Separate the knuckle from the hub area

• Remove the hub-to-knuckle bolts using a 17mm socket or 19mm socket.
• If the hub is rusted in place, spray penetrating oil around the flange and let it soak.
• Use a hammer and punch to tap the hub free evenly from the knuckle.

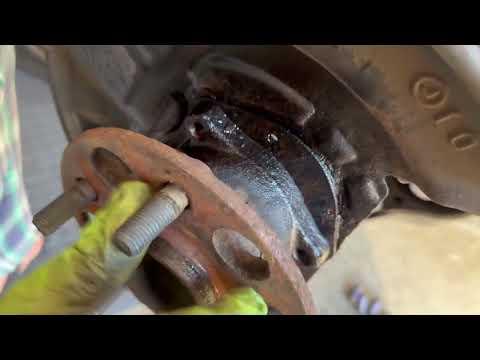

Step 5: Install the new hub bearing assembly

• Clean the mounting surface with wire brush and brake cleaner.
• Set the new hub bearing assembly in place by hand.
• Install the new hub bolts and snug them with a 17mm socket or 19mm socket.
• Torque to 70 Nm (52 ft-lbs) for the hub bolts.

Step 6: Reassemble the brakes and axle

• Reinstall the rotor and caliper using the 12mm socket or 14mm socket.
• Install a new axle nut and snug it with a 19mm socket.
• Torque to 216 Nm (159 ft-lbs) for the axle nut after the vehicle is back on the ground.
• Torque to 34 Nm (25 ft-lbs) for the caliper bolts unless your brake hardware label specifies otherwise.

Step 7: Reinstall the wheel

• Put the wheel back on and hand-tighten the lug nuts.
• Lower the vehicle and torque the lug nuts with a torque wrench.
• Torque to 103 Nm (76 ft-lbs) for the lug nuts.

---

✅ After Repair

• Start the car and check for any ABS or brake warnings.
• Drive slowly at first and listen for noise.
• Verify the wheel spins smoothly with no grinding or play.
• Recheck the axle nut and lug torque after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 per side (parts + labor)

DIY Cost: ₹3,500-₹8,500 per side (parts only)

You Save: ₹8,500-₹16,500 by doing it yourself!

Shop labor rates vary but typically run ₹2,500-₹7,000/hour. This repair takes a shop approximately 3-5 hours.

---
