🔧 Wheel Bearing - Front Hub Assembly Replacement

Assumption: This covers the front wheel bearing/hub assembly on your Equinox. On this vehicle, the bearing is serviced as a hub assembly, not as a loose bearing.

The front hub and bearing unit supports the wheel and lets it spin smoothly. If it is noisy, loose, or rough, replacing the complete assembly is the correct repair. Since this job involves brake and steering components, take your time and keep everything clean.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on a flat surface and chock the rear wheels.
• Use jack stands. Do not rely on the jack alone.
• Keep the parking brake set until the wheel is off and the vehicle is safely supported.
• Do not hang the brake caliper by the hose.
• Be careful around the axle nut and wheel hub area. These parts can be very tight.
• If the axle is removed from the hub, support the axle so the CV joint is not strained.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Torque wrench
• Ratchet
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• Torx T30 screwdriver
• Axle nut socket, 35mm
• Ball joint separator (specialty)
• Hub puller or slide hammer (specialty)
• Rubber mallet
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front wheel hub and bearing assembly - Qty: 1
• Front axle nut - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the wheel lug nuts before lifting the vehicle.
• If the axle nut has a staked edge, straighten it before removal.
• Use penetrating oil on the axle nut and hub bolts before starting.
• Have a helper press the brake pedal if needed when removing the axle nut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

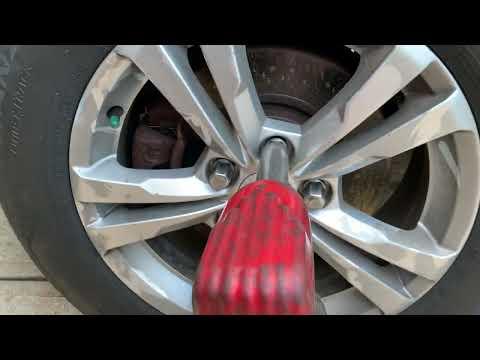

• Use a breaker bar and socket to loosen the lug nuts slightly while the tire is still on the ground.
• Lift the front of the vehicle with a floor jack.
• Place jack stands under the proper front support points.
• Remove the wheel.

Step 2: Remove the brake caliper and rotor

• Use a 15mm socket to remove the caliper bracket bolts.
• Lift the caliper and bracket off as an assembly if possible.
• Hang the caliper with a secure support; do not let it dangle.
• Remove the rotor by hand. If stuck, tap it gently with a rubber mallet.

Step 3: Remove the axle nut

• Use a 35mm axle nut socket and breaker bar to remove the axle nut.
• If the axle turns, have a helper hold the brake pedal or use a pry bar carefully.
• Pull the axle splines back slightly so they are free from the hub.

Step 4: Disconnect the steering and suspension connection

• Use a 18mm socket or 21mm socket to remove the lower ball joint or related knuckle fasteners, depending on what is equipped.
• Use a ball joint separator (specialty) if the knuckle is stuck.
• Do not hammer on the axle threads.

Step 5: Remove the hub and bearing assembly

• Use a Torx T30 screwdriver or the correct socket to remove the hub retaining bolts from the back of the knuckle.
• Spray penetrating oil around the hub flange if it is rusted in place.
• Use a hub puller or slide hammer (specialty) to remove the hub assembly from the steering knuckle.
• If needed, tap around the flange with a rubber mallet to break it free.

Step 6: Clean the mounting surface

• Use a wire brush to clean rust and debris from the knuckle hub bore.
• Wipe the area clean with brake cleaner.
• Clean metal helps the new hub seat properly.

Step 7: Install the new hub and bearing assembly

• Position the new hub assembly into the knuckle.
• Install the hub bolts by hand first to avoid cross-threading.
• Use a torque wrench to tighten the hub bolts to the manufacturer specification for your Equinox.
• Slide the axle splines through the hub.
• Install a new axle nut and snug it down.

Step 8: Reassemble the brakes

• Reinstall the rotor.
• Install the caliper and bracket.
• Use a 15mm socket to tighten the caliper bracket bolts.
• Torque to the manufacturer specification for your Equinox.

Step 9: Final tighten the axle nut and wheel nuts

• Reinstall the wheel and hand-tighten the lug nuts.
• Lower the vehicle enough for the tire to stay planted.
• Use a 35mm axle nut socket and torque wrench to tighten the axle nut to the manufacturer specification for your Equinox.
• Stake or lock the axle nut if the replacement nut requires it.
• Use a torque wrench to tighten the wheel lug nuts in a star pattern to the manufacturer specification for your Equinox.

---

✅ After Repair

• Spin the wheel by hand and listen for scraping or clicking.
• Check for play by rocking the wheel at the 12 and 6 o’clock positions.
• Test drive at low speed first.
• Listen for noise changes while turning left and right.
• Recheck axle nut and lug nut torque after the road test.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $260-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
