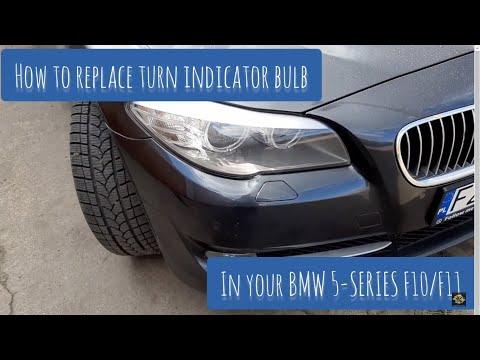

🔧 550i - Front Turn Signal Bulb Replacement

Your 550i’s front turn signal may be a traditional replaceable bulb or an integrated LED unit depending on the headlight option. The access is typically from the rear of the headlight through the wheel-well liner area.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

Assumption: I’m covering both bulb-style and LED-style setups.

---

⚠️ Safety & Precautions

• ⚠️ Let headlights cool completely before touching anything.
• ⚠️ Support the car on jack stands if you lift it; never rely on a jack alone.
• ⚠️ Avoid touching a new bulb’s glass with bare fingers; oils can shorten bulb life.
• ⚠️ Keep keys away from the car so lights can’t turn on unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• Breaker bar
• Torque wrench (20-200 Nm range)
• Torx T20 bit
• Torx T25 bit
• 8mm socket
• Ratchet (3/8" drive)
• Trim clip removal tool
• Flat trim pry tool
• Flashlight
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber) - Replace in pairs - Qty: 2
• Headlight rear access cap seal (if damaged) - Qty: 1
• Fender liner clips/screws (assortment) - Qty: 1
• Front turn signal LED module (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the steering wheel fully away from the side you’re working on (gives more room).
• Turn ignition OFF and remove the key/fob from the car.
• If you’ll remove the wheel, slightly loosen the lug bolts first using a 17mm socket and breaker bar.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Gain access through the wheel well

• If you want maximum space, lift the front corner using a floor jack, place a jack stand under a safe support point, and set wheel chocks on the opposite wheels.
• Optional: Remove the wheel using a 17mm socket.
• Remove or loosen the front portion of the fender liner (wheel-well liner) using Torx T20 bit, Torx T25 bit, and an 8mm socket.
• Pop plastic clips with a trim clip removal tool. (This tool is a fork-shaped pry tool that lifts clips without breaking them.)

Step 2: Locate the turn signal access on the back of the headlight

• Use a flashlight and look behind the headlight housing from the wheel-well opening.
• Find the rear access cover/cap and remove it by hand; if tight, gently help with a flat trim pry tool.
• Tip: Keep screws/clips in one small container.

Step 3A: If your 550i has a replaceable turn signal bulb

• Identify the turn signal bulb holder/socket (it typically twists to unlock).
• Twist the socket counterclockwise by hand and pull it straight out.
• Remove the bulb from the holder (most pull straight out; some are a slight twist).
• Install the new amber bulb while wearing nitrile gloves.
• Reinstall the bulb holder and twist clockwise until fully locked.

Step 3B: If your 550i has an integrated LED front turn signal

• If you do not see a removable bulb and instead see an LED module/connector, the turn signal is LED-style.
• Disconnect the electrical connector by pressing the lock tab and pulling straight back.
• If the LED module is serviceable on your headlight, remove its fasteners using a Torx T20 bit and swap the module.
• If there is no separate removable module, the turn signal is not bulb-serviceable and the repair may require headlight repair/replacement.

Step 4: Reassemble the wheel-well liner and wheel

• Reinstall the headlight access cap. Make sure it seals evenly all the way around.
• Reposition the fender liner and reinstall screws/clips using Torx T20 bit, Torx T25 bit, and 8mm socket (snug only—don’t strip plastic).
• If you removed the wheel, install the lug bolts by hand first, then tighten with a torque wrench: Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Test the turn signal and hazards on both sides.
• Check for a fast-blink (can indicate the bulb isn’t seated or the wrong bulb type).
• Make sure the headlight rear cap is fully installed to prevent moisture inside the headlight.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$300 (parts + labor)

DIY Cost: $15-$120 (parts only)

You Save: $105-$180 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
