🔧 XT5 - Front Turn Signal Bulb Replacement

On your XT5, the “front turn signal” can be either a replaceable amber bulb (serviceable from the wheel-well area) or an LED built into the headlamp (not a simple bulb). I’ll show you both paths so you can match what you see and fix it the right way.

Difficulty Level: Beginner | Estimated Time: 0.5-1.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Park on level ground and set the parking brake.
• ⚠️ If you jack up the front, always support with jack stands before working near the wheel well.
• ⚠️ Let the headlamp area cool before reaching behind it.
• ⚠️ Avoid touching a new halogen bulb’s glass with bare fingers (skin oil can shorten bulb life).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• Torx T15 screwdriver
• 7mm socket
• Ratchet (3/8")
• Extension (6")
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• Torque wrench (10-150 ft-lbs)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb (amber, serviceable type) - Qty: 1
• Fender liner push clips - Qty: 2-6

---

📋 Before You Begin

• Turn the steering wheel fully away from the side you’re working on (gives more hand room).
• Chock a rear wheel with wheel chocks.
• If you need more space, lift that front corner using a floor jack and support it with jack stands.
• A trim clip removal tool is a small forked tool that pops plastic clips out without breaking them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which system you have (bulb vs LED)

• Turn the hazard lights on and watch the front corner of the headlamp with a flashlight.
• If you can see an amber “bulb-shaped” light source, follow Steps 2-7 (serviceable bulb).
• If it’s a smooth LED bar/element and there’s no bulb access, skip to Step 8 (LED/non-serviceable style).

Step 2: (Optional) Remove the front wheel for easier access

• Loosen the lug nuts slightly using a 19mm socket and ratchet (3/8") while the tire is on the ground.
• Lift with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove lug nuts with the 19mm socket and set the wheel aside.

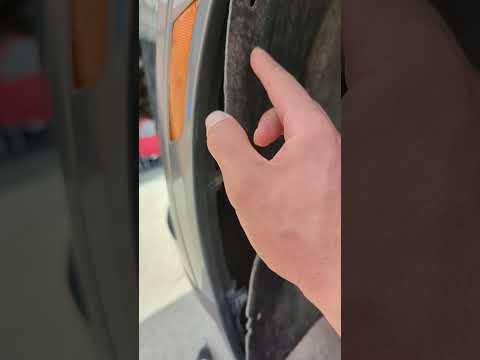

Step 3: Pull back the front fender liner (wheel-well splash shield)

• Remove the plastic push-clips using a trim clip removal tool.
• Remove any small screws using a Torx T15 screwdriver or 7mm socket with a ratchet (3/8") and extension (6").
• Gently pull the liner back just enough to reach behind the headlamp.

Step 4: Find the turn signal bulb socket

• Reach behind the headlamp and locate the turn signal socket (it will twist-lock into the lamp housing).
• Use a flashlight to confirm you’re on the turn signal socket, not the low beam.

Step 5: Remove the bulb socket

• Twist the socket counterclockwise by hand; if it’s tight, use nitrile gloves for grip.
• Pull the socket straight out.

Step 6: Replace the bulb

• Pull the old bulb straight out of the socket using nitrile gloves.
• Push the new front turn signal bulb (amber, serviceable type) into the socket until fully seated.
• Tip: Don’t touch the bulb glass.

Step 7: Reinstall and test

• Reinsert the socket and twist clockwise by hand until it locks.
• Turn hazards on and confirm the bulb flashes normally.
• Reposition the liner and reinstall clips/screws using the trim clip removal tool, Torx T15 screwdriver, and/or 7mm socket.
• If you removed the wheel, install lug nuts with a 19mm socket, lower the vehicle, then Torque to 140 Nm (103 ft-lbs) using a torque wrench (10-150 ft-lbs).

Step 8: If your XT5 has an LED front turn signal (no replaceable bulb)

• LED turn signals in the headlamp are typically not a “bulb” you can swap; the repair is usually a headlamp/module replacement.
• Before buying parts, verify it’s not a wiring/connector issue: access behind the lamp as in Steps 2-4 and check the connector is fully seated (use a flashlight and nitrile gloves).
• If the connector looks good and the turn signal still doesn’t work, the next step is diagnostic testing (scan tool + circuit checks) before replacing the headlamp assembly.

---

✅ After Repair

• Verify left and right turn signals and hazards work.
• Check for fast/“hyper” flashing; that can indicate the wrong bulb type or an LED module fault.
• Make sure the fender liner is secured so it can’t rub the tire.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$250 (bulb + labor) or $900-$2,200 (if headlamp/LED module required)

DIY Cost: $10-$40 (bulb/clips) or $700-$1,800 (if headlamp/LED module required)

You Save: $80-$210 (bulb job) by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours (bulb access).

---
