🔧 Grand Cherokee - Front Turn Signal Bulb Replacement

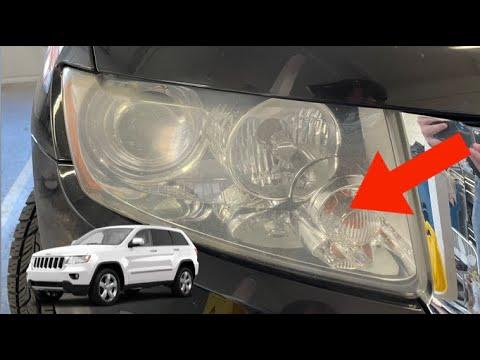

On your Grand Cherokee, the front turn signal “bulb” is accessed from behind the headlight (usually through the front wheel-well liner). The main job is creating enough access, twisting the turn-signal socket out, and swapping the bulb without damaging the new one.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and set the parking brake.
• 🧤 Let the headlight area cool; bulbs and housings get hot.
• 🔋 Turn ignition OFF and remove key; avoid shorting the bulb socket.
• 👓 Use safety glasses when working under the fender liner.
• ⚡ If you choose to remove the wheel, always support with jack stands (never a jack alone).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Flashlight
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• Ratchet
• Torque wrench (ft-lb)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm socket

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal bulb - Qty: 1 (recommended: replace in pairs)
• Fender liner push clips - Qty: 2-6 (as needed)

---

📋 Before You Begin

• Turn the steering wheel fully away from the side you’re working on (this creates more room in the wheel well).
• If access is tight, plan to remove the front wheel on that side for extra space.
• Tip: Match the bulb number from the old bulb.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the correct side and access path

• Turn on the hazard lights and identify which front turn signal is out.
• Turn ignition OFF when confirmed.
• Use a flashlight to locate the rear of the headlight housing through the wheel well.

Step 2: Create access at the front wheel-well liner

• Turn the steering wheel away from the side you’re working on to open up space.
• Remove the small liner fasteners closest to the front bumper area using an 8mm socket and ratchet.
• Remove any plastic push-clips using a trim clip removal tool (a small pry tool that pops plastic clips out without breaking them).
• Gently pull the liner back just enough to reach behind the headlight.

Step 3 (Optional): Remove the front wheel for more room

• Crack the lug nuts loose with a 21mm socket and ratchet before lifting.
• Lift using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lug nuts with the 21mm socket.
• Reinstall later and Torque to 135 Nm (100 ft-lbs) using a torque wrench (ft-lb).

Step 4: Remove the turn signal bulb socket

• Reach behind the headlight housing and find the turn signal socket (it will have wiring going into a twist-lock base).
• Rotate the socket counterclockwise by hand; if tight, use a nitrile gloves grip and steady pressure (do not force with pliers).
• Pull the socket straight out.

Step 5: Replace the bulb

• Remove the old bulb from the socket by pulling it straight out (most are a push-in style).
• Install the new bulb by pushing it straight in until fully seated.
• If the bulb is glass, avoid touching it with bare fingers; use nitrile gloves. Skin oils can shorten bulb life.
• Tip: Compare old/new bulb length and base.

Step 6: Reinstall socket and liner

• Insert the socket into the headlight housing and rotate clockwise until it locks.
• Reposition the liner and reinstall screws with an 8mm socket and ratchet.
• Reinstall push-clips using the trim clip removal tool and hand pressure until seated.

Step 7: Function check

• Turn ignition ON and test turn signal and hazards.
• Walk around the front and confirm brightness and blink rate look normal.

---

✅ After Repair

• If the turn signal “hyper-flashes” (blinks fast), the bulb may be wrong type or not seated fully—turn OFF and recheck seating.
• If it still doesn’t work, inspect the socket for corrosion and check the related fuse.
• If your front turn signal is an LED module (no removable bulb), the repair may require headlamp/LED module replacement instead of a bulb.

---

💰 DIY vs Shop Cost

Shop Cost: $80-$180 (parts + labor)

DIY Cost: $10-$35 (parts only)

You Save: $70-$145 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
