🔧 Patriot - Front Turn Signal Bulb Replacement

You’ll access the back of the front headlamp housing, remove the turn-signal bulb socket, and swap in a new amber bulb. This fixes a burned-out bulb and restores proper signaling (and usually stops fast-blink).

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hours

Assumption: Your Patriot uses an amber dual-filament front turn/park bulb in the headlamp.

---

⚠️ Safety & Precautions

• ⚠️ Work on a cool headlamp area to avoid burns.
• ⚠️ Set the parking brake and keep the shifter in 1st gear when lifting.
• ⚠️ Use jack stands—never rely on a floor jack alone.
• ⚠️ Don’t touch the new bulb glass with bare fingers; oils can shorten bulb life.
• 🔋 Battery disconnect is not required, but keep the lights switched OFF while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Nitrile gloves
• Safety glasses
• Flashlight
• Trim clip removal tool
• Phillips #2 screwdriver
• 8mm socket
• 1/4" drive ratchet
• 1/4" drive extension (6")
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front turn signal / parking light bulb (amber, dual-filament) - Qty: 2
• Fender liner clips - Qty: 2-6

---

📋 Before You Begin

• Park on level ground, steering wheel straight, parking brake set.
• Place wheel chocks behind the rear wheels.
• Turn the lights OFF and remove the key.
• Tip: Replace bulbs in pairs for matching color.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get access to the bulb area

• Turn the front wheel to the side you’re working on (left side: turn wheel right; right side: turn wheel left) to open up space in the wheel well.
• If your hands don’t fit, lift that front corner using a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Use wheel chocks to keep the Patriot from rolling.

Step 2: Pull back the front fender liner

• Use a trim clip removal tool to remove the plastic push-clips along the front edge of the wheel-well liner.
• If equipped with screws, remove them with an 8mm socket + 1/4" drive ratchet (use a 1/4" drive extension (6") as needed).
• Pull the liner back just enough to reach behind the headlamp. Tip: Don’t crease the liner.

Step 3: Locate the front turn signal bulb socket

• Use a flashlight to look behind the headlamp housing.
• Find the turn-signal/park bulb socket (it’s a twist-lock socket going into the headlamp).
• Wear nitrile gloves and safety glasses.

Step 4: Remove the bulb socket

• Grip the socket firmly and rotate it counterclockwise about a quarter-turn.
• Pull the socket straight out of the headlamp.

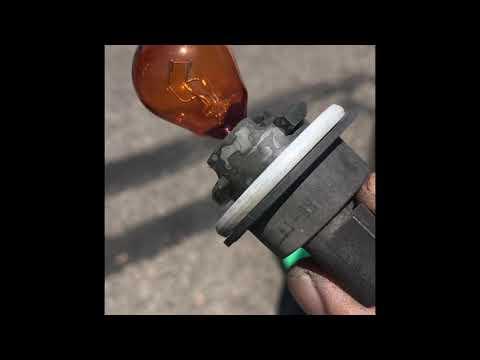

Step 5: Replace the bulb

• Pull the old bulb straight out of the socket.
• Install the new front turn signal / parking light bulb (amber, dual-filament) by pushing it straight in until fully seated.
• Tip: If you touched the glass, wipe it clean.

Step 6: Reinstall the socket and test

• Insert the socket back into the headlamp and rotate clockwise until it locks.
• Turn the ignition to ON and test the turn signal and parking light for that side.
• If it doesn’t work, turn lights OFF, remove the socket, and re-seat the bulb firmly.

Step 7: Reassemble the fender liner

• Reposition the liner and reinstall clips using a trim clip removal tool.
• Reinstall any screws using an 8mm socket + 1/4" drive ratchet (or Phillips #2 screwdriver if applicable).
• If you lifted the vehicle, lower it safely using the floor jack (rated 2-ton minimum).

---

✅ After Repair

• Verify both front turn signals flash at a normal speed (left and right).
• Check parking lights and hazards to confirm the bulb also works in those modes.
• Make sure the fender liner is secured so it can’t rub the tire.

---

💰 DIY vs Shop Cost

Shop Cost: $75-$160 (parts + labor)

DIY Cost: $10-$40 (parts only)

You Save: $65-$120 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hours.

---
