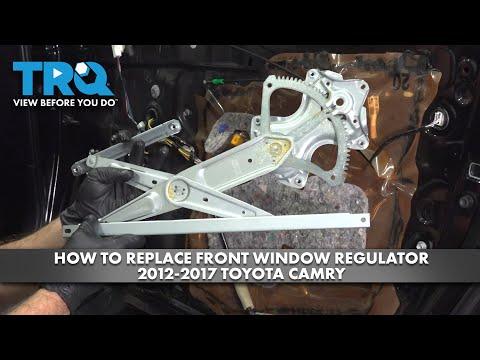

🔧 Camry - Front Window Regulator Replacement

Replacing the front window regulator fixes a window that won’t move, moves crooked, or makes grinding/clicking noises. You’ll remove the door trim panel, secure the glass, swap the regulator (and motor if needed), then reassemble and re-initialize the auto-up/down.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours (one door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the 12V battery negative cable before starting to prevent accidental window movement and electrical shorts.
• ⚠️ Support the window glass at all times; it can drop suddenly and shatter or cut you.
• ⚠️ Keep your hands clear of the regulator scissors/cable path while moving parts.
• ⚠️ Use painter’s tape to hold the glass; do not rely on friction alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Work gloves
• Trim removal tool set
• Phillips #2 screwdriver
• 10mm socket
• 1/4" ratchet
• 3" extension for 1/4" ratchet
• Torque wrench (5–25 Nm range)
• Needle-nose pliers
• Painter’s tape (1.5" wide)
• Plastic razor blade scraper
• Magnetic pickup tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator (left or right, as needed) - Qty: 1
• Front window regulator motor - Qty: 1 (only if your motor is bad or not included)
• Door panel retainer clips - Qty: 6-12 (handy to have; some usually break)
• Butyl tape (door vapor barrier adhesive) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Lower the window to about halfway if it still moves (this gives access to the glass clamps).
• Disconnect the 12V battery negative cable using a 10mm socket. Wait 2 minutes before unplugging connectors.
• Have painter’s tape ready to secure the glass to the door frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front door trim panel

• Use a trim removal tool set to gently pry up the window switch panel and unplug the electrical connectors.
• Use a Phillips #2 screwdriver to remove the screw(s) behind the inner handle trim and/or armrest pocket (locations vary slightly by door).
• Use the trim removal tool set to pop the door panel clips around the edges, then lift the panel upward to unhook it from the window ledge.
• Unclip the door handle cable(s) carefully. (A cable latch is a small plastic clip that locks the cable end into place.)

Step 2: Remove the vapor barrier (water shield)

• Use a plastic razor blade scraper to peel the vapor barrier off slowly without tearing it.
• Set it aside clean-side up. You’ll reseal it later with butyl tape.

Step 3: Position the glass so you can access the clamp bolts

• If the old regulator still moves: temporarily reconnect the window switch, reconnect the 12V negative, and use the switch to align the glass clamp bolts with the access holes.
• Disconnect the 12V negative again using a 10mm socket, then unplug the switch.
• If the regulator is stuck: you may need to manually slide the glass carefully to line up the clamp bolts.

Step 4: Secure the glass so it can’t drop

• Use painter’s tape (1.5" wide) to tape the glass to the top door frame in at least 2–3 strips.
• Tape from outside over the top to inside.

Step 5: Detach the glass from the regulator

• Through the door access holes, use a 10mm socket with a 3" extension for 1/4" ratchet to loosen/remove the glass clamp bolts.
• Gently lift the glass fully up by hand and add more painter’s tape to keep it secure.
• Torque spec (reassembly): Torque to 9 Nm (80 in-lbs) for the glass clamp bolts.

Step 6: Unplug the regulator motor and remove the regulator assembly

• Unplug the window motor connector (press the lock tab, then pull). Use needle-nose pliers only if needed, and don’t crush the connector.
• Use a 10mm socket to remove the regulator mounting bolts.
• Carefully maneuver the regulator out through the large door opening. Use a flashlight to avoid snagging the cables.
• Torque spec (reassembly): Torque to 8 Nm (71 in-lbs) for regulator mounting bolts.

Step 7: Transfer or install the window motor (if required)

• If your new regulator doesn’t include the motor, move the motor over from the old assembly.
• Use a 10mm socket to remove/install the motor bolts.
• Torque spec (reassembly): Torque to 6 Nm (53 in-lbs) for motor bolts.

Step 8: Install the new regulator

• Slide the new regulator into the door and hand-start all bolts using a 10mm socket so it doesn’t cross-thread.
• Tighten the regulator mounting bolts with a torque wrench (5–25 Nm range). Torque to 8 Nm (71 in-lbs).
• Plug in the window motor connector until it clicks.

Step 9: Reattach the glass to the regulator

• Remove some tape, then lower the glass carefully into the regulator clamps.
• Install/tighten the glass clamp bolts using a 10mm socket.
• Tighten with a torque wrench (5–25 Nm range). Torque to 9 Nm (80 in-lbs).
• Remove all painter’s tape.

Step 10: Quick function check before reassembly

• Reconnect the 12V battery negative cable using a 10mm socket.
• Plug in the window switch and test the window movement slowly.
• Watch for binding, crooked travel, or clicking. If it binds, stop and check that the glass sits correctly in its front/rear guides.

Step 11: Reinstall the vapor barrier and door panel

• Apply butyl tape to reseal the vapor barrier. Press it firmly by hand all the way around.
• Reconnect door handle cable(s), then hang the door panel on the top lip and press the clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver.
• Reconnect the window switch panel connectors and snap the switch panel back in using the trim removal tool set if needed.

---

✅ After Repair

• Initialize auto up/down: with the door closed, run the window all the way down (hold the switch 2 seconds), then all the way up (hold 2 seconds).
• Confirm the window seals well at the top and doesn’t wind-noise on a short drive.
• Recheck that the door handle works from inside and outside.
• If any door panel clips are loose, replace them to prevent rattles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $330-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
