🔧 Corolla - Front Window Regulator Replacement

The front window regulator is the mechanism that raises/lowers the door glass. Replacement usually fixes a window that won’t move, moves crooked, or makes grinding/clicking noises.

Quick questions (so I match the steps): Which front door—driver or passenger? And is your A/C window power (switch-operated) or manual crank?

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Support the glass before unbolting it; it can drop and shatter.
• ⚠️ Keep fingers clear of the regulator arms/cables when testing.
• ⚠️ If your door has any SRS-related wiring (yellow connectors), do not probe it; leave it alone.
• ⚠️ Recommended: disconnect the negative battery cable before unplugging door switches.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4" drive ratchet
• 6" socket extension (1/4" drive)
• Phillips #2 screwdriver
• Flat trim removal tool
• Needle-nose pliers
• Pick tool
• Painter’s tape (1"-2" wide)
• Razor blade
• Work light
• Magnetic parts tray
• Nitrile gloves
• Safety glasses
• Torque wrench (in-lb)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door panel clip set - Qty: 1 (optional but recommended)
• Butyl tape (door vapor barrier adhesive) - Qty: 1 (if original won’t reseal)

---

📋 Before You Begin

• 🅿️ Park on level ground and remove the key.
• 🔋 Disconnect the battery negative cable using a 10mm socket.
• 🪟 If the window still moves, run it to about halfway down so the glass-to-regulator bolts line up with the access holes.
• 🧠 A “vapor barrier” is the plastic sheet behind the door panel; it must be resealed to prevent water leaks.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the interior door panel

• Use a flat trim removal tool to gently pry up the window switch panel; unplug the connector(s) by pressing the lock tab.
• Use a Phillips #2 screwdriver to remove the screw(s) in the pull handle/armrest area (locations vary slightly driver vs passenger).
• Use the flat trim removal tool to pop the door panel clips around the edges, then lift the panel straight up and off the window ledge.
• Unplug any remaining connectors with a pick tool (release tab), and set the panel aside.

Step 2: Remove the vapor barrier (plastic sheet)

• Use a razor blade to cut/loosen the butyl adhesive as needed.
• Peel the barrier back slowly so you can reuse it; avoid tearing it.
• Keep the sticky butyl clean for resealing.

Step 3: Secure the window glass

• Lift the glass fully up by hand if possible.
• Use painter’s tape to tape the glass to the door frame (several long strips from outside over the top and down inside).

Step 4: Disconnect the glass from the regulator

• Look through the door access holes and locate the two glass clamp bolts.
• Use a 10mm socket, ratchet, and extension to remove/loosen the bolts holding the glass to the regulator clamps.
• Carefully raise the glass fully by hand and add more painter’s tape to hold it secure.
• When reinstalling later: Torque to 8 Nm (71 in-lbs).

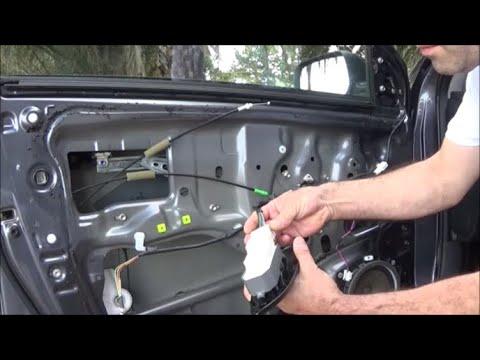

Step 5: Remove the regulator and motor assembly

• Unplug the window motor electrical connector (press the tab; use a pick tool if stuck).
• Use a 10mm socket, ratchet, and extension to remove the regulator mounting bolts.
• Maneuver the regulator assembly out through the large access opening.
• When reinstalling later: Torque regulator mounting bolts to 10 Nm (89 in-lbs).

Step 6: Transfer the motor (only if your new regulator doesn’t include it)

• Use a 10mm socket (or Phillips #2 screwdriver if your motor uses screws) to remove the motor fasteners.
• Move the motor to the new regulator in the same position and reinstall fasteners.
• Do not power the motor while it’s loose.

Step 7: Install the new regulator

• Slide the new regulator into the door and start all bolts by hand.
• Use a 10mm socket and ratchet to snug them, then torque to 10 Nm (89 in-lbs) with an in-lb torque wrench.
• Plug in the motor connector until it clicks.

Step 8: Reattach the glass to the regulator

• Remove some painter’s tape and carefully lower the glass into the regulator clamps.
• Install the two clamp bolts using a 10mm socket.
• Torque to 8 Nm (71 in-lbs).

Step 9: Test the window before reassembly

• Reconnect the battery using a 10mm socket.
• Temporarily plug in the window switch and cycle the window up/down a few times.
• Listen for binding and verify the glass stays straight in the run channels.
• If it tilts, loosen the regulator bolts with a 10mm socket, align slightly, and retighten to 10 Nm (89 in-lbs).

Step 10: Reinstall the vapor barrier and door panel

• Disconnect the battery again using a 10mm socket (recommended while reconnecting panel wiring).
• Press the vapor barrier back into the butyl; add butyl tape if it won’t seal.
• Reconnect all door wiring connectors.
• Hook the door panel over the window ledge, then press clips in around the perimeter (use your hand pressure).
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using your hands (no tools).

---

✅ After Repair

• 🔋 Reconnect the battery negative cable using a 10mm socket.
• 🪟 Run the window fully down, then fully up, and confirm smooth movement and proper sealing.
• 💧 After your next car wash/rain, check the door for water leaks (a poorly sealed vapor barrier is the usual cause).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $90-$250 (parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
