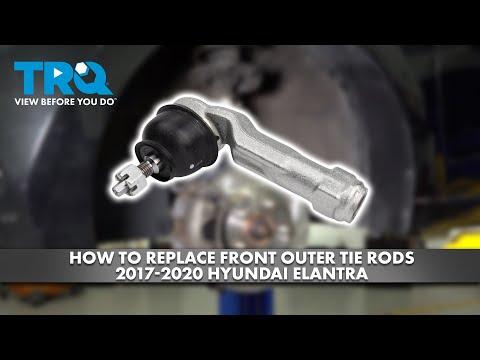

🔧 Elantra - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack (via the inner tie rod) to the steering knuckle, and it’s what allows the wheel to turn left/right. Replacing it restores steering tightness and fixes clunks, wandering, or uneven tire wear caused by a loose joint.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Support your Elantra on jack stands before working under/around the suspension.
• ⚠️ Keep fingers clear when separating the joint—parts can pop loose suddenly.
• ⚠️ Do not hammer directly on the steering knuckle where the stud seats; it can deform the tapered hole.
• ⚠️ After replacement, you should get a professional alignment—tie rod changes affect toe and can ruin tires quickly.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Lug wrench (21mm)
• Metric socket set (10mm-22mm)
• Ratchet
• Breaker bar
• Torque wrench (10-200 Nm range)
• Open-end wrench set (14mm-22mm)
• Needle-nose pliers
• Paint marker
• Tape measure
• Penetrating oil
• Tie rod end puller (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Jam nut - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly using a 21mm lug wrench before lifting.
• Spray penetrating oil on the tie rod end jam nut and the tie rod stud nut, and let it soak for 5-10 minutes.
• Plan for an alignment after the repair. We’ll do a “close-enough” setup so it can be driven to the shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use a floor jack to lift at the front jacking point, then support the car securely with jack stands.
• Remove the wheel using a 21mm lug wrench.

Step 2: Mark the current tie rod position (important)

• Use a paint marker to mark the position of the jam nut on the tie rod (mark the nut and the threads).
• Use a tape measure to measure from a fixed point on the outer tie rod end to the jam nut, and write it down. This helps keep alignment close.

Step 3: Loosen the jam nut

• Hold the inner tie rod/rod section with an open-end wrench (size varies) so it doesn’t twist.
• Use another open-end wrench on the jam nut and break it loose (turn the jam nut counterclockwise).

Step 4: Remove the cotter pin and stud nut

• Straighten and remove the cotter pin from the tie rod stud using needle-nose pliers.
• Remove the tie rod end nut using a ratchet and the correct metric socket.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) on the joint and tighten it until the taper pops free.
• If it’s stuck, apply more penetrating oil and re-tighten the puller.
• Once separated, lift the tie rod end stud out of the knuckle by hand.

Step 6: Unscrew the old outer tie rod end

• Spin the outer tie rod end off the threaded inner tie rod by hand.
• Count the exact number of turns it takes to remove it and write it down. Match the same turns on install.

Step 7: Install the new outer tie rod end

• Thread the new tie rod end onto the inner tie rod the same number of turns you counted.
• Line up your paint marks and measurement from Step 2 as closely as possible.

Step 8: Attach the stud into the steering knuckle

• Insert the stud into the knuckle by hand.
• Install the new stud nut and tighten using a torque wrench and correct metric socket.
• Torque to 35-45 Nm (26-33 ft-lbs), then continue tightening just enough to align the castle nut slot with the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the ends over securely.

Step 9: Tighten the jam nut

• Hold the tie rod/inner section with an open-end wrench.
• Tighten the jam nut against the new outer tie rod end using an open-end wrench.
• Torque to 50-70 Nm (37-52 ft-lbs)

Step 10: Reinstall wheel and lower the car

• Install the wheel and snug lug nuts using a 21mm lug wrench.
• Lower the car using a floor jack, then torque the lug nuts in a star pattern with a torque wrench.
• Torque to 88-108 Nm (65-80 ft-lbs)

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock while parked to confirm nothing binds or clicks.
• Test drive at low speed first. The steering wheel may be off-center until alignment is done.
• Get a 4-wheel alignment as soon as possible to prevent rapid tire wear.
• Recheck the jam nut and lug nut torque after 25-50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor, alignment often extra)

DIY Cost: $30-$90 (parts only)

You Save: $150-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
