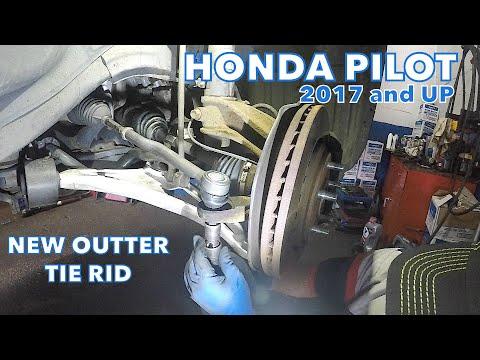

🔧 Pilot - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the front knuckle, and it’s a common wear item that can cause clunks, loose steering, or uneven tire wear. The key is to install the new one at the same length as the old one, then get a proper alignment.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Pilot on jack stands; never rely on a jack alone.
• 🧤 Wear safety glasses; rust and debris can fall when separating the joint.
• 🔥 Don’t work near hot brakes/rotors if you just drove.
• 🔩 Always install a new cotter pin; never reuse the old one.
• 📏 Plan for a professional alignment after replacement to prevent tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• 1/2" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20–200 N·m range)
• Needle-nose pliers
• Side cutters
• 17mm wrench
• 22mm wrench
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, steering wheel straight, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 📏 Use a tape measure to note the distance from the tie rod end to a fixed point (or count turns during removal) so the new part goes on close to the same alignment.
• 🧼 Spray penetrating oil on the jam nut and the tie rod end threads, then wait 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 19mm socket and breaker bar to loosen the front wheel lug nuts about 1/2 turn.

Step 2: Raise and support the front corner

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and give it a firm shake to confirm it’s stable.
• Remove the wheel using a 19mm socket and ratchet.

Step 3: Mark the current adjustment

• Use a paint marker to mark the position of the jam nut against the tie rod. (A jam nut is the thin nut that locks the alignment adjustment in place.)
• Use a tape measure to record a reference measurement from the outer tie rod end to a fixed spot on the inner tie rod, if possible.

Step 4: Loosen the jam nut

• Hold the inner tie rod flat/hex area (if accessible) with a 17mm wrench.
• Loosen the jam nut using a 22mm wrench by turning it counterclockwise (lefty-loosey).
• Back the jam nut off a few turns, but leave it on the threads for now.

Step 5: Remove the cotter pin and castle nut

• Clean the stud/castle nut area with a wire brush.
• Straighten and pull the cotter pin using needle-nose pliers; cut it if needed using side cutters.
• Remove the castle nut using the appropriate socket and a ratchet (commonly 17mm on this setup).

Step 6: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) and tighten it to pop the tapered stud out of the knuckle. (A tie rod end puller is a screw-type tool that presses the joint apart without hammering.)
• If it’s stuck, add penetrating oil and retry.

Step 7: Remove the old tie rod end (count turns)

• Spin the outer tie rod end off by hand while counting the exact number of turns until it comes off.
• Write the number down.

Step 8: Install the new tie rod end

• Thread the new outer tie rod end onto the inner tie rod using the same number of turns you counted during removal.
• Snug the jam nut by hand against the new tie rod end (do not fully torque yet).

Step 9: Reattach to the knuckle and torque fasteners

• Insert the tie rod stud into the knuckle.
• Install the castle nut and tighten with a socket and torque wrench: Torque to 49 N·m (36 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten the nut slightly more until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers, then bend the ends over securely.
• Hold the inner tie rod with a 17mm wrench and tighten the jam nut with a 22mm wrench: Torque to 55 N·m (41 ft-lbs).

Step 10: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench: Torque to 127 N·m (94 ft-lbs).

---

✅ After Repair

• 🚗 Start the engine and turn the steering wheel lock-to-lock while parked; listen for any clicking or binding.
• 🔍 Test drive at low speed first; confirm the steering wheel is centered and the Pilot tracks straight.
• 📐 Get a front-end alignment as soon as possible (same day if you can) to avoid tire wear.
• 🛞 Recheck lug nut torque after 25–50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor + alignment often extra)

DIY Cost: $35-$120 (parts only)

You Save: $130-$465 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
