🔧 Tie Rod End Replacement

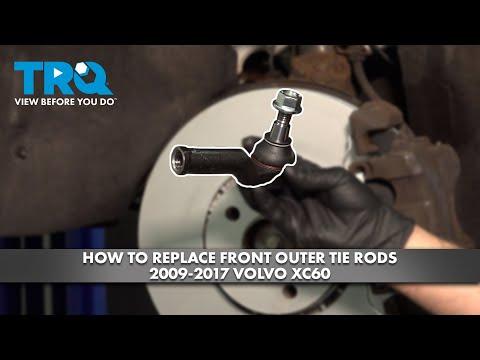

The front outer tie rod end connects the steering rack to the steering knuckle and controls wheel direction. Replacing it restores steering feel and helps fix clunks, looseness, and uneven tire wear. After this repair, the wheel alignment should be checked and adjusted.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on a level surface with the parking brake fully applied.
• Support the vehicle securely with jack stands; never rely on a jack alone.
• Do not let the steering knuckle hang by the brake hose.
• Mark the old tie rod position before removal to help keep toe close enough for driving to the alignment shop.
• An alignment is required after this repair.
• No battery disconnect is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• 21mm lug socket
• Ratchet
• Breaker bar
• 19mm wrench
• 21mm wrench
• Pliers
• Pry bar
• Hammer
• Torque wrench
• Ball joint separator (specialty)
• Tie rod end puller or separator tool (specialty)
• Paint marker
• Safety glasses
• Gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 2
• Castle nut and cotter pin hardware - Qty: 2

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Loosen the front wheel lug nuts slightly before lifting.
• Raise the front of the vehicle and support it with jack stands.
• Remove the front wheel on the side you are servicing.
• Replace tie rod ends in pairs if both sides show wear.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Expose the tie rod end

• Remove the front wheel using a 21mm lug socket.
• Locate the outer tie rod end where it attaches to the steering knuckle.
• Clean the area with a rag so you can see the threads and jam nut clearly.

Step 2: Mark the position

• Use a paint marker to mark the jam nut position on the inner tie rod.
• Count and note the number of exposed threads if possible.
• This helps get the alignment close enough to drive.

Step 3: Loosen the jam nut

• Hold the inner tie rod with a 19mm wrench if needed.
• Use a 21mm wrench to loosen the jam nut on the outer tie rod end.
• Do not remove the jam nut yet.

Step 4: Remove the tie rod end from the knuckle

• Remove the cotter pin with pliers if equipped.
• Remove the castle nut with a 21mm socket or 21mm wrench.
• Use a tie rod end puller or separator tool to pop the stud free from the steering knuckle.
• If needed, use a ball joint separator carefully and tap the knuckle lightly with a hammer.

Step 5: Remove the old tie rod end

• Spin the old tie rod end off the inner tie rod.
• Count the turns as you remove it.
• Record the count so the new part goes on close to the same position.

Step 6: Install the new tie rod end

• Thread the new tie rod end onto the inner tie rod the same number of turns as the old one.
• Make sure the boot is not twisted or damaged.
• Keep the new part oriented the same way as the old one.

Step 7: Reconnect the stud to the knuckle

• Insert the stud into the steering knuckle.
• Install the new castle nut and tighten it with a torque wrench.
• Torque to manufacturer specification for the tie rod end stud nut.
• Install the cotter pin and bend the ends fully with pliers.

Step 8: Tighten the jam nut

• Hold the tie rod end with a 21mm wrench if needed.
• Tighten the jam nut against the tie rod end with a 21mm wrench.
• Torque to manufacturer specification for the jam nut.

Step 9: Reinstall the wheel

• Reinstall the wheel and snug the lug nuts by hand.
• Lower the vehicle and tighten the lug nuts with a torque wrench.
• Torque to manufacturer specification for the wheel lug nuts.

Step 10: Verify steering movement

• Turn the steering wheel lock-to-lock and check for smooth movement.
• Look at the tie rod boot and joint to make sure nothing binds.
• Drive slowly and confirm the steering wheel is not off-center.

---

✅ After Repair

• Get a professional front-end alignment as soon as possible.
• Listen for clunks and check that the steering feels tight.
• Recheck lug nut torque after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment)

DIY Cost: $60-$140 (parts only)

You Save: $190-$310 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
