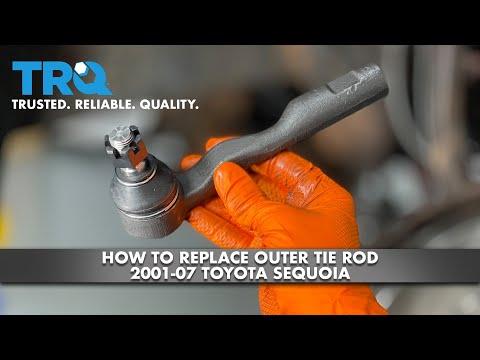

🔧 Tie Rod End - Replacement

Assumption: this is the front outer tie rod end. This repair restores steering feel and removes play at the front wheel. You’ll replace the worn end, set the new one in place, then get the alignment checked right away.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on a flat surface and keep the parking brake on.
• Use jack stands; never rely on a floor jack alone.
• Keep hands clear of suspension parts when steering components are loose.
• An alignment is required after this repair.
• No battery disconnect is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 19mm lug wrench
• 17mm wrench
• 19mm wrench
• 22mm wrench
• Torque wrench
• Pickle fork (specialty)
• Ball joint separator tool (specialty)
• Needle-nose pliers
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Alignment service - Qty: 1

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Mark the old tie rod end position with a paint marker to help preserve toe setting.
• After installation, drive only enough to reach an alignment shop.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front corner

• Use a 19mm lug wrench to loosen the front wheel lug nuts.
• Raise the front of the vehicle with a floor jack (rated 3-ton minimum).
• Support it with jack stands (rated for vehicle weight).
• Remove the wheel.

Step 2: Mark the current setting

• Use a paint marker to mark the tie rod end position on the threads.
• This helps keep the new part close to the old alignment setting.
• Count the exposed threads too.

Step 3: Remove the cotter pin and castle nut

• Use needle-nose pliers to straighten and pull the cotter pin from the tie rod stud.
• Use a 22mm wrench to remove the castle nut from the stud.
• If the stud spins, put light upward pressure under the joint with a jack and try again.

Step 4: Separate the tie rod end from the steering knuckle

• Use a pickle fork (specialty) or ball joint separator tool (specialty) to pop the stud free from the knuckle.
• Apply penetrating oil first if the joint is stuck.
• Protect the boot from extra damage.

Step 5: Remove the outer tie rod end

• Use a 17mm wrench to loosen the jam nut on the tie rod.
• Count the turns while unthreading the old tie rod end from the inner rod.
• Remove the old part.

Step 6: Install the new tie rod end

• Thread the new tie rod end on the same number of turns you counted during removal.
• Use a 17mm wrench to snug the jam nut, but do not fully tighten it yet.
• Insert the stud into the steering knuckle.

Step 7: Tighten the stud nut and secure it

• Use a 22mm wrench to install the castle nut.
• Torque to 67 Nm (49 ft-lbs).
• Continue tightening only until the cotter pin hole lines up.
• Install a new cotter pin with needle-nose pliers.

Step 8: Tighten the jam nut

• Use a 17mm wrench to tighten the jam nut against the tie rod end.
• Torque to 64 Nm (47 ft-lbs).
• Hold the tie rod end steady so it does not twist.

Step 9: Reinstall the wheel

• Install the wheel and hand-tighten the lug nuts.
• Lower the vehicle and use a 19mm lug wrench to finish tightening.
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock-to-lock to check for smooth movement.
• Look for boot twist, loose hardware, or binding.
• Drive slowly at first and listen for clunks or pulling.
• Schedule a professional alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$380 (parts + labor)

DIY Cost: $45-$110 (parts only)

You Save: $175-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
