🔧 Tundra - Outer Tie Rod End Replacement

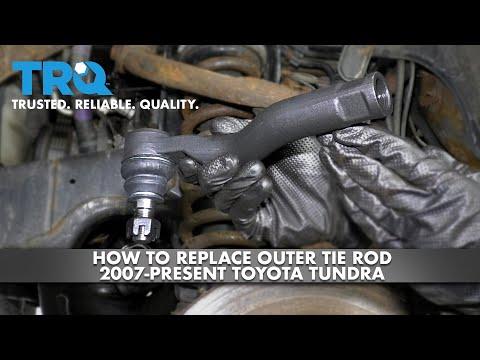

The outer tie rod end connects your steering rack to the steering knuckle. Replacing it restores tight steering and fixes play, clunks, or uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours (one side)

Assumption: Front outer tie rod end replacement; get an alignment after.

---

⚠️ Safety & Precautions

• 🛑 Support your Tundra on jack stands; never rely on a jack alone.
• 🧤 Keep hands clear while separating the joint; it can “pop” loose suddenly.
• 🧯 Chock the rear wheels and keep the transfer case in 2H; set the parking brake.
• 🔩 Use a new cotter pin; never reuse the old one.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive ratchet
• Breaker bar (1/2" drive)
• Torque wrench (20-200 ft-lbs)
• 19mm socket
• 24mm open-end wrench
• Needle-nose pliers
• Side cutters
• Paint marker
• Tape measure
• Tie rod end puller (specialty)
• Hammer (16 oz)
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Chassis grease (if tie rod end has a grease fitting) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Use a paint marker to mark the position of the jam nut on the tie rod (this helps keep alignment close).
• Measure from a fixed point (like the end of the inner tie rod) to the center of the outer tie rod stud using a tape measure; write it down.
• Spray penetrating oil on the jam nut threads and the tie-rod stud nut.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the wheel lug nuts

• Use a 21mm socket and breaker bar to loosen the front wheel lug nuts about 1 turn (do not remove yet).

Step 2: Lift and support the front corner

• Lift using a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the truck onto jack stands (rated 3-ton minimum).
• Remove the wheel using the 21mm socket and ratchet.

Step 3: Mark the current adjustment

• Use a paint marker to mark the jam nut’s position on the threads.
• Use a tape measure to confirm the measurement you recorded (this helps you install the new part close to the old setting).
• Getting it close helps your drive to alignment.

Step 4: Remove the cotter pin

• Straighten and remove the cotter pin from the tie rod stud using needle-nose pliers and side cutters.

Step 5: Remove the tie rod end nut from the steering knuckle

• Remove the castle nut using a 19mm socket and ratchet.

Step 6: Separate the tie rod end from the knuckle

• Install a tie rod end puller (specialty) and tighten it until the taper “pops” free.
• If needed, tap the knuckle boss (the thick area around the stud) with a hammer (16 oz) while tension is on the puller.
• Hit the knuckle, not the stud threads.

Step 7: Loosen the jam nut

• Hold the tie rod end and loosen the jam nut using a 24mm open-end wrench.
• Back the jam nut away a few turns, but do not remove it.

Step 8: Remove the old outer tie rod end

• Unscrew the outer tie rod end by hand (or carefully using the 24mm open-end wrench on the flats, if equipped).
• Count the exact number of turns it takes to remove it (example: 17 turns). Write this number down.

Step 9: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted using your hands.
• Align the stud with the steering knuckle and insert it fully into the tapered hole.

Step 10: Tighten the tie rod end nut and install a new cotter pin

• Tighten the castle nut using a torque wrench and 19mm socket: Torque to 91 Nm (67 ft-lbs).
• If the cotter pin hole doesn’t line up, tighten slightly until it aligns (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 11: Tighten the jam nut

• Hold the tie rod end and tighten the jam nut using a 24mm open-end wrench.
• Tighten to: Torque to 100 Nm (74 ft-lbs).

Step 12: Reinstall the wheel and lower the truck

• Reinstall the wheel using a 21mm socket and ratchet.
• Lower the truck off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench and 21mm socket: Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and check for any binding or odd noises.
• Test drive slowly and confirm the steering wheel is close to centered and the truck tracks straight.
• Schedule a front-end alignment as soon as possible (tie rod changes affect toe).
• If the new tie rod has a grease fitting, add grease using the correct grease until the boot just starts to swell (do not overfill).

---

💰 DIY vs Shop Cost

Shop Cost: $180-$450 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only)

You Save: $140-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
