🔧 CX-5 - Outer Tie Rod End Replacement

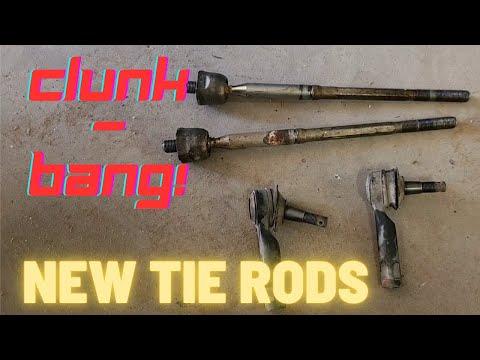

The outer tie rod end connects your steering rack (through the inner tie rod) to the steering knuckle. Replacing it fixes looseness/clunking and restores safe steering, but it will change toe (alignment) if not set carefully.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (plus alignment)

---

⚠️ Safety & Precautions

• ⚠️ Support the CX-5 on jack stands; never rely on a jack.
• ⚠️ After replacement, get a professional alignment ASAP to prevent tire wear and poor handling.
• ⚠️ If you use a hammer near the knuckle, protect threads and wear eye protection.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 Nm range)
• Combination wrench set (14mm–22mm)
• Pliers
• Paint marker
• Tape measure (metric or inch)
• Penetrating oil
• Wire brush
• Tie rod end puller (specialty)
• Cotter pin puller (specialty)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin (tie rod end) - Qty: 1
• Thread locker (medium strength) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly using a 21mm socket and breaker bar.
• Spray penetrating oil on the tie rod end jam nut and the stud/nut at the knuckle; let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Get the wheel off and access the tie rod end

• Lift the front corner with a floor jack (rated 3-ton minimum) at the proper jacking point and set it on jack stands (rated 3-ton minimum).
• Remove the wheel using a 21mm socket.

Step 2: Mark your “baseline” alignment

• Use a paint marker to mark the position of the jam nut relative to the outer tie rod end.
• Measure from a fixed point (for example, the end of the inner tie rod threads to the outer tie rod end housing) using a tape measure, and write it down.
• This helps you drive to the alignment shop.

Step 3: Loosen the jam nut

• Hold the inner tie rod with an appropriately sized combination wrench.
• Turn the jam nut counterclockwise using an appropriately sized combination wrench to break it loose (do not move it far yet).

Step 4: Remove the cotter pin and the tie rod end nut

• Straighten and remove the cotter pin using pliers or a cotter pin puller (specialty).
• Remove the tie rod end nut with an appropriately sized socket or combination wrench.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud pops free from the knuckle.
• If it’s stubborn, apply more penetrating oil and use the puller again.
• Puller is safest for the rubber boot.

Step 6: Remove the old tie rod end (count turns)

• Spin the outer tie rod end off the inner tie rod by hand.
• Count the exact number of turns it takes to remove it, and write the number down.

Step 7: Install the new tie rod end

• Thread the new outer tie rod end on by the same number of turns you counted, until it seats close to your paint mark/measurement.
• Apply a small amount of thread locker (medium strength) to the jam nut threads if your replacement instructions call for it (many do not; follow the part’s guidance).

Step 8: Attach the stud to the knuckle and torque fasteners

• Insert the tie rod end stud into the steering knuckle.
• Install the new nut and tighten with a torque wrench to the Mazda specification for your CX-5. Torque to OEM spec.
• Install a new cotter pin using pliers after aligning the nut’s castellations (never loosen the nut to align; tighten slightly to align).

Step 9: Tighten the jam nut

• Hold the inner tie rod with a combination wrench.
• Tighten the jam nut against the outer tie rod end using a torque wrench (or wrench if access is limited) to Mazda specification. Torque to OEM spec.

Step 10: Reinstall the wheel

• Install the wheel and snug the lug nuts using a 21mm socket.
• Lower the CX-5 off the stands using a floor jack (rated 3-ton minimum).
• Tighten the lug nuts in a star pattern with a torque wrench. Torque to OEM spec.

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock to confirm smooth movement and no binding.
• Test-drive slowly and listen for clunks; steering should feel stable.
• Get a 4-wheel alignment as soon as possible (same day if you can).
• Recheck for looseness and re-inspect the cotter pin after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment)

DIY Cost: $40-$120 (parts only, alignment extra)

You Save: $130-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
