🔧 Grand Cherokee - Outer Tie Rod End Replacement

The outer tie rod end connects your steering rack to the steering knuckle and lets the front wheels steer. Replacing it restores safe steering and prevents uneven tire wear, but you’ll still need a professional alignment afterward.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours (one side)

---

⚠️ Safety & Precautions

• 🛑 Support your Grand Cherokee with jack stands; never rely on a jack.
• 🛞 Chock the rear wheels and keep the steering wheel straight.
• 🔥 Let brakes/rotors cool before working near them.
• 🔩 A wheel alignment is required after tie rod work to avoid rapid tire wear.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket (22mm)
• Breaker bar (1/2")
• Torque wrench (10–250 ft-lbs range)
• Socket set (metric)
• Wrench set (metric)
• Needle-nose pliers
• Tie rod end puller (specialty)
• Paint marker
• Tape measure
• Penetrating oil
• Wire brush
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Outer tie rod end - Qty: 1
• New cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts slightly using a 22mm socket and breaker bar before lifting.
• Use a paint marker to mark the relationship between the tie rod end and the jam nut so you can reinstall close to the old setting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a floor jack (rated 3-ton minimum) to lift at the correct front jacking point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).
• Remove the wheel using a 22mm socket.

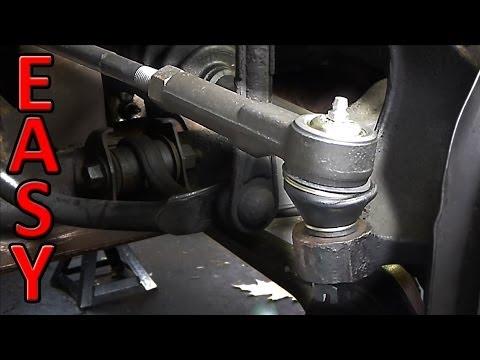

Step 2: Locate the outer tie rod end

• Find the tie rod end where it bolts into the steering knuckle.
• Clean the threads and jam nut area using a wire brush, then spray penetrating oil.
• Clean threads make adjustment much easier.

Step 3: Record the current adjustment

• Measure from a fixed point (for example, the center of the grease fitting or end of the threads) using a tape measure, and write it down.
• Mark the jam nut and tie rod using a paint marker.
• This helps you reinstall close enough to drive to an alignment shop.

Step 4: Remove the cotter pin and loosen the tie rod nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Loosen (do not fully remove yet) the tie rod end nut using the correct metric socket and breaker bar.

Step 5: Separate the tie rod end from the steering knuckle

• Install a tie rod end puller (specialty) and tighten it until the stud “pops” free.
• Then remove the nut fully using a metric socket and pull the tie rod end out of the knuckle.
• Tie rod end puller definition: a clamp-style tool that presses the stud out without hammering the knuckle.

Step 6: Loosen the jam nut

• Hold the inner tie rod with an appropriate metric wrench if needed, and loosen the jam nut using a metric wrench.
• Do not change the inner tie rod length more than necessary.

Step 7: Remove the old outer tie rod end

• Unscrew the outer tie rod end by hand.
• Count the exact number of turns it takes to remove it (example: 17 turns) and write it down.
• This “turn count” helps keep your toe setting close.

Step 8: Install the new outer tie rod end

• Screw the new tie rod end on the same number of turns you counted, by hand.
• Line up your paint marker marks as closely as possible.
• Snug the jam nut using a metric wrench.

Step 9: Attach the tie rod end to the steering knuckle

• Insert the stud into the knuckle.
• Install the nut and tighten using a torque wrench and correct metric socket.
• Torque to the spec listed on your replacement part/OE service data (this fastener spec varies by hardware style; don’t guess).
• Install a new cotter pin once the nut is properly torqued and the castellations align.

Step 10: Tighten the jam nut

• Hold the tie rod end with a metric wrench and tighten the jam nut using a torque wrench and appropriate crowsfoot wrench if you have one, or a metric wrench if not.
• Torque to the spec listed on your replacement part/OE service data.

Step 11: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• Start your Grand Cherokee and turn the steering wheel lock-to-lock while parked to confirm smooth movement and no binding.
• Test drive slowly and listen for clunks, then recheck the jam nut area visually.
• Schedule a 4-wheel alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor + alignment)

DIY Cost: $40-$150 (parts only, one side)

You Save: $100-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
