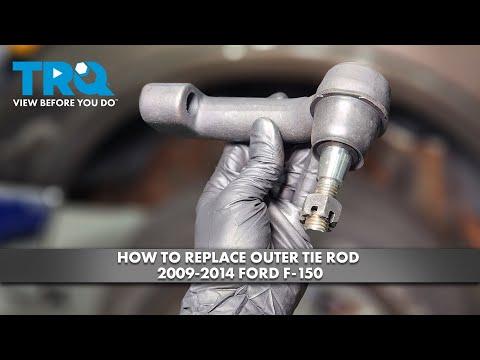

🔧 Tie Rod End - Replacement

Assumption: This covers the front outer tie rod end on your F-150.

The tie rod end connects the steering rack to the front wheel and lets the wheel turn smoothly. If it is loose or worn, you may get steering play, tire wear, or clunking over bumps.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• Work on level ground and set the parking brake.
• Chock the rear wheels before lifting the front.
• Support the truck with jack stands; do not rely on a floor jack alone.
• The steering wheel should stay centered while one side is apart to help protect the clock spring.
• After replacement, a professional wheel alignment is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm lug wrench
• 18mm socket
• 18mm wrench
• 15mm wrench
• Pickle fork tie rod separator (specialty)
• Torque wrench
• Tape measure
• Marker or paint pen
• Pliers
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Cotter pin - Qty: 1
• Thread locking nut - Qty: 1

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Loosen the front lug nuts slightly before lifting.
• Measure the exposed threads or count turns on the old part before removal. This helps preserve the alignment close enough to drive to the shop.
• Apply penetrating oil to the jam nut and tie rod end threads if they are rusty.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the truck

• Use the floor jack to lift the front of the truck.
• Place jack stands under the frame and lower the truck onto them.
• Remove the front wheel with the 21mm lug wrench.

Step 2: Mark the old tie rod position

• Use a marker or paint pen to mark the tie rod end location.
• Count the number of turns it takes to remove the old tie rod end, or measure the exposed threads with a tape measure.
• Keep the steering wheel centered.

Step 3: Remove the cotter pin and nut

• Use pliers to straighten and pull out the cotter pin from the tie rod end stud.
• Remove the castle nut with an 18mm socket and torque wrench or 18mm wrench if access is tight.

Step 4: Separate the tie rod end from the knuckle

• Use a pickle fork tie rod separator (specialty) to break the taper free from the steering knuckle.
• Hit the fork with a hammer if needed until the stud pops loose.
• Support the knuckle so it does not hang.

Step 5: Remove the old tie rod end

• Loosen the jam nut with an 18mm wrench.
• Unscrew the tie rod end from the inner tie rod, counting the turns as you remove it.

Step 6: Install the new tie rod end

• Thread the new tie rod end onto the inner tie rod the same number of turns as the old one.
• Install the new jam nut and snug it with the 18mm wrench.
• Insert the stud into the steering knuckle.
• Install the new nut and tighten it with the torque wrench.
• Torque to 52 Nm (38 ft-lbs).

Step 7: Install the cotter pin

• Tighten the nut slightly more only if needed to line up the cotter pin hole.
• Insert the new cotter pin with pliers and bend the ends over.
• Never reuse an old cotter pin.

Step 8: Reassemble the wheel

• Reinstall the wheel and tighten the lug nuts with the 21mm lug wrench.
• Lower the truck and then finish tightening the lug nuts with the torque wrench.
• Torque to 204 Nm (150 ft-lbs).

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock to check for smooth movement.
• Inspect the tie rod end and jam nut to make sure nothing is loose.
• Drive slowly at first and confirm the steering wheel is centered.
• Schedule a front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $25-$60 (parts only)

You Save: $155-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
