Assumption: This procedure covers the front outer tie rod end on your F-150. Replace in pairs if both sides show wear.

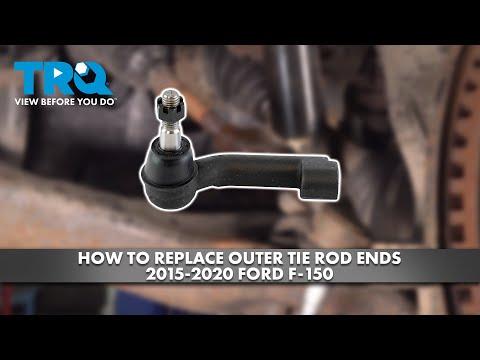

🔧 Tie Rod End - Replacement

The outer tie rod end connects the steering rack to the front wheel knuckle. If it is loose, worn, or torn, you can get steering play, uneven tire wear, or clunking over bumps. After replacement, the front end must be aligned.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work on level ground and set the parking brake.
• Use jack stands; never rely on the jack alone.
• Keep hands clear of the steering knuckle while separating the joint.
• Do not drive far after replacement until the alignment is checked.
• No battery disconnect is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 24mm wrench
• Torque wrench
• Needle-nose pliers
• Pry bar
• Hammer
• Tie rod end puller (specialty)
• Paint marker
• Tape measure

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front outer tie rod end - Qty: 1
• Outer tie rod end jam nut - Qty: 1
• Outer tie rod end cotter pin - Qty: 1

---

📋 Before You Begin

• Park on level ground with the steering wheel centered.
• Loosen the front wheel lug nuts slightly before lifting the truck.
• Turn the steering wheel so you can reach the tie rod end easily.
• Mark the old tie rod position before removal to help preserve toe setting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the truck

• Use a floor jack to lift the front of the truck at a proper lift point.
• Support it with jack stands under the frame.
• Remove the front wheel with a 21mm socket.

Step 2: Mark the old position

• Use a paint marker to mark the jam nut position on the inner tie rod.
• Count the exposed threads if visible.
• Small marks help get it close enough to drive to alignment.

Step 3: Remove the cotter pin and castle nut

• Use needle-nose pliers to remove the cotter pin from the stud.
• Use a 24mm wrench to remove the castle nut from the tie rod end stud.
• If the stud spins, place light upward pressure on the stud with a jack or use the puller to hold it.

Step 4: Separate the tie rod end from the knuckle

• Use a tie rod end puller (specialty) to break the taper loose from the steering knuckle.
• If needed, tap the knuckle boss with a hammer to help release the taper.
• Do not hammer directly on the stud threads.

Step 5: Remove the outer tie rod end

• Use a 24mm wrench to loosen the jam nut.
• Count the turns as you unscrew the old tie rod end from the inner tie rod.
• This count helps keep the toe close enough for a short drive to alignment.

Step 6: Install the new tie rod end

• Thread the new outer tie rod end onto the inner tie rod the same number of turns.
• Install the jam nut finger-tight for now.
• Insert the stud into the steering knuckle.

Step 7: Tighten the stud nut

• Use a 24mm wrench to tighten the new castle nut.
• Torque to 90 Nm (66 ft-lbs).
• Continue tightening only enough to line up the cotter pin hole if needed.
• Install a new cotter pin and bend the ends over with needle-nose pliers.

Step 8: Tighten the jam nut

• Use a 24mm wrench to hold the inner tie rod and tighten the jam nut.
• Torque to 75 Nm (55 ft-lbs).
• Make sure the tie rod end did not rotate while tightening.

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-tighten the lug nuts.
• Lower the truck using the floor jack.
• Use a torque wrench with a 21mm socket to tighten the lug nuts.
• Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock to check for binding or noise.
• Inspect the tie rod end for any play or looseness.
• Drive only a short distance to a wheel alignment shop.
• Get a professional front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor + alignment)

DIY Cost: $35-$90 (parts only)

You Save: $215-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
