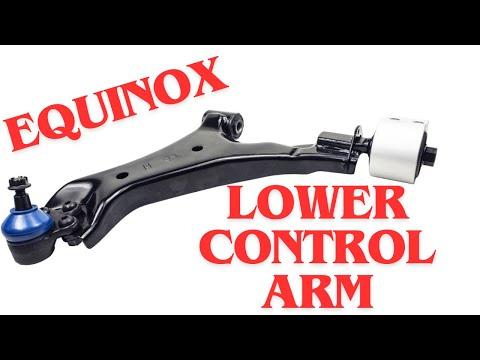

🔧 Front Lower Control Arm Replacement

Assumption: this covers the front lower control arms, which are the common service item on your Equinox when people say “control arms.” The front suspension uses press-fit joints and alignment-sensitive hardware, so the arm should be replaced carefully and the vehicle should be aligned afterward.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Support the vehicle securely on jack stands before working underneath.
• Do not work under a vehicle supported only by a floor jack.
• Front suspension bolts are alignment-critical; the vehicle needs a professional alignment after the repair.
• Torque-to-yield fasteners may be used on some suspension joints; replace any one-time-use bolts and nuts if removed.
• If the lower ball joint is separating from the knuckle, keep hands clear of pinch points.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Ratchet
• Torque wrench
• 21mm socket
• 18mm socket
• 15mm socket
• 14mm socket
• 18mm wrench
• Breaker bar
• Penetrating oil
• Ball joint separator (specialty)
• Pry bar
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm - Qty: 2
• Front lower control arm bolts and nuts - Qty: 1 set
• Front lower control arm ball joint nut - Qty: 2

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake.
• Chock the rear wheels.
• Loosen the front wheel lug nuts before lifting the vehicle.
• Raise the front and support it with jack stands under approved lift points.
• Replace control arms in pairs for even handling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheels

• Use a 21mm socket to remove the front wheel lug nuts.
• Set the wheels aside.

Step 2: Soak the fasteners

• Spray penetrating oil on the control arm mounting bolts and ball joint nut.
• Let it sit for a few minutes.

Step 3: Disconnect the lower ball joint from the knuckle

• Use an 18mm socket and 18mm wrench to remove the lower ball joint nut.
• Use a ball joint separator (specialty) to separate the ball joint from the steering knuckle.
• Do not hammer on the knuckle.

Step 4: Remove the rear control arm bolt

• Use an 18mm socket and breaker bar to remove the rear mounting bolt.
• Mark the bolt orientation with a paint marker if needed.

Step 5: Remove the front control arm bolt

• Use a 15mm socket or 18mm socket to remove the front mounting bolt, depending on the fastener fitted to the vehicle.
• Support the arm with one hand so it does not drop suddenly.

Step 6: Remove the control arm

• Lower and remove the control arm from the subframe.
• Use a pry bar if the arm is stuck in the bracket.

Step 7: Install the new control arm

• Position the new control arm in place.
• Install the front and rear mounting bolts finger-tight first.
• Install the ball joint stud into the knuckle.

Step 8: Tighten the ball joint nut

• Use an 18mm socket and 18mm wrench to tighten the ball joint nut.
• Torque to 70 Nm (52 ft-lbs).

Step 9: Tighten the control arm mounting bolts

• Use the correct socket for each bolt and snug them only for now.
• Final torque must be applied at normal ride height to avoid bushing preload.
• Lower the vehicle so the suspension sits at normal ride height, or support the control arm with a jack at ride height.
• Torque front and rear control arm bolts to 175 Nm (129 ft-lbs).

Step 10: Reinstall the wheels

• Install the wheels and hand-tighten the lug nuts.
• Lower the vehicle and use a 21mm socket to tighten the lug nuts in a star pattern.
• Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• Check that all fasteners are fully torqued.
• Start the vehicle and turn the steering wheel lock-to-lock.
• Listen for clunks or rubbing noises.
• Schedule a front-end alignment as soon as possible.
• Test drive slowly at first and recheck for loose hardware.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $180-$400 (parts only)

You Save: $320-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
