🔧 Camry - Front Lower Ball Joint Replacement

On your Camry, the front lower ball joint connects the steering knuckle to the lower control arm. Replacing a worn ball joint restores safe steering and prevents clunks, uneven tire wear, and loss of control if it fails.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours (both sides)

Assumption: Most Camry setups use a bolt-on front lower ball joint; if yours is non-serviceable, replace the complete lower control arm (includes the ball joint).

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands before working underneath.
• ⚠️ Never rely on a floor jack alone.
• ⚠️ Keep hands clear when separating the ball joint; parts can “pop” loose suddenly.
• ⚠️ If your Camry has a plastic under-cover, remove it carefully to avoid breaking clips.
• ⚠️ No high-voltage service is required for this job, but keep tools away from orange high-voltage cables.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2" (20-200 ft-lbs range)
• Torque wrench 3/8" (10-80 ft-lbs range)
• Socket set (10mm-24mm)
• Wrench set (10mm-24mm)
• 19mm socket
• 17mm socket
• 14mm socket
• 12mm socket
• Needle-nose pliers
• Diagonal cutters
• Ball joint separator tool (specialty)
• Pry bar
• Hammer (16 oz)
• Penetrating oil
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2 (Replace in pairs)
• Ball joint cotter pin - Qty: 2
• Lower control arm assembly - Qty: 2 (only if your ball joint is non-serviceable)
• Replacement under-cover clips - Qty: As needed

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1/2 turn using a 19mm socket and breaker bar before lifting.
• Spray penetrating oil on the ball joint nut and bolts using penetrating oil.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack at the front center jack point.
• Set the car down onto jack stands placed at the pinch welds/subframe points.
• Remove both front wheels using a 19mm socket.

Step 2: Remove the lower splash shield (if equipped)

• Remove fasteners using a 10mm socket and trim clips with needle-nose pliers.
• Tip: Bag clips by location.

Step 3: Locate the lower ball joint

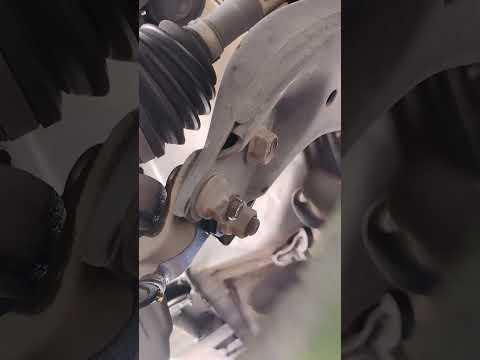

• The lower ball joint sits at the bottom of the steering knuckle and attaches to the lower control arm.
• A ball joint separator tool is a clamp-style tool that pushes the joint apart without hammering on the threads.

Step 4: Remove the ball joint stud nut and cotter pin

• Straighten and remove the cotter pin using needle-nose pliers and diagonal cutters.
• Remove the ball joint stud nut using a 17mm socket and breaker bar.

Step 5: Separate the ball joint from the steering knuckle

• Install the ball joint separator tool (specialty) on the joint and tighten it using a wrench set (10mm-24mm) until the stud pops free.
• If needed, strike the side of the knuckle (not the stud) with a hammer (16 oz) to help it release.
• Tip: Keep the nut threaded on a few turns.

Step 6A: If your ball joint is bolt-on, remove it from the control arm

• Remove the ball joint-to-control-arm bolts using a 14mm socket.
• Remove the ball joint from the control arm using a pry bar if it’s stuck.

Step 6B: If your ball joint is not serviceable, replace the complete lower control arm

• Support the control arm lightly with a floor jack.
• Remove the control arm mounting bolts using a 19mm socket and breaker bar.
• Remove the arm from the subframe and set it next to the new arm.
• Mark bolt positions (if slotted) using a paint marker.

Step 7: Install the new ball joint (or control arm)

• Position the new ball joint into the control arm and start bolts by hand.
• Tighten the ball joint-to-control-arm bolts using a torque wrench 3/8": Torque to 74 Nm (55 ft-lbs).
• Insert the ball joint stud into the steering knuckle.
• Install the new stud nut using a 17mm socket, then use a torque wrench 1/2": Torque to 118 Nm (87 ft-lbs).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 8: If you replaced the control arm, tighten bushings at ride height

• Reinstall the wheel using a 19mm socket, then lower the car until the suspension is supporting weight.
• Tighten the control arm mounting bolts using a torque wrench 1/2": Torque to 170 Nm (125 ft-lbs).
• Tip: Tightening at ride height prevents bushing twist.

Step 9: Reinstall splash shield and wheels

• Reinstall the splash shield using a 10mm socket.
• Install wheels and hand-tighten lug nuts using a 19mm socket.
• Lower the car fully, then torque lug nuts in a star pattern using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock with the car on the ground and listen for clicking/clunks.
• Road test at low speed first. Check for pulling, vibration, or steering off-center.
• Get a 4-wheel alignment as soon as possible, especially if you replaced a control arm.
• Recheck lug nut torque after 25-50 miles using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹20,000 (parts + labor, both sides)

DIY Cost: ₹3,000-₹12,000 (parts only, both sides)

You Save: ₹5,000-₹8,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 2-4 hours.

---
